SQUARE D

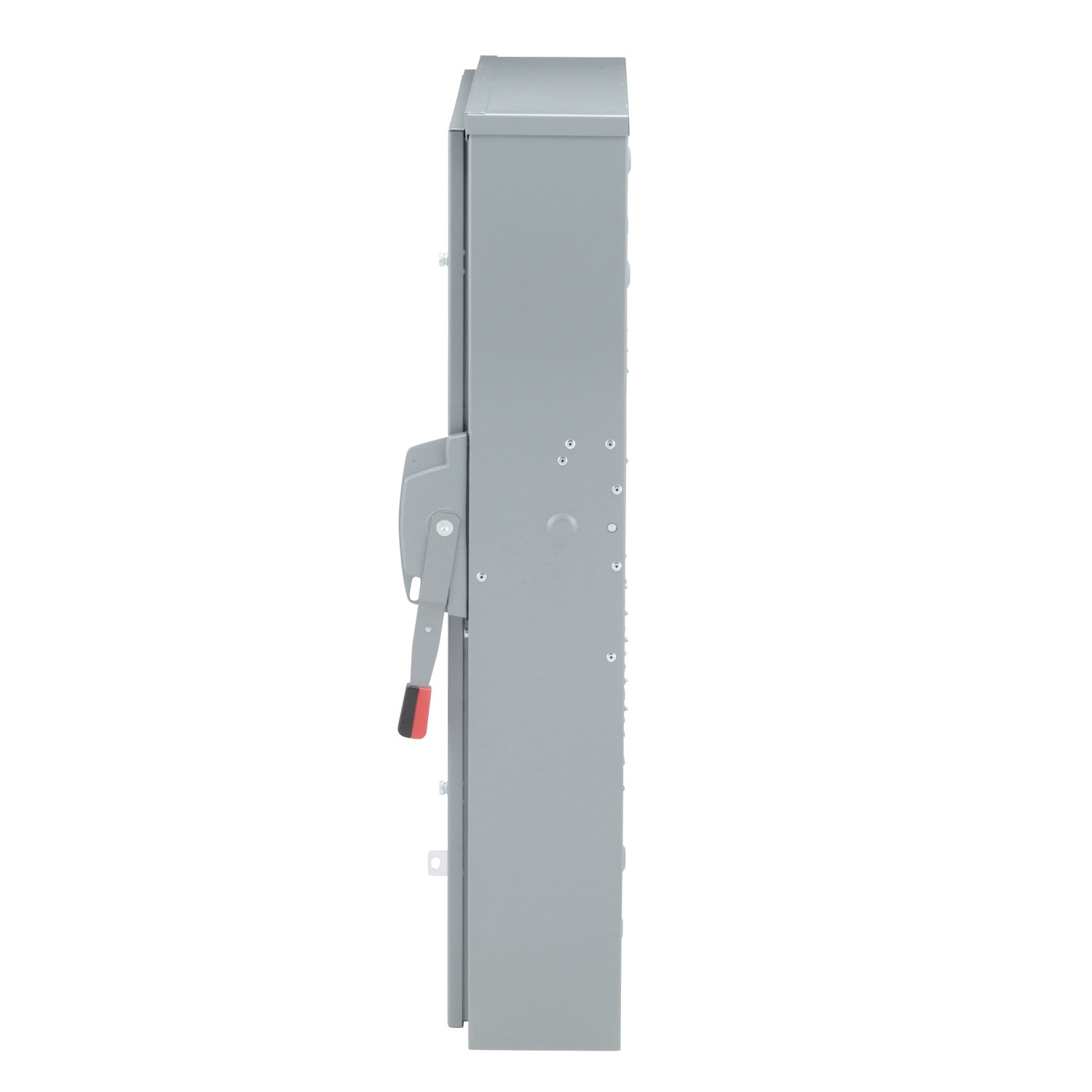

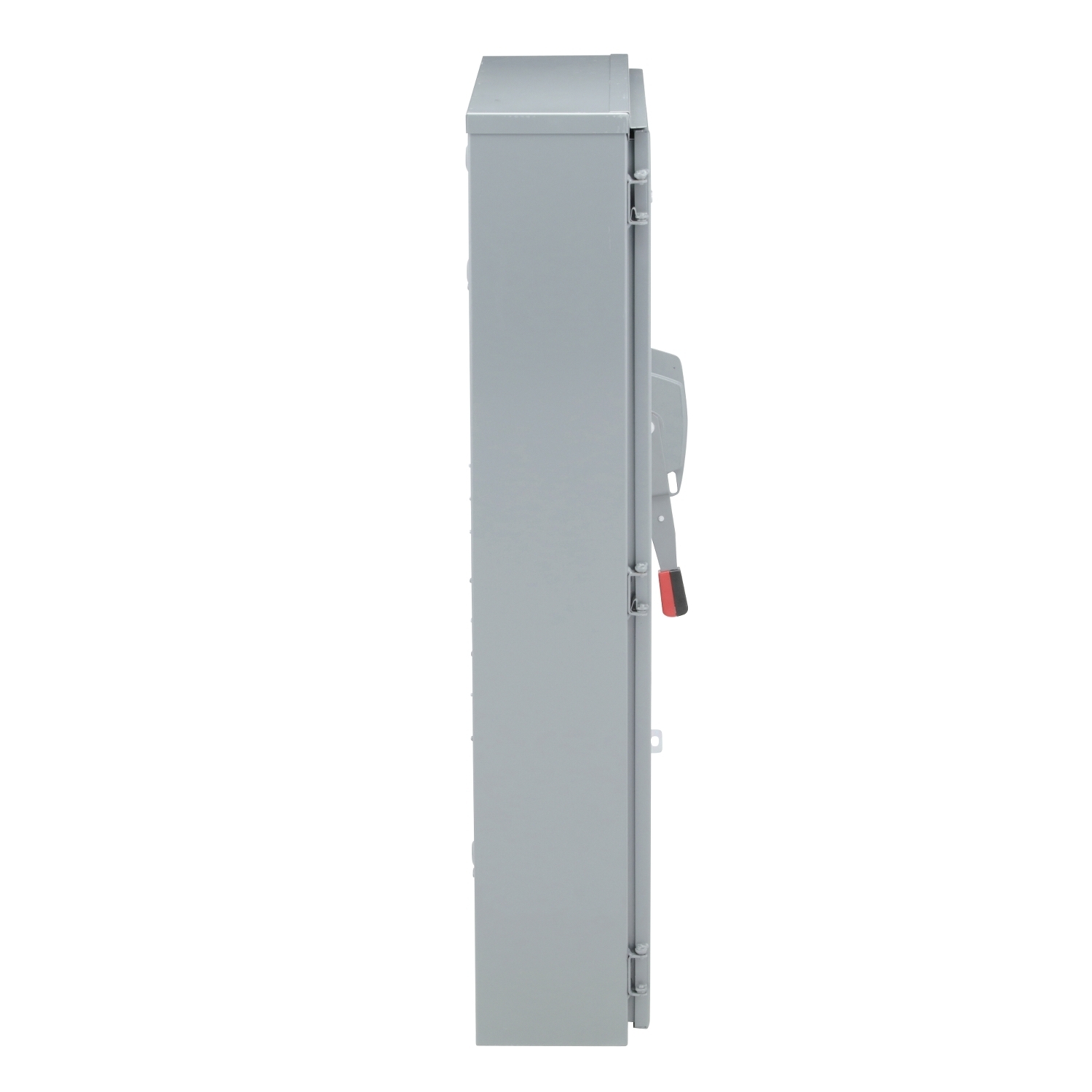

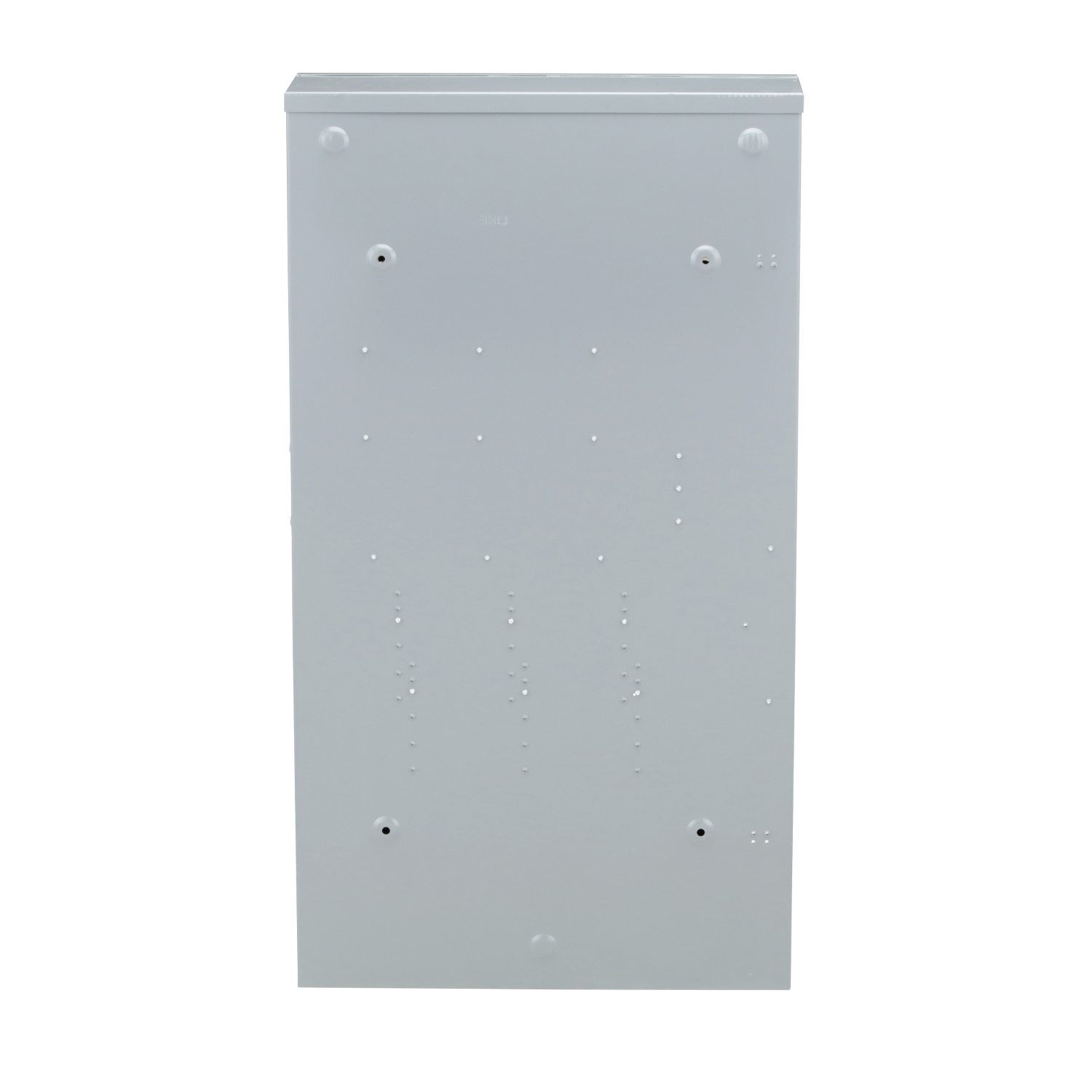

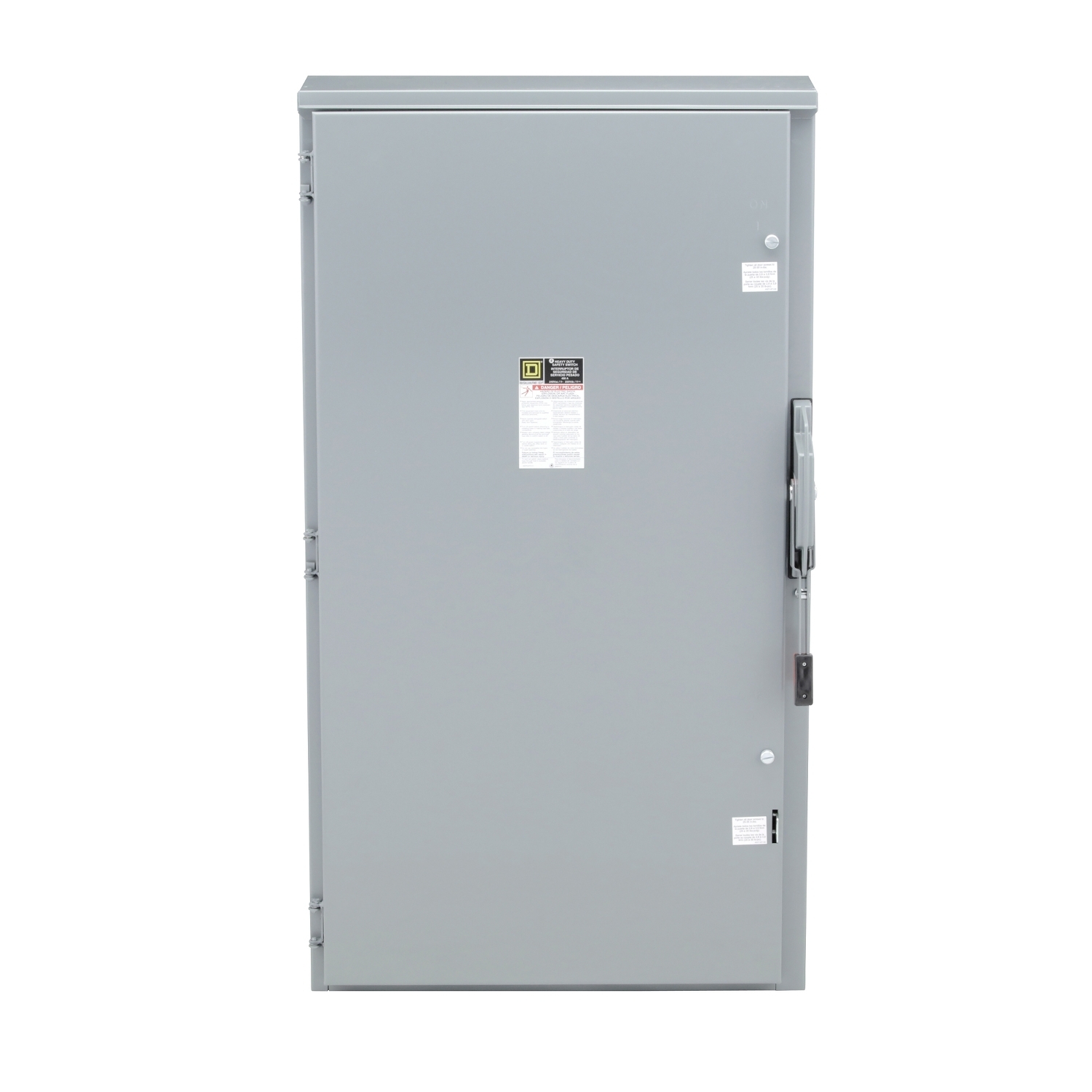

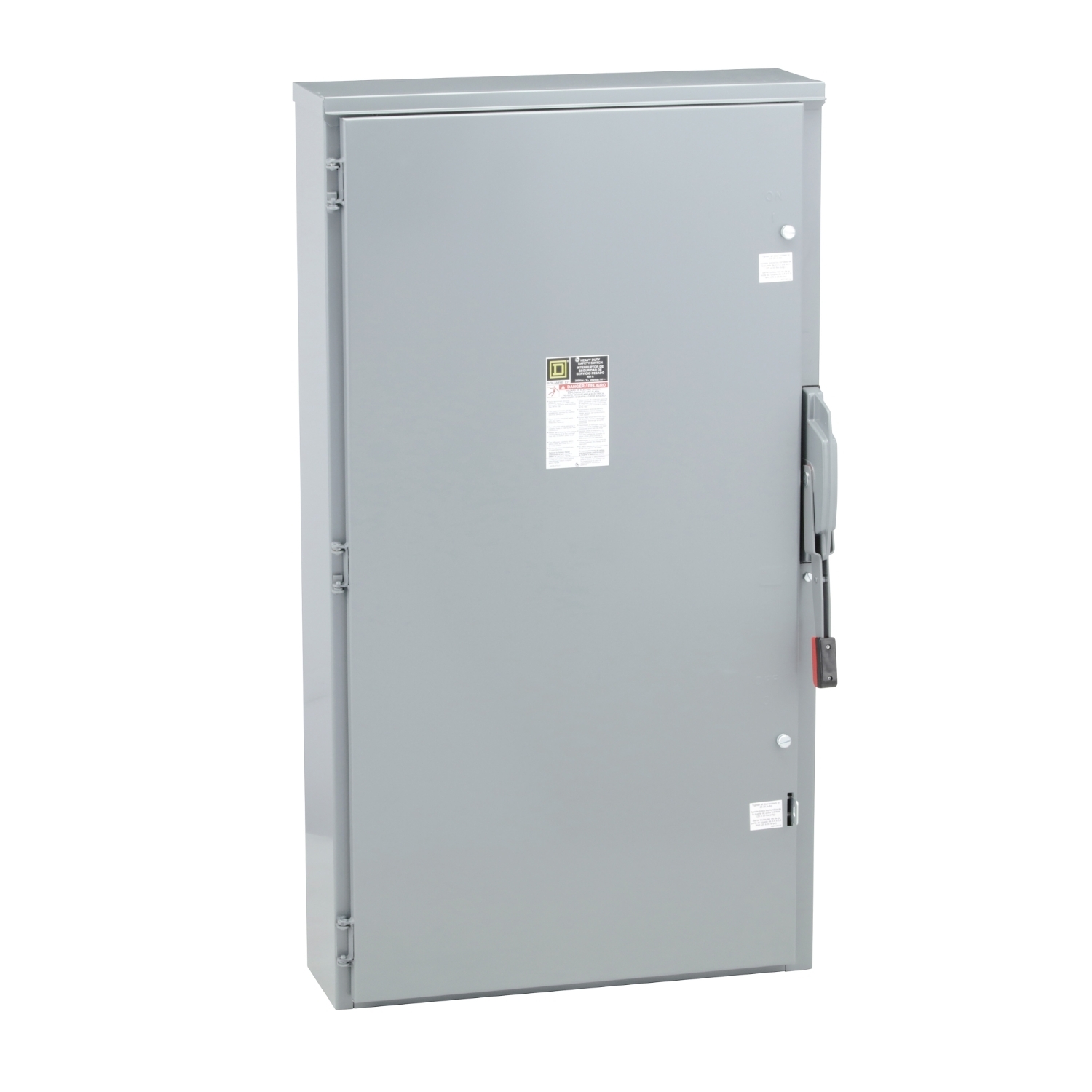

H325NR E5 Series Heavy Duty Fusible Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 240 V AC/250 V DC, 400 A, 50 hp, 125 hp, 3PST Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
H325NR
UPC:
785901451440
Item #:
117653

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of 240VAC & 250VDC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.

Manuals & Documentation
Catalog Number H325NR
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Fuse Type H or K;R or J
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364139&lang=en-us
UPC 785901451440
GTIN 00785901451440
Width 27.88
Width UOM Inch
Height 50.31
Height UOM Inch
Depth 10.13 IN
