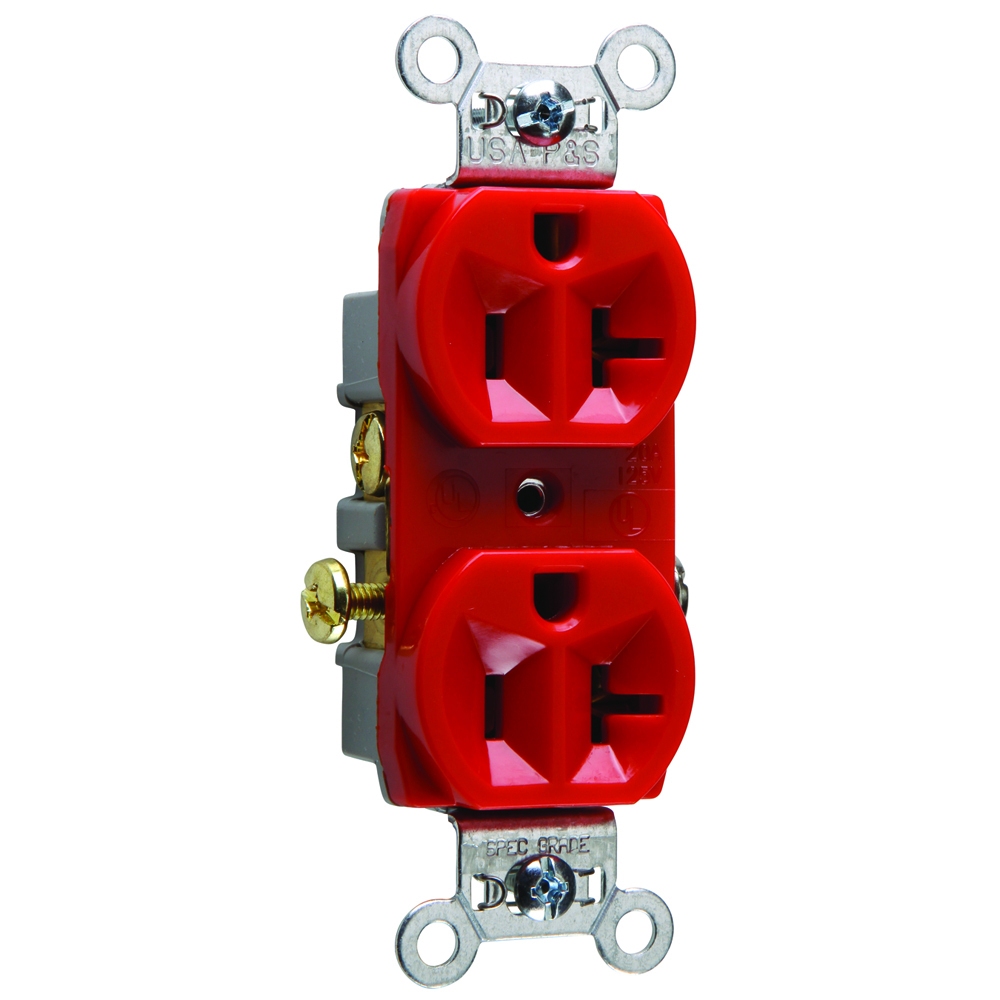

Commercial Spec Grade Duplex Receptacle, Side Wire 20A 125V

Catalog Number CR20RED
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Commercial
Color Red
Connection Side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Standard UL498, CSA C22.2 No. 42
UPC 785007180145
GTIN 00785007180145
Item Type Commercial Grade Receptacle
Size 1.322 L x .780 W x 3.281 H
Temperature Rating -40° - 50° C
Voltage Rating 125
Wire Size 14 - 10 AWG
