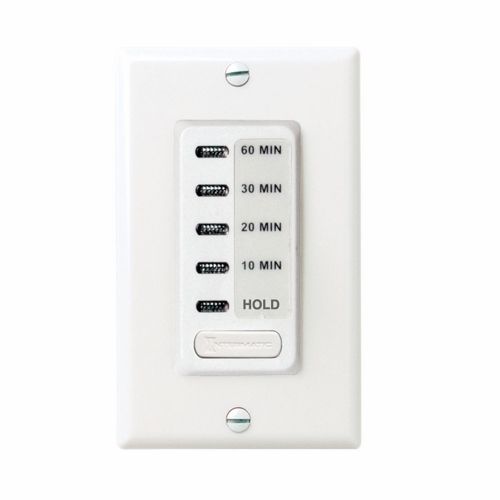

EI210 EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 V AC, 1/2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- EI210
- UPC:
- 078275095229
- Item #:
- 117027
EI210 EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 V AC, 1/2 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- EI210
- UPC:
- 078275095229
- Item #:
- 117027
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals & Documentation
| Catalog Number | EI210 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | China |
| Made in USA | No |
| Action | 1 x SPST |
| Amperage Rating | 15 |
| Application | Indoor, CFLs Lighting, LED Lighting, Fans, HVACR |
| Contact Configuration | 1 NO |
| Contact Rating | 8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater) |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Silent Operation, Single Button Time Selection, Timer Contacts shall Break Current at the End of Timed Cycle, 1 Year Warranty |
| Standard | cULus Listed, HVACR |
| UPC | 078275095229 |
| GTIN | 00078275095229 |
| Item Type | Electronic Countdown Auto Shut-Off In-Wall |
| Size | 2.79 HEIGHT X 1.75 WIDTH X 1.44 DEPTH IN, 70.86 HEIGHT X 44.45 WIDTH X 36.57 DEPTH MM |
| Operating Temperature | +32 to +122 DEG F, 0 to +50 DEG C |
| Timing Range | 10/20/30/60 MIN |
| Voltage Rating | 120 |
| Wattage | 1800 W |
