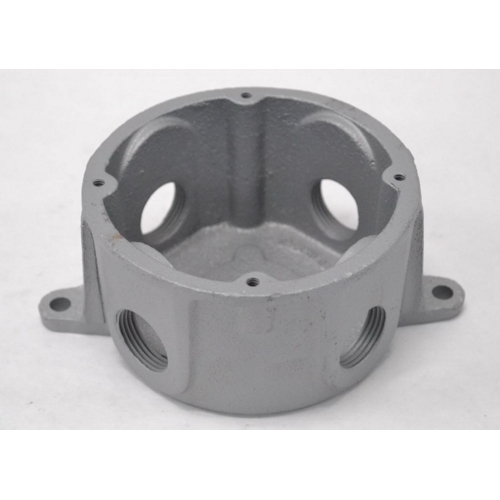

JBDX-100L Unilets Conduit Outlet Box With Mounting Lugs, 1 in Hub, Malleable Iron, Triple Coated
- MFR:
- Appleton Electric
- MFR #:
- JBDX-100L
- UPC:
- 781381464154
- Item #:
- 116459
JBDX-100L Unilets Conduit Outlet Box With Mounting Lugs, 1 in Hub, Malleable Iron, Triple Coated
- MFR #:
- JBDX-100L
- UPC:
- 781381464154
- Item #:
- 116459
UNILETS Outlet Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1 IN, Cable Entry: (4) 1 IN Tapped Openings, Knockouts: Yes, Height: 4-1/2 IN, Width: 6.13 IN, Depth: 2-1/16 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514A , UL File Number E2527, NEMA FB-1, For Use With Threaded Metal Conduit
Manuals & Documentation
| Catalog Number | JBDX-100L |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit |
| Cable Entry | (4) 1 IN Tapped Openings |
| Knockouts | Yes |
| Material | Malleable Iron |
| Special Features | Raintight when enclosed and gasketed with hub or blank covers; Furnished with internal ground screw and mounting lugs; Blind cover screw holes prevent conductor damage during installation, provide water-tightness; Furnished with four tapped holes and two close-up plugs; Serve as pulling fittings; Provide openings for splicing; Make straight connections and 90 DEG bends in conduit runs; Permit access to conductors for maintenance; Mounting hole: (2) 0.31 IN diameter |
| Standard | UL 514A , UL File Number E2527, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381464154 |
| GTIN | 00781381464154 |
| Item Type | Outlet Box |
| Length | 5.3000 |
| Length UOM | Inch |
| Width | 5.2000 |
| Width UOM | Inch |
| Height | 4.5000 |
| Height UOM | Inch |
| Weight | 2.760 |
| Weight UOM | Pounds |
| Size | 1 |
