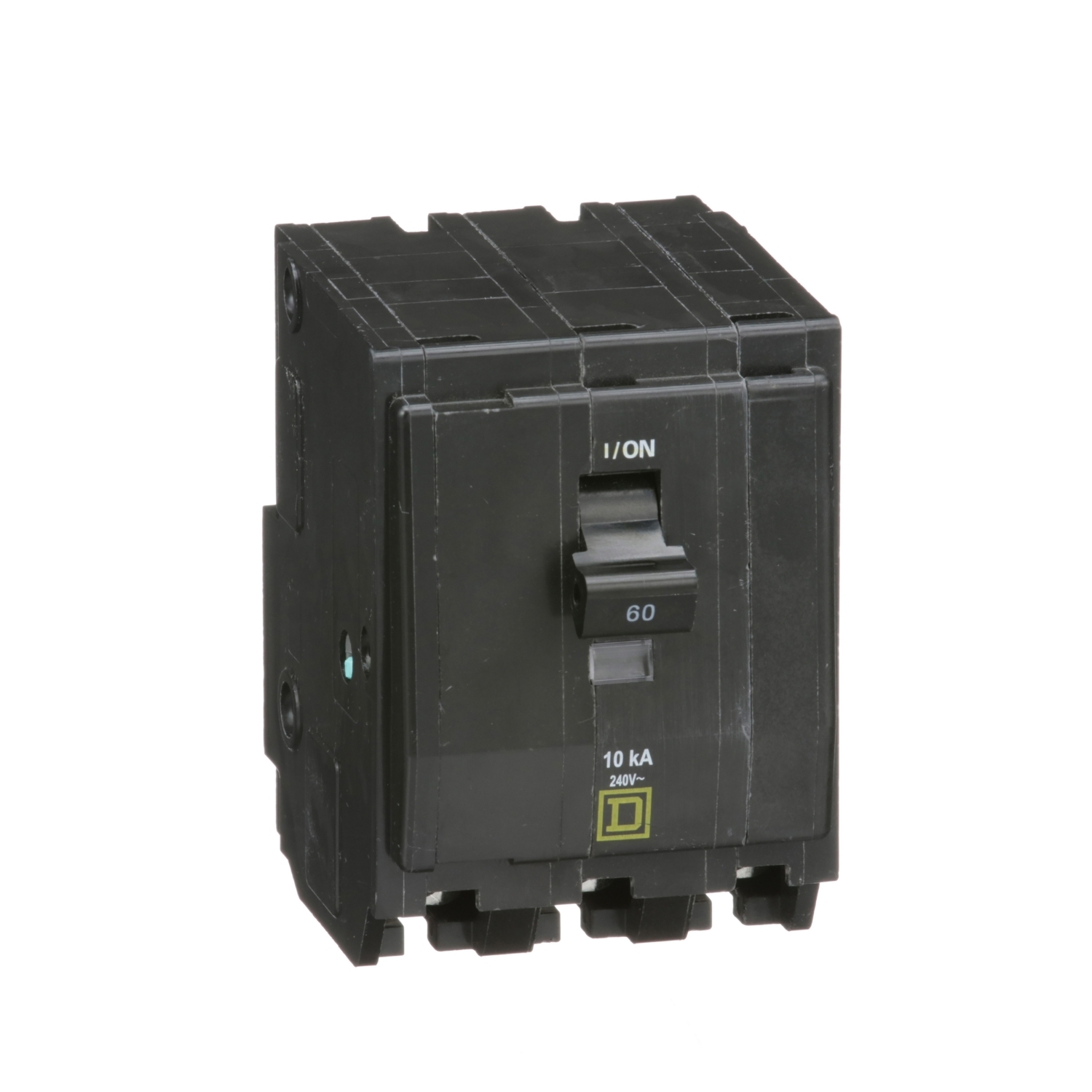

QO360 Standard 3-Pole Miniature Circuit Breaker, 240 V AC, 60 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- QO360
- UPC:
- 785901400844
- Item #:
- 116191
QO360 Standard 3-Pole Miniature Circuit Breaker, 240 V AC, 60 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- QO360
- UPC:
- 785901400844
- Item #:
- 116191
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Manuals & Documentation
| Catalog Number | QO360 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=400037&lang=en-us |
| UPC | 785901400844 |
| GTIN | 00785901400844 |
