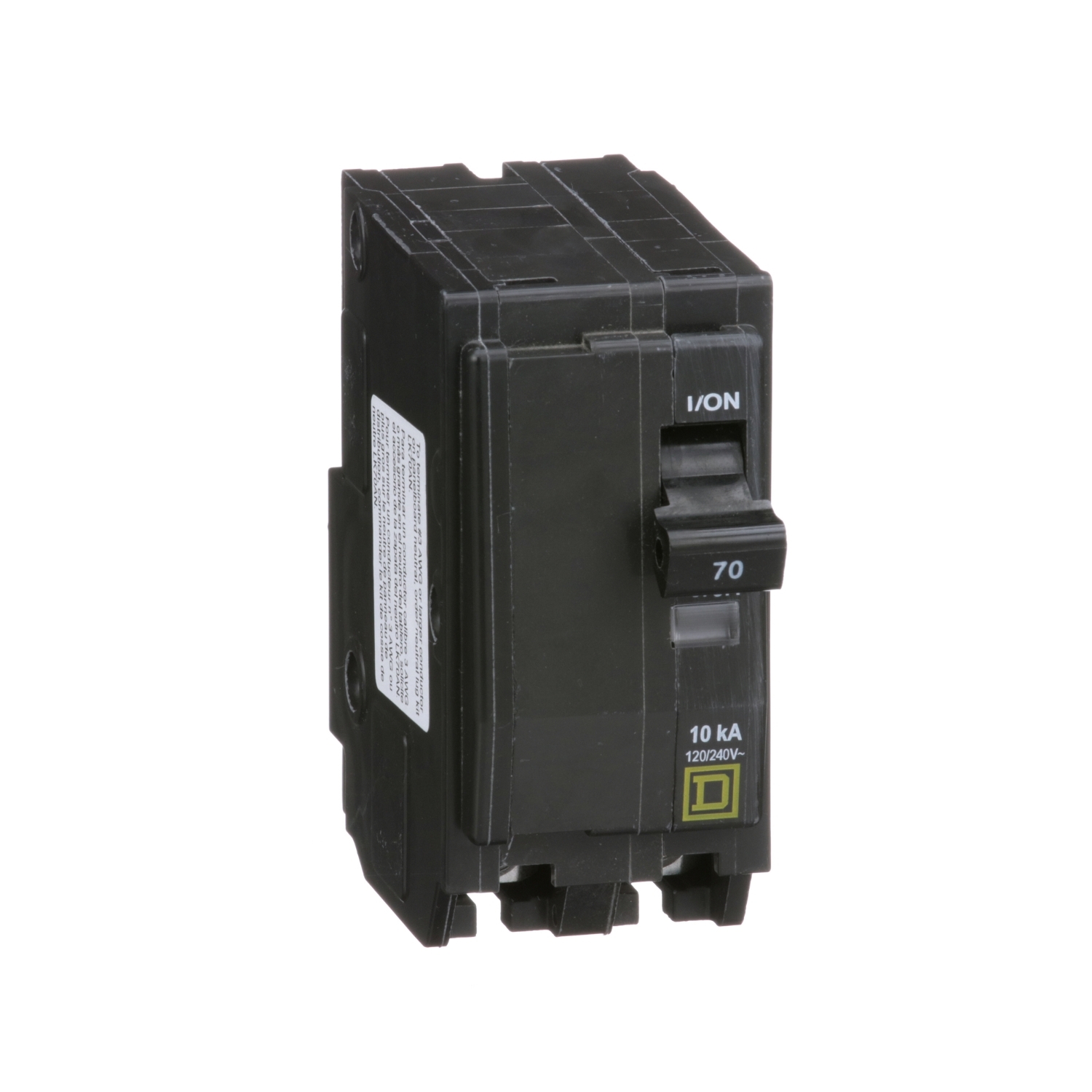

QO270 Standard Miniature Circuit Breaker, 120/240 V AC, 70 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- QO270
- UPC:
- 785901400585
- Item #:
- 115964
QO270 Standard Miniature Circuit Breaker, 120/240 V AC, 70 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
- MFR #:
- QO270
- UPC:
- 785901400585
- Item #:
- 115964
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Manuals & Documentation
| Catalog Number | QO270 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=399517&lang=en-us |
| UPC | 785901400585 |
| GTIN | 00785901400585 |
| Cross Reference Products | ABBInstall MP270|ABBInstall TBB270|Eaton BR270|Eaton BRH270|Eaton CH270|Eaton CUHBR270|GEIndust GTHQL2170|GEIndust THQL2170|Grainger 1D317|Grainger 1D360 |
