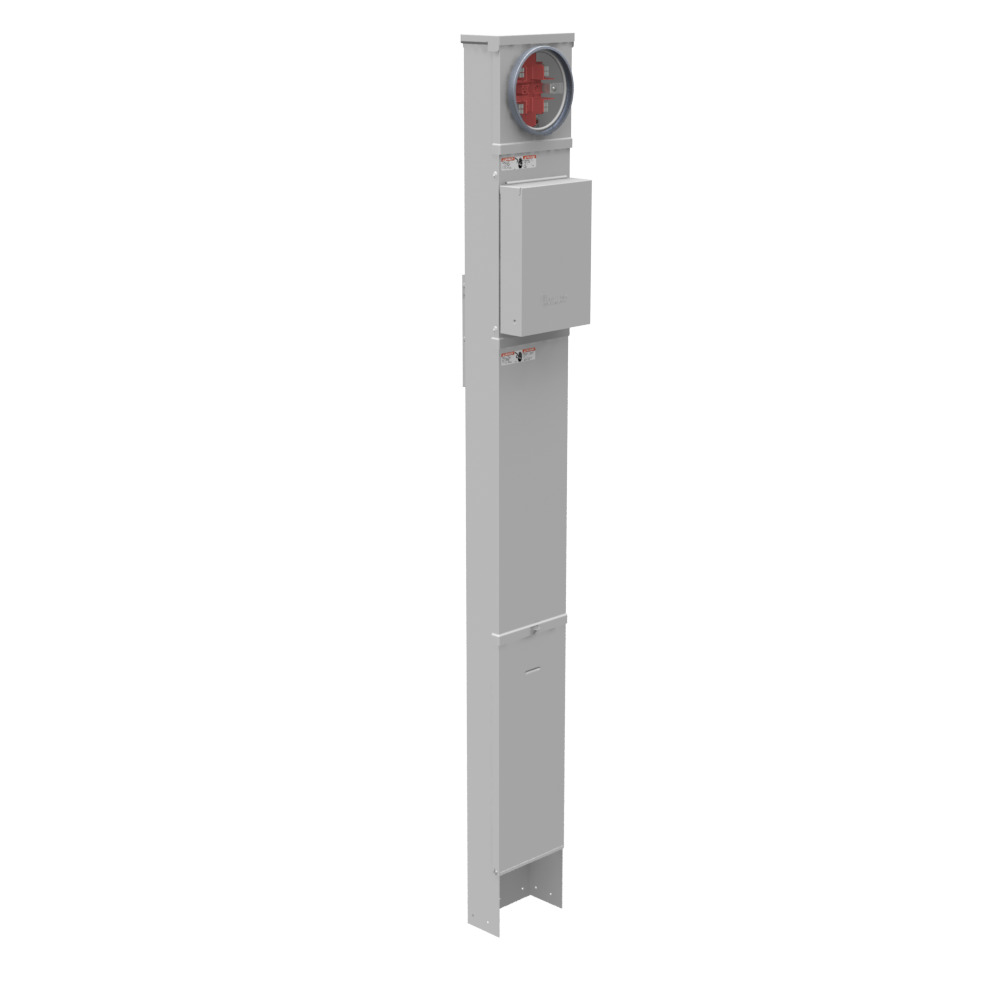

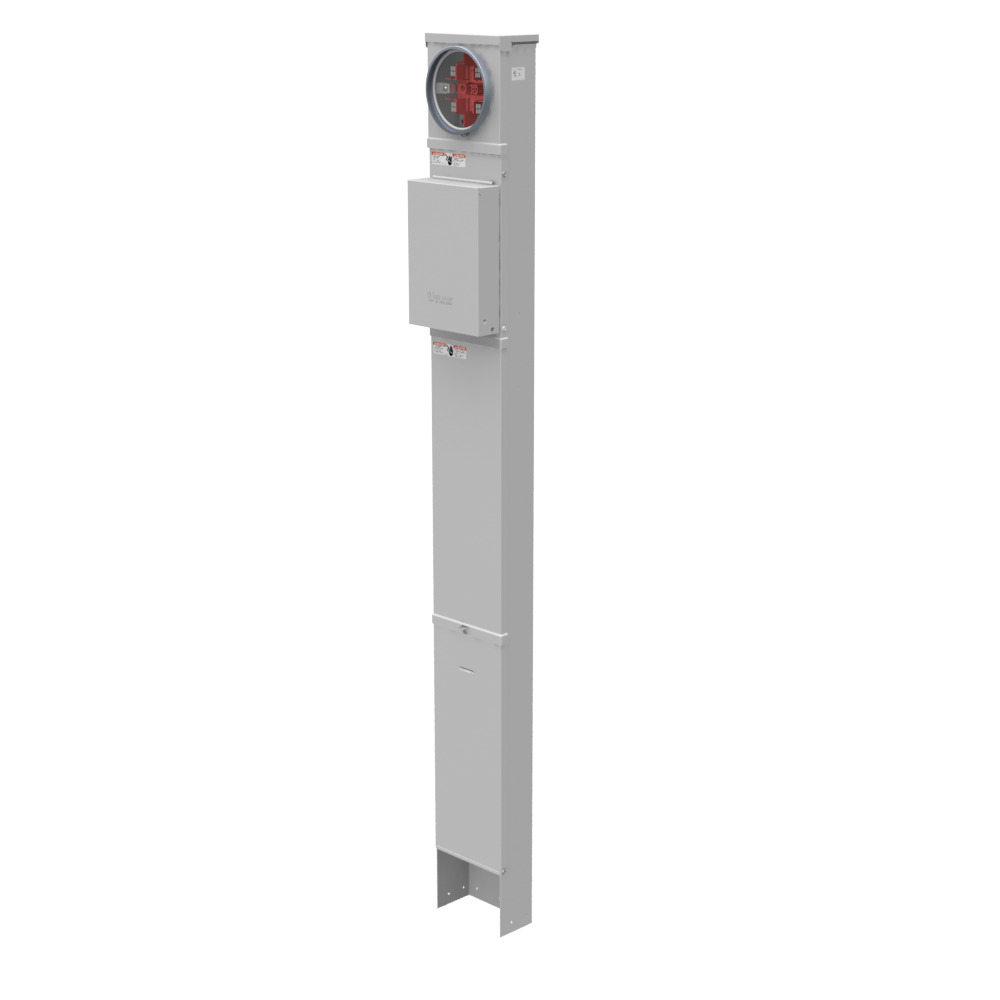

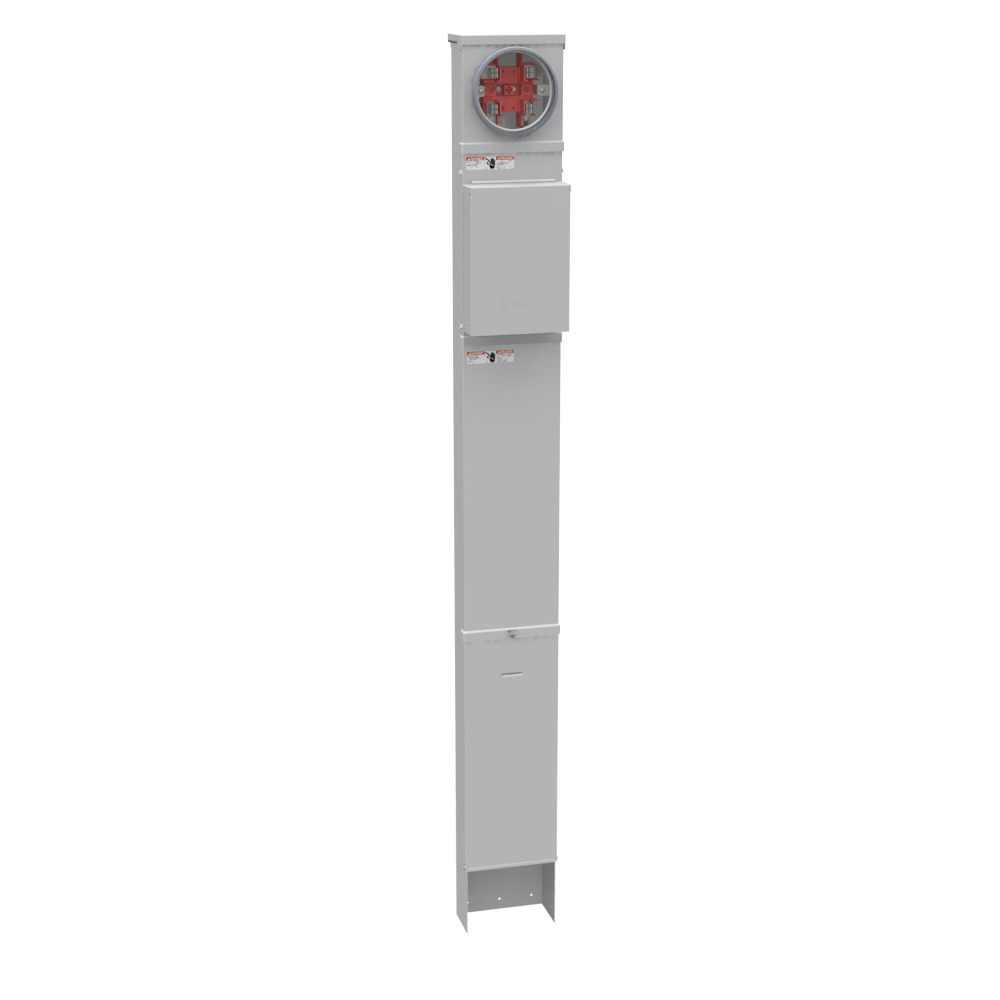

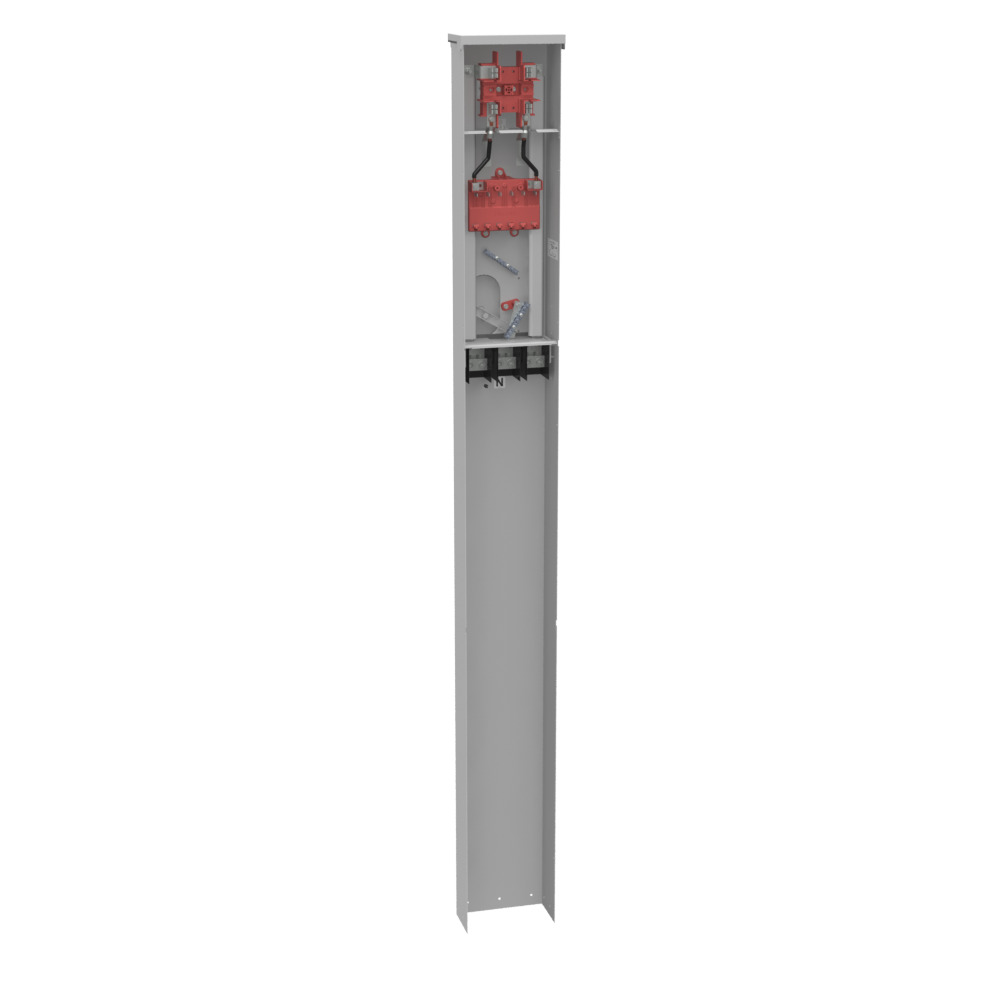

MPRV-BLANK-78 4 Term, Ringed, Plain Top, 1-Main Breaker Provision, Single Pedestal Direct Bury
- MFR:
- Milbank
- MFR #:
- MPRV-BLANK-78
- UPC:
- 784572166936
- Item #:
- 115878
MPRV-BLANK-78 4 Term, Ringed, Plain Top, 1-Main Breaker Provision, Single Pedestal Direct Bury
- MFR #:
- MPRV-BLANK-78
- UPC:
- 784572166936
- Item #:
- 115878
4 TERM RNGTP PLAIN TOP 1-MN BRKR PROV SGL PED DIR BURY
Manuals & Documentation
| Catalog Number | MPRV-BLANK-78 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 100 |
| Application | Meter Socket With Load Center |
| Cable Entry | Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Fiberglass with Resin |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Pedestal |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572166936 |
| GTIN | 00784572166936 |
| Item Type | Ring Type Meter Socket |
| Length | 4.01 |
| Length UOM | Inch |
| Width | 8.16 |
| Width UOM | Inch |
| Height | 78 |
| Height UOM | Inch |
| Size | 4.01L x 8.16W x 78H |
| Terminals | Double Mechanical |
| Voltage Rating | Up to 240 Volts Alternating Current |
