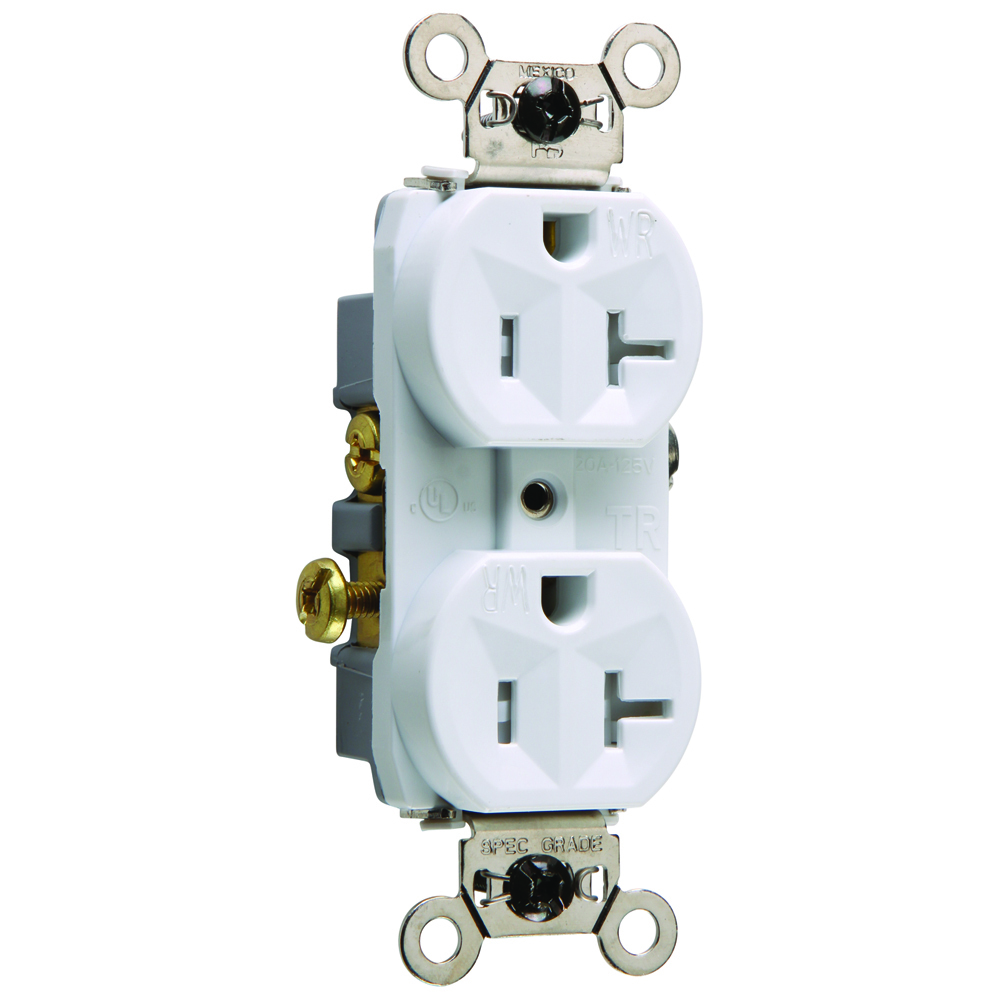

Tamper-Resistant, Commercial Grade Receptacles, 20A, 125V

Catalog Number WR20TRW
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Color White
Connection Side wire
Material UV-Resistant Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Auto-ground clip assures positive ground. WR marking on face as required by UL Standard. Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations. Strap tabs wrap around face to prevent strap from separating from face and back body. Tri-drive brass terminal screws. Side wire capability. Heavy-duty, brass strap for added strength and ground conductivity. UV-resistant nylon face for longer life under adverse environmental conditions. Two drive screws anchor strap to back body and face where abrupt removal torque is strongest. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. .032 inch thick brass triple-wipe power contacts for lasting retention.
Standard UL498, CSA C22.2 No. 42
UPC 785007242577
GTIN 00785007242577
Item Type Weather Resistant Commercial Grade Receptacle
Size 1.322 L x 1.130 W x 3.281 H
Temperature Rating -40° - 50° C
Voltage Rating 125
Wire Size 14 - 10 AWG
Cross Reference Products Bryant BR20WHIWRTR|EatonWD TWRBR20|EatonWD TWRBR20W|Enerlites 62040-TWR-W|HublWiring BR20WHIWRTR|Leviton TWR20-W|PassSeymor 3232TRWRW
