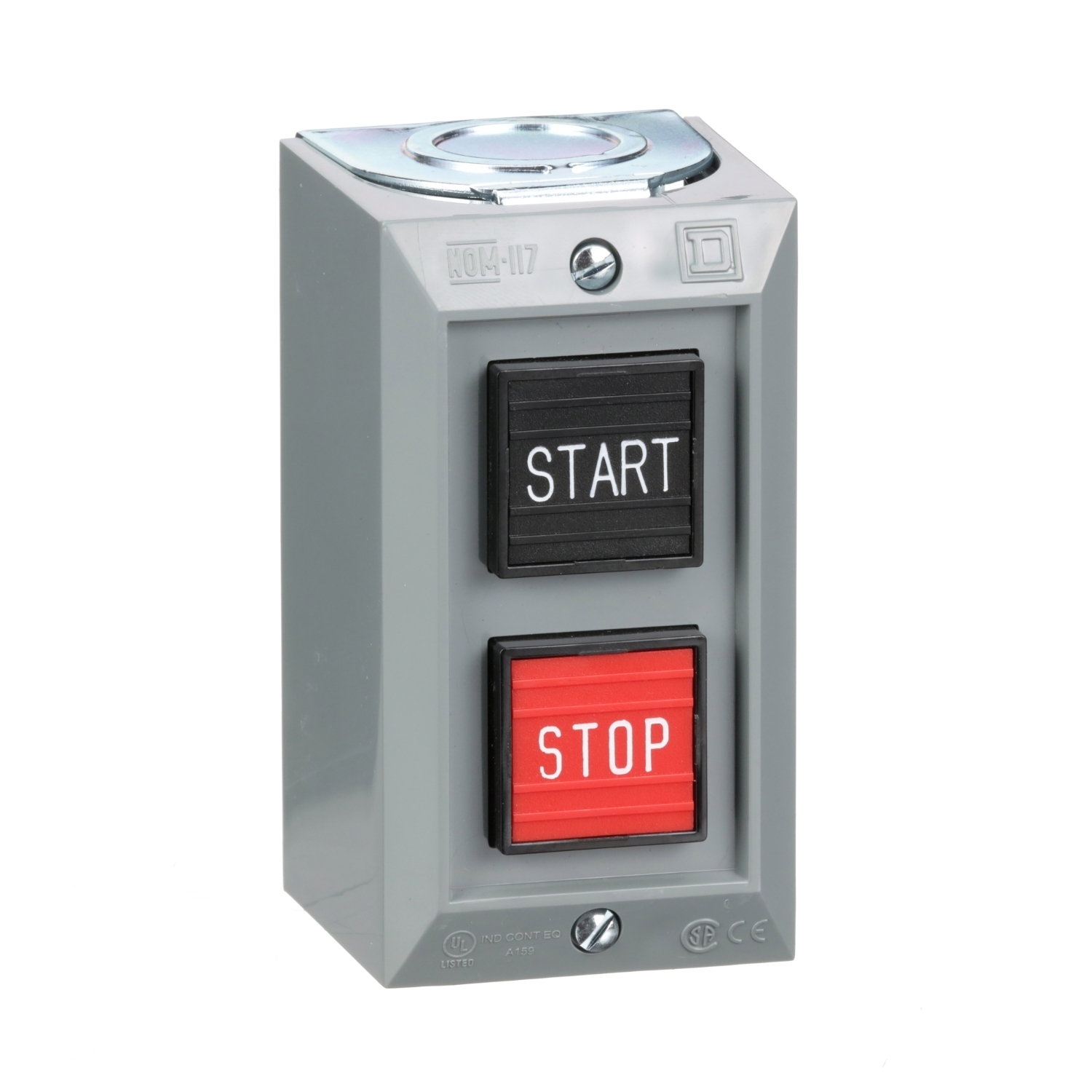

9001BG201 Harmony Type BG Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 1 NEMA Rating

MFR:
Schneider Electric
MFR #:
9001BG201
UPC:
785901390176
Item #:
114839

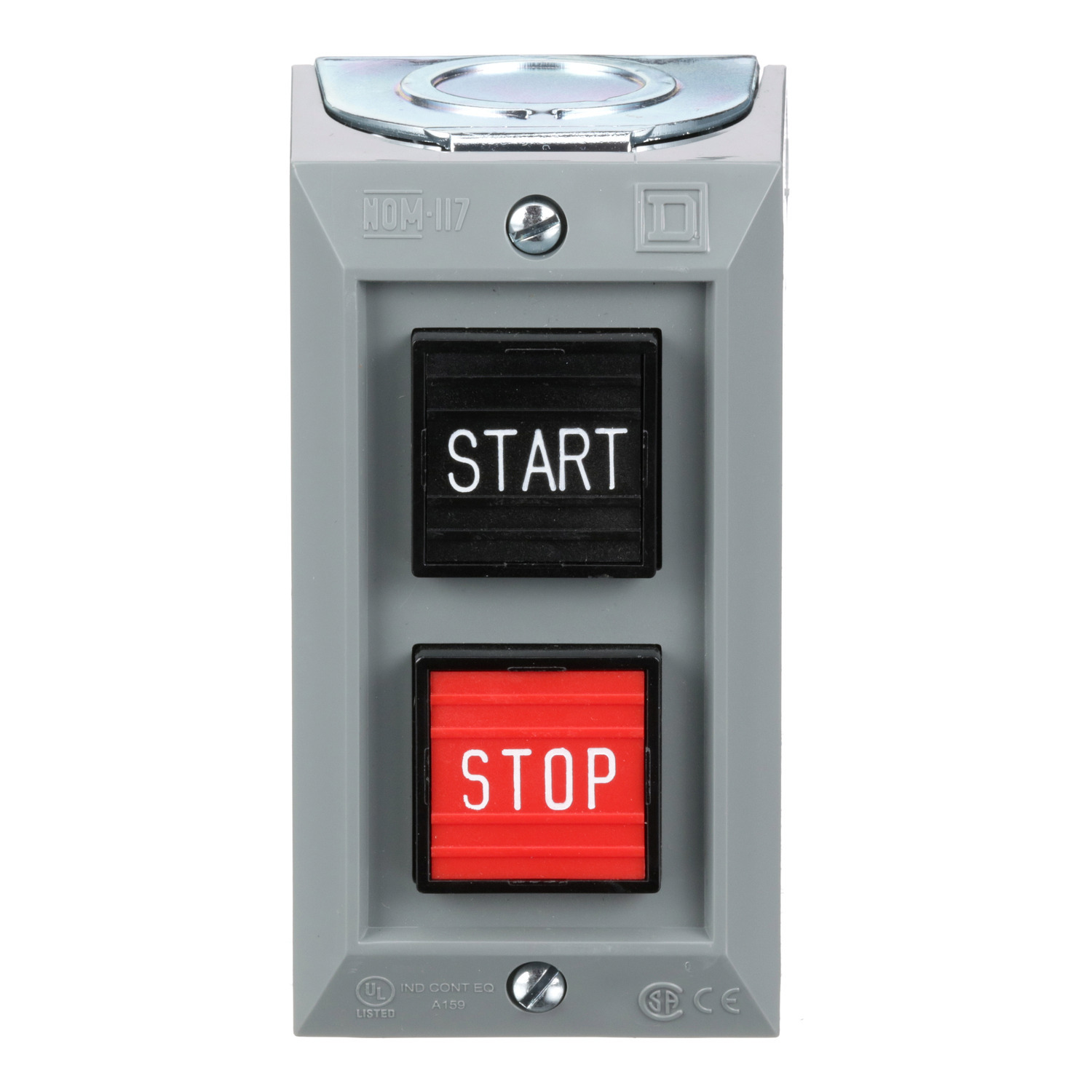

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two square momentary push buttons. It has a START push button with a normally open contact and a STOP push button with a normally closed contact. This NEMA 1 general purpose control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.

Manuals & Documentation
Catalog Number 9001BG201
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=459941&lang=en-us
UPC 785901390176
GTIN 00785901390176
