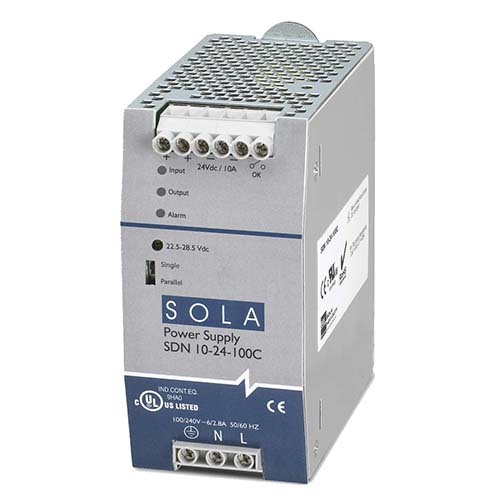

SDN10-24-100C SDN-C Compact Power Supply, 115/230 V AC Input, 24 VDC Output, 240 W Power Rating, 1.65/0.55 A, DIN Rail Mount
- MFR:
- SolaHD
- MFR #:
- SDN10-24-100C
- UPC:
- 783472001958
- Item #:
- 114669
SDN10-24-100C SDN-C Compact Power Supply, 115/230 V AC Input, 24 VDC Output, 240 W Power Rating, 1.65/0.55 A, DIN Rail Mount
- MFR #:
- SDN10-24-100C
- UPC:
- 783472001958
- Item #:
- 114669
Manuals & Documentation
| Catalog Number | SDN10-24-100C |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Philippines |
| Made in USA | No |
| Application | Industrial Machine Control and Process, Conveying Equipment, Material Handling, Packaging Equipment |
| Cable Size | 16 - 10 AWG Solid |
| Frequency Rating | 43 - 67 |
| Material | Metal Housing |
| Mounting | Din Rail |
| Phase | 1 |
| Special Features | Compact packaging to save space on the DIN rail, Visual diagnostic LEDs for input and output status at a glance, High MTBF means high reliability and long life, Higher efficiency saves energy and lowers amount of heat generated in panel, PowerBoostTM overload capability to start high inrush loads, Accepts Universal voltage 85-264 Vac, 50/60 Hz input, Active Power Factor Correction, Patented DIN rail mounting clip, User Adjustable output voltage accessible via front face, Parallel capability standard, Large, rugged, accessible screw terminals. |
| Standard | UL (CANADA AND US), UL 508, UL 60950, CUL, CSA-C22.2, CE |
| UPC | 783472001958 |
| GTIN | 00783472001958 |
| Item Type | SDN-C Compact DIN Rail Series |
| Length | 1.97 |
| Width | 4.55 |
| Height | 4.85 |
| Environmental Conditions | 90 RH Humidity Range |
| Voltage Rating | 115 - 230 |
| Wattage | 12 |
| Cross Reference Products | Astec ADN10241PM|Phoenix 2938604|Rockwell 1606XLS240E|Siemens 6EP13342AA01|Siemens 6EP13342BA01|Siemens 8WA10111DF11|SolaHD SDN1024100C|SolaHD SDN1024100P |
