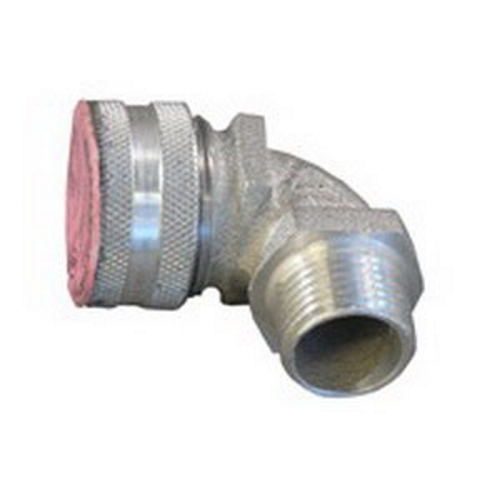

1/2 in. Liquid Tight Strain Relief Cord and Cable Connector; 90 Degree, Aluminum, .375-.500
- MFR:
- Appleton Electric
- MFR #:
- CG90-3750
- UPC:
- 781381189606
- Item #:
- 114547
1/2 in. Liquid Tight Strain Relief Cord and Cable Connector; 90 Degree, Aluminum, .375-.500
- MFR #:
- CG90-3750
- UPC:
- 781381189606
- Item #:
- 114547
90 DEG Liquidtight Strain Relief Connector, Size: 1/2 IN, Conductor Range: 3/8 - 1/2 IN, Material: Cast Aluminum, Color: Purple Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1 A
Manuals & Documentation
| Catalog Number | CG90-3750 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable |
| Color | Purple Label |
| Conductor Range | 3/8 - 1/2 IN |
| Connection | Threaded Hub |
| Material | Cast Aluminum |
| NEMA Rating | 3R |
| Special Features | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| UPC | 781381189606 |
| GTIN | 00781381189606 |
| Item Type | 90 DEG Liquidtight Strain Relief Connector |
| Size | 1/2 |
