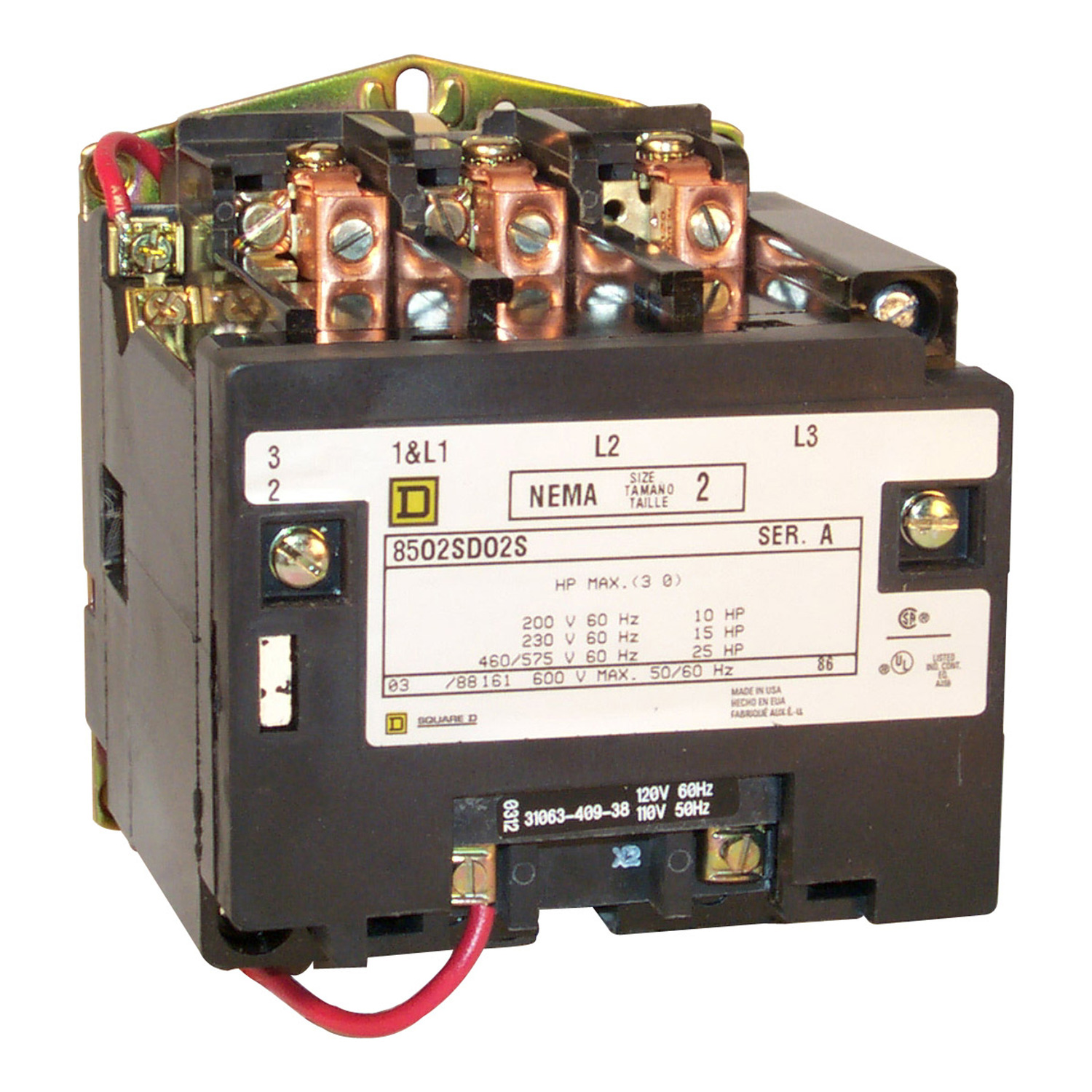

8502SDO2V06 3-Phase Type S NEMA Contactor, 440/480 V AC V Coil, 45 A, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- 8502SDO2V06
- UPC:
- 785901881605
- Item #:
- 114284
8502SDO2V06 3-Phase Type S NEMA Contactor, 440/480 V AC V Coil, 45 A, 3 Poles
- MFR #:
- 8502SDO2V06
- UPC:
- 785901881605
- Item #:
- 114284
Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
Manuals & Documentation
| Catalog Number | 8502SDO2V06 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901881605 |
| GTIN | 00785901881605 |
