SQUARE D

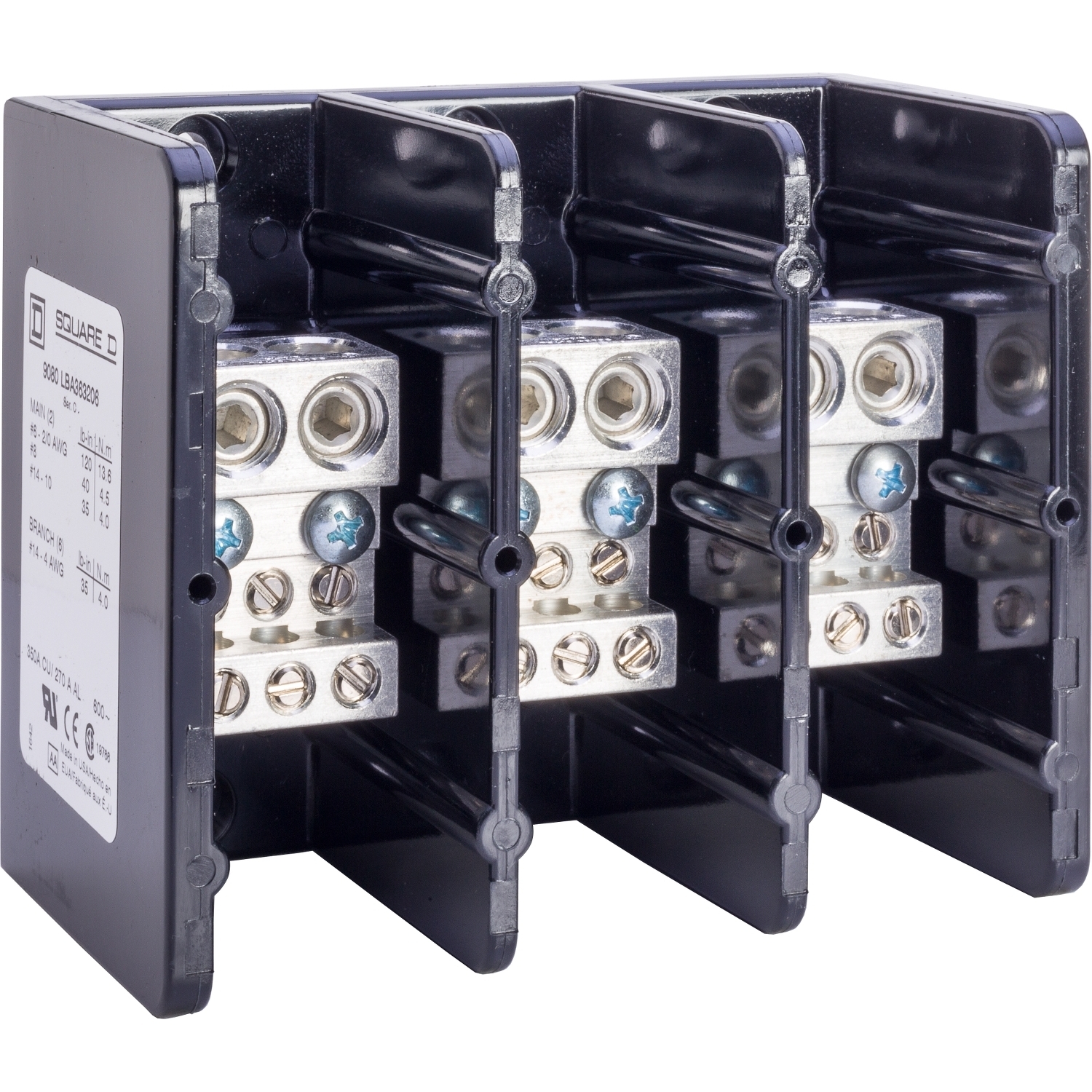

9080LBA363206 TeSys Linergy General Purpose Linergy Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 270/350 A, 3 Poles, (2) 14 to 2/0 AWG, (6) 14 to 4 AWG Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA363206
UPC:
785901097488
Item #:
113671

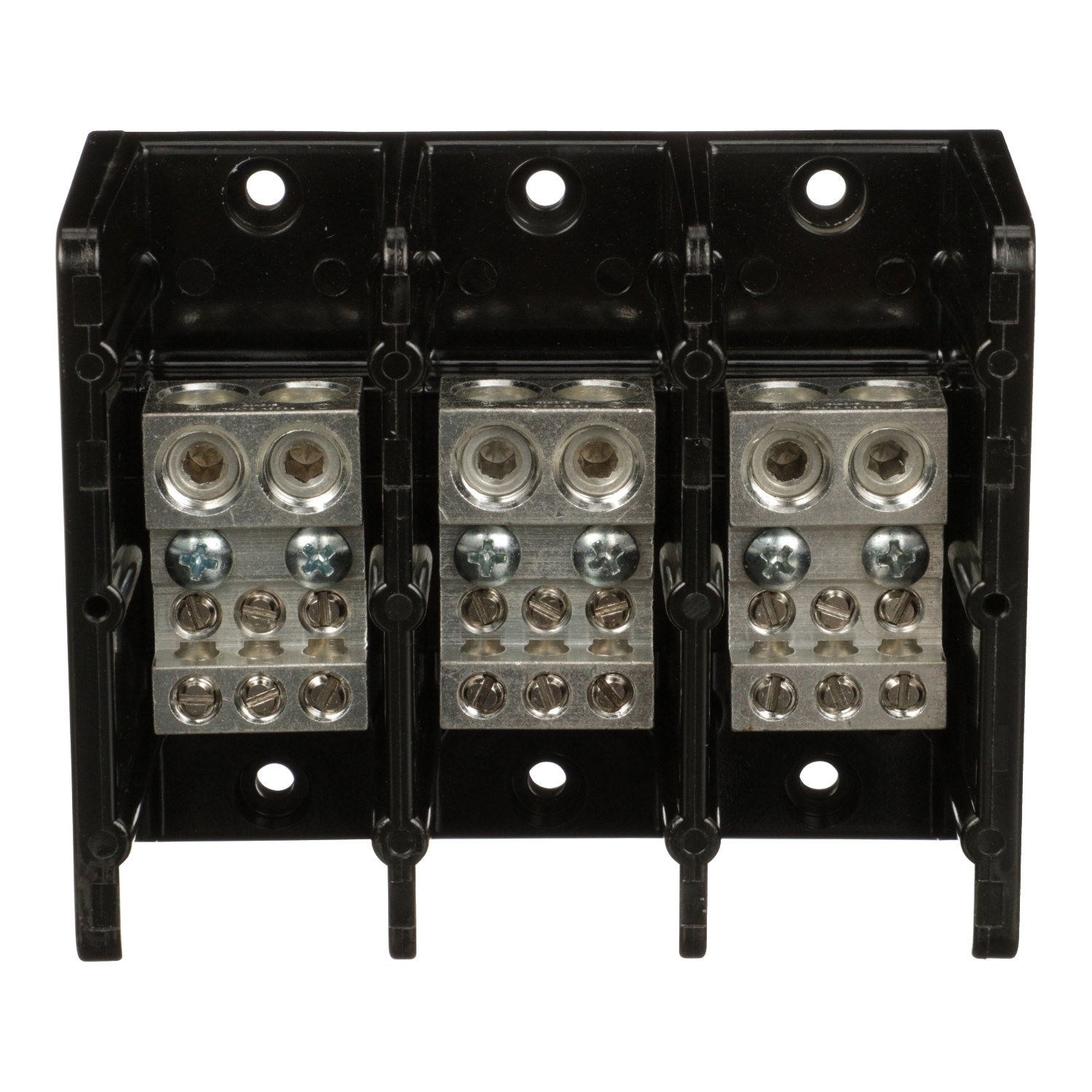

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 350 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA363206
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes

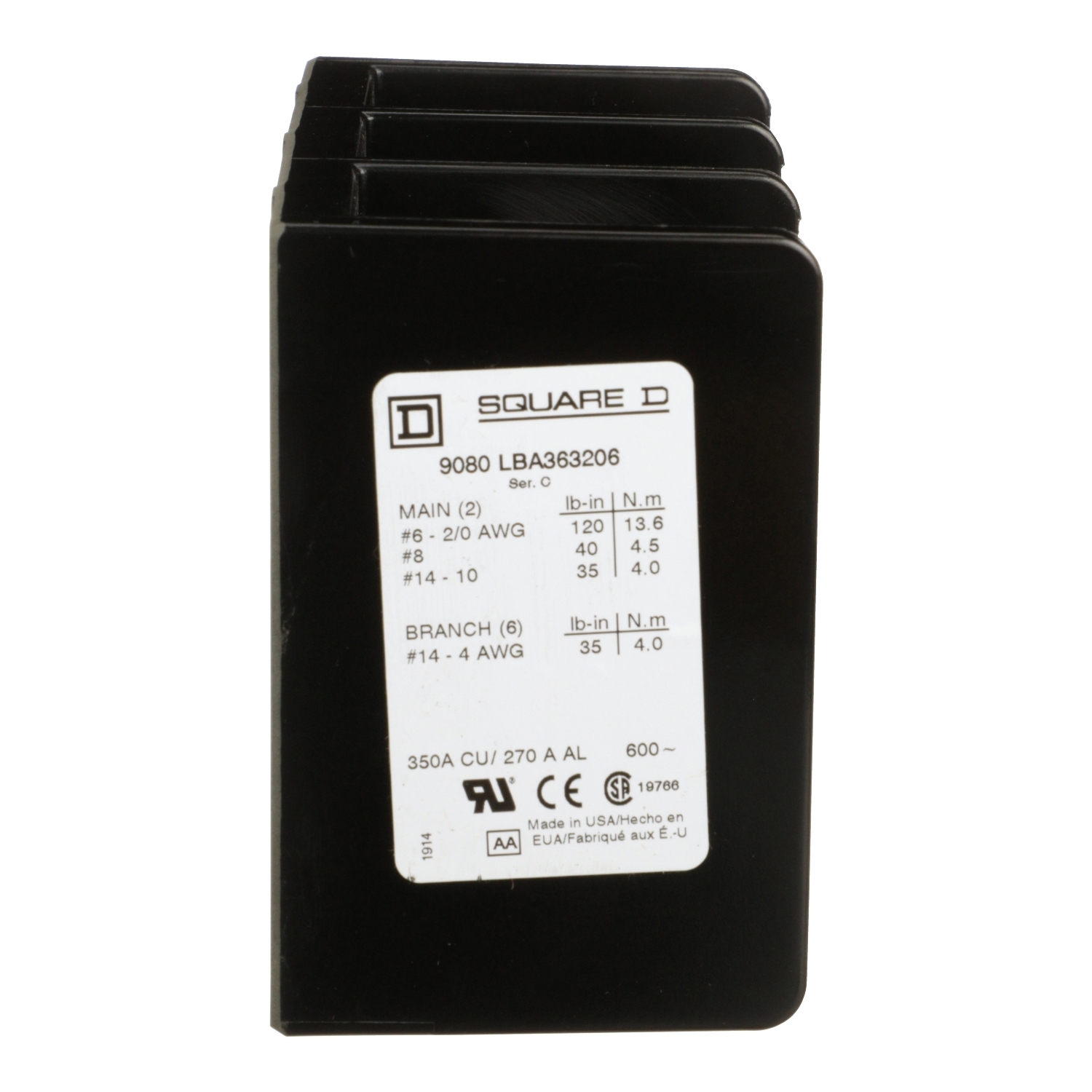

Connection Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372995&lang=en-us
UPC 785901097488
GTIN 00785901097488
Item Type Power Distribution Block;9080LB33
Width 5.0
Width UOM Inch
Height 4.0
Height UOM Inch
Depth 2.61 IN
