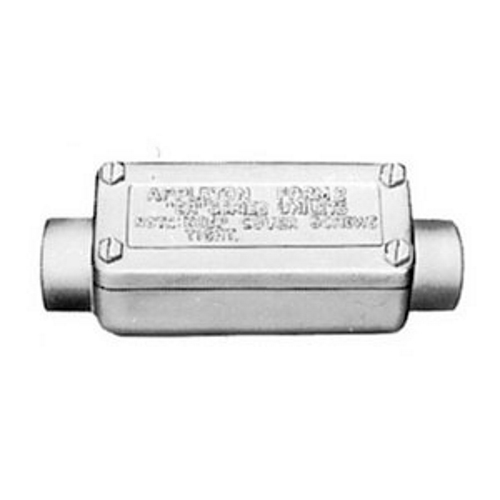

UNILETS ER Series Type C Conduit Outlet Box With Cover, Hub Size: 3/4 IN, Length: 5.44 IN, Width: 1-3/4 IN, Height: 2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered

Manuals & Documentation
Catalog Number ERC75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit
Material Malleable Iron
Special Features Meet a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit; Provide access for maintenance; Malleable iron bodies have high tensile strength and ductility; Provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with covers; General purpose wiring; Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited; Six different hub arrangements; Ground surface contact between body and cover assures a flame-tight joint; Smooth, rounded integral bushing in each hub type box protects conductor insulation
Standard UL File Number E30513, R1044, 009795, Class I, Division 1 And 2, Group C And D Class II, Division 1 And 2, Groups E, F, G Class III
RoHS Indicator Contact Manufacturer
UPC 781381302456
GTIN 00781381302456
Item Type ER Series Type C Conduit Outlet Box With Cover
Length 6.5000
Length UOM Inch
Width 6.2000
Width UOM Inch
Height 0.7400
Height UOM Inch
Weight 2.730
Weight UOM Pounds
