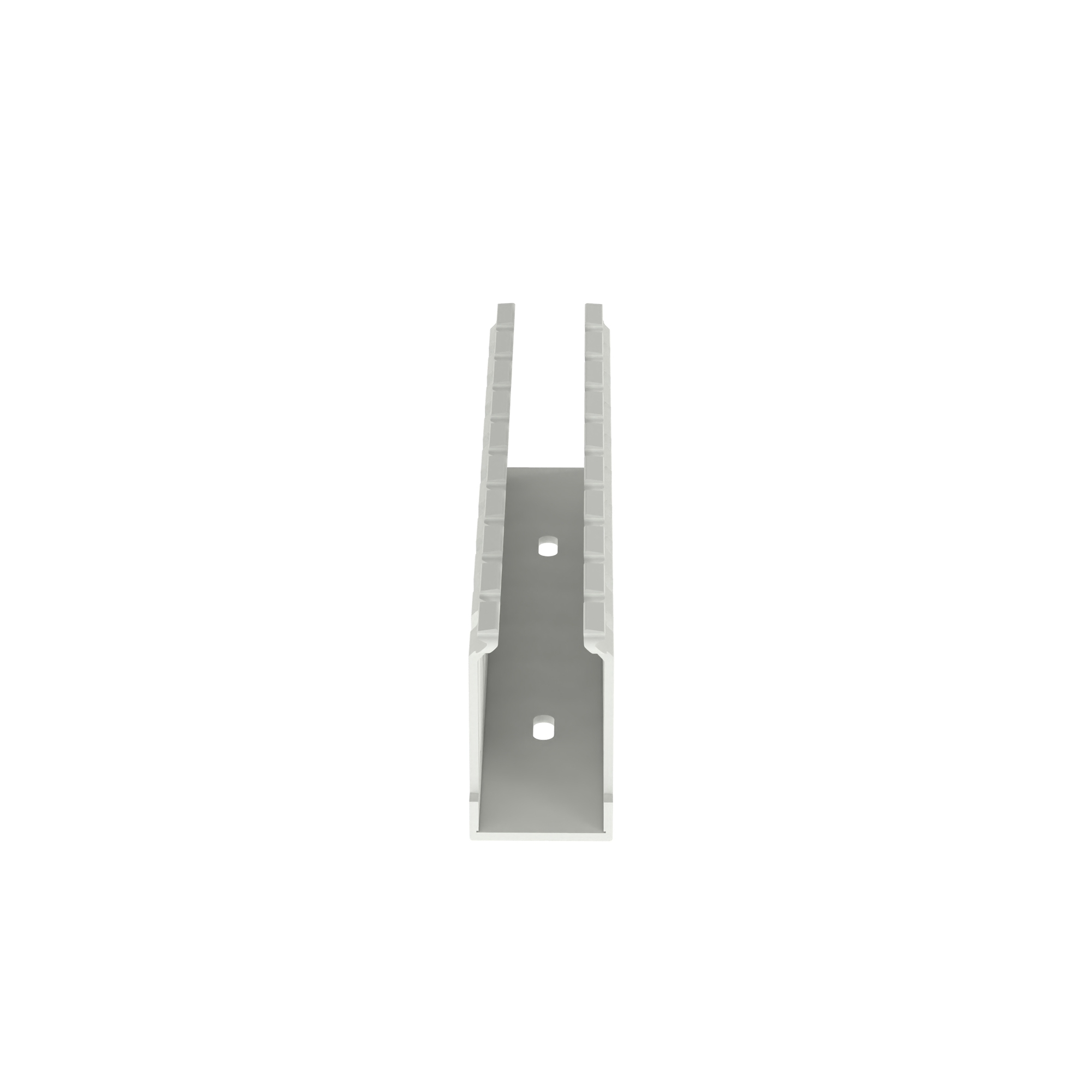

G1X2WH6 Panduct Type G Base Wiring Duct, 0.31 in Wide Slot Slot, 1-1/4 in W x 2.12 in D, PVC
- MFR:
- Panduit
- MFR #:
- G1X2WH6
- UPC:
- 074983545964
- Item #:
- 112961
G1X2WH6 Panduct Type G Base Wiring Duct, 0.31 in Wide Slot Slot, 1-1/4 in W x 2.12 in D, PVC
- MFR #:
- G1X2WH6
- UPC:
- 074983545964
- Item #:
- 112961
The G1X2WH6 Panduct Lead-Free PVC Wide Slot Wiring Duct feature a wide slot/finger design that provides greater sidewall rigidity and is suitable with a range of wire bundle sizes. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. 1.0 x 2.0 (25.4 mm x 50.8 mm) and 6' (1.8 m) long. Cover sold separately. Color White.
Manuals & Documentation
| Catalog Number | G1X2WH6 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications |
| Color | White |
| Connection | Mounting Holes |
| Material | PVC |
| Slot Pitch | 0.31 IN |
| Slot Style | Slotted |
| Standard | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| UPC | 074983545964 |
| GTIN | 00074983545964 |
| Item Type | Base Wiring Duct |
| Length | 6.00 |
| Width | 1.25 |
| Width UOM | Inch |
| Size | 1.26 x 2.12 |
