Appleton

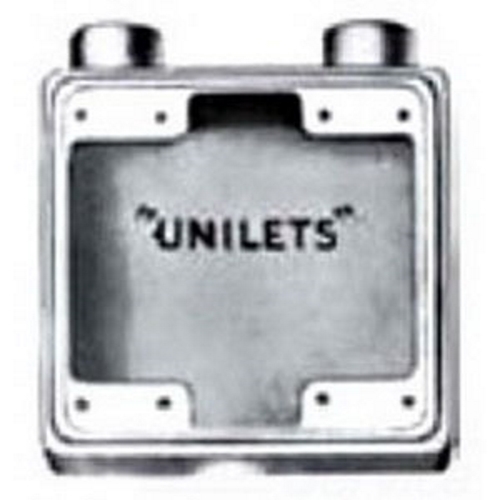

Emerson; 2 Gang Cast Device Box; 1 Inch Hub, 32 Cubic-Inch, Malleable Iron, Triple Coat (Zinc Electroplate, Chromate and Epoxy Powder Coated)

MFR:
Appleton Electric
MFR #:
FSS-2-100
UPC:
781381763103
Item #:
11295

UNILETS FSS Shallow Depth 2-Gang Cast Device Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1 IN, Cable Entry: (2) 1 IN Hub, Cubic Capacity: 32 CU-IN, Knockouts: No, Height: 4.63 IN, Width: 4.63 IN, Depth: 2 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1, For Use With Threaded Metal Conduit And IMC

Manuals & Documentation
Catalog Number FSS-2-100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit And IMC
Cable Entry (2) 1 IN Hub
Cubic Capacity 32 CU IN
Knockouts No
Material Malleable Iron
Special Features Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
Standard UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
RoHS Indicator No
UPC 781381763103
GTIN 00781381763103
Item Type FSS Shallow Depth 2-Gang Cast Device Box
Length 6.7000
Length UOM Inch
Width 5.0000
Width UOM Inch
Height 3.4000
Height UOM Inch
Weight 2.550
Weight UOM Pounds
Size 1
