Appleton

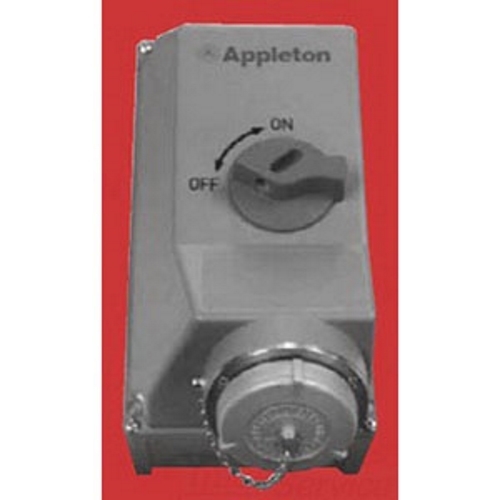

ASR6034 Non-Fused Non-Metallic Interlocked Receptacle With Enclosed Disconnect Switch, 600 V AC, 60 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
ASR6034
UPC:
781381096089
Item #:
112825

Non-Fused ASR Series Nonmetallic Interlocked Receptacle, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: VALOX Thermoplastic Polyester Enclosure, Nema Rating: NEMA 4X, 12, M

Manuals & Documentation
Catalog Number ASR6034
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Germany
Made in USA No
Amperage Rating 60
Application For ACP Plugs
Material VALOX Thermoplastic Polyester Enclosure
Mounting Surface
NEMA Rating 4X, 12
Number of Poles 4
Number of Wires 3
Phase 3
Special Features With enclosed disconnect switch; Moveable mounting feet allow for installation on irregular surfaces for easy installation; Internal mounting tubes where mounting area is limited; Hidden hinge system eliminates sanitation concerns; The switch is the latest in technology utilizing self-cleaning contacts and driven by a solid bridge bar to prevent single phasing of motors; The quick make/break action provides long electrical life; Meets OSHA requirements for lockout/tagout (Reg. 1910.147), switch can be locked in the OFF position; Utilizes Style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring; Stainless steel screws for outstanding corrosion resistance; Materials are UV stabilized; For welders, generators, compressors, infrared ovens, batch feeders, conveyors, truck terminals, marine docks; Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged; IP66 suitable; UL04 - 5V flame rating
Standard UL 98, UL 1682, and UL 1686; UL Listed: E304212; CSA Standard: CSA 22.2 No. 4, C22.2 No. 182.1; cUL Listed: E160652
UPC 781381096089
GTIN 00781381096089
Item Type Non-Fused ASR Series Nonmetallic Interlocked Receptacle
Voltage Rating 600
