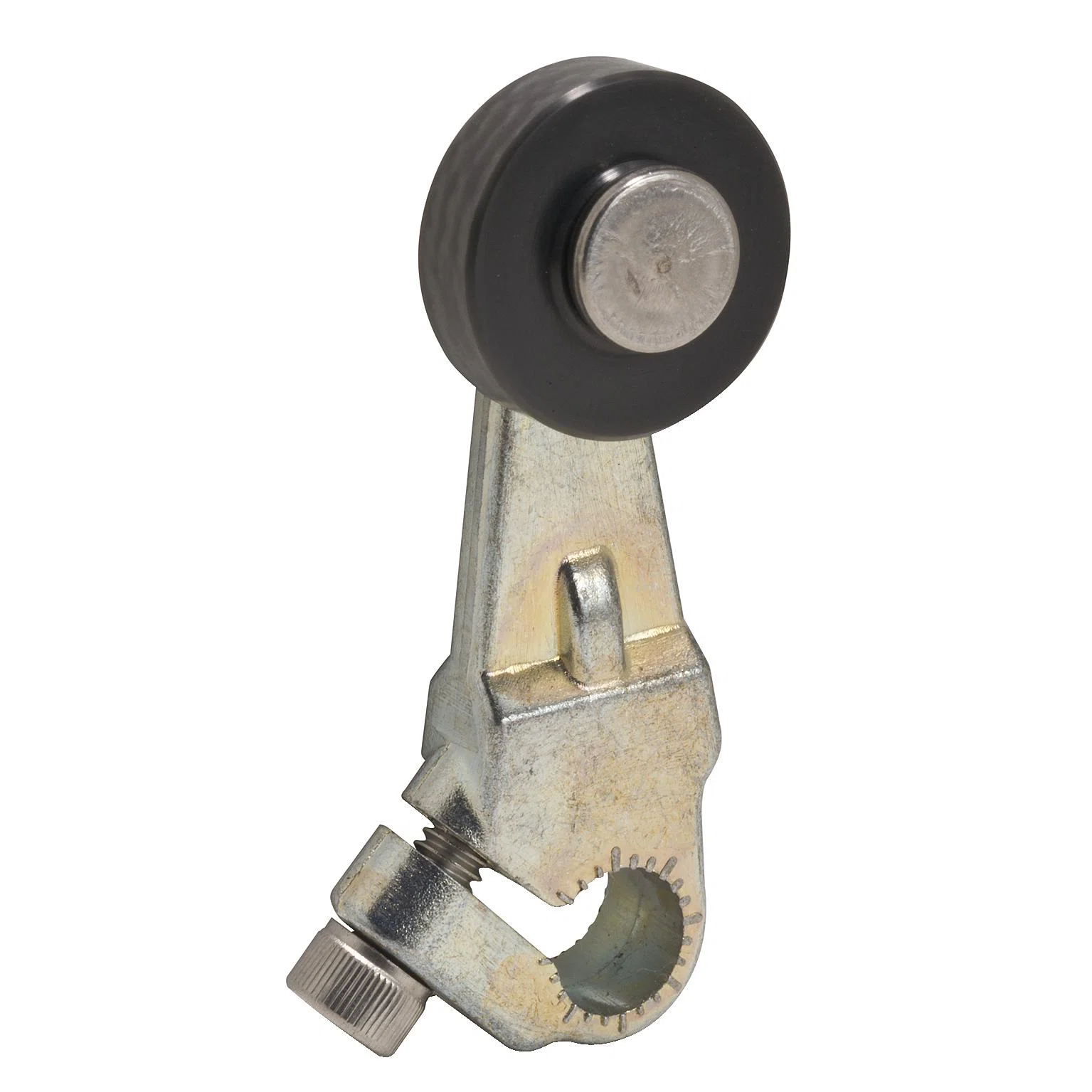

Square D™ OsiSense® Limit Switch Lever Arm, Rotary, Series: 9007MS/ML, 1-1/2 in Arm Length, 0.62 in Arm Width, 3/4 in Roller Diameter, 1/4 in Roller Width, Outside Roller Position, Nylon Roller, Zinc Plated Arm

Manuals & Documentation

Features

  • Rotary movement of operating head
  • Cast zinc spring return roller lever type of operator
  • By 30 deg cam switch actuation
  • One nylon outside roller
Manufacturer Part Number 7A1N
Brand Square D™
Manufacturer Schneider Electric
UPC 785901215943
EAN 0785901215943
Country Of Origin MX
Series 9007MS/ML
Type Rotary
Alternative Part Number 8088792
Manufacturer Item Status Active
Country USA
Warranty 18 Months
Standards Approvals IEC 60204-1/609475-1 | CENELEC EN 50041 | CSA C22.2 File No. 14 | CSA File No. LR25490 CLASS 3211-03 | CCN | CE Marked | NKCR | EN 60204-1 | EN 609475-1 | UL 508 | UL File No. E42259 | PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Application For 9007MS/ML, 9007MS04 and 9007ML04 series limit switch
Arm Length 1-1/2 in
Arm Material Zinc Plated
Arm Width 0.62 in
Roller Diameter 3/4 in
Roller Material Nylon
Roller Position Outside
Roller Width 1/4 in
