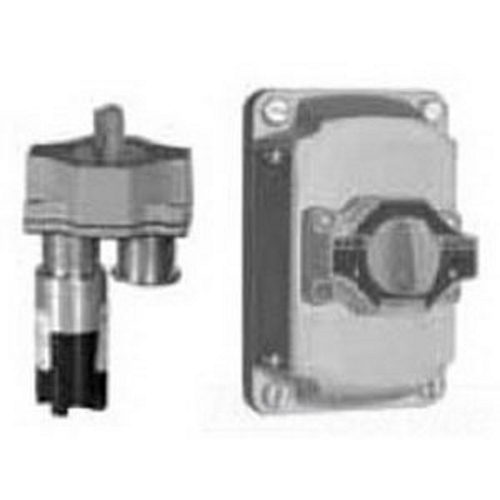

SSBA12Q Intraground ECS Explosionproof Non-Illuminated Selector Switch Assembly, 1/2 in, 1NO-1NC Contact, Knob Operator
- MFR:
- Appleton Electric
- MFR #:
- SSBA12Q
- UPC:
- 781381634335
- Item #:
- 110777
SSBA12Q Intraground ECS Explosionproof Non-Illuminated Selector Switch Assembly, 1/2 in, 1NO-1NC Contact, Knob Operator
- MFR #:
- SSBA12Q
- UPC:
- 781381634335
- Item #:
- 110777
Intraground Non Illuminated Selector Switch, Number Of Steps: 2, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7C, 7D, 9E, 9F, 9G, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Maintained,
Manuals & Documentation
| Catalog Number | SSBA12Q |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 10 AMP At 600 VAC |
| Enclosure | NEMA 3, 7C, 7D, 9E, 9F, 9G |
| Mounting | Surface |
| Number of Steps | 2 |
| Special Features | Nonmetallic construction with metal imbedded grounding grid; No need to install special wires and parts for grounding; Special grounding wire furnished with each box provides safe grounding when cover is removed; selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements; Corrosion resistant stainless steel teflon coated hex head cap screws hold covers to body; Aluminum housing, nylon knobs and cams and sealed phenolic contact block |
| Standard | UL 508, UL 698, UL 1203 , E10449, E81751 UL Listed, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| UPC | 781381634335 |
| GTIN | 00781381634335 |
| Item Type | Non Illuminated Selector Switch |
