LCC4-14A-L Pan-Lug LCC 2-Hole Compression Connector Lug, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 1/4 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCC4-14A-L
- UPC:
- 074983382521
- Item #:
- 110574
LCC4-14A-L Pan-Lug LCC 2-Hole Compression Connector Lug, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 1/4 in Stud, Tin Plated Copper
- MFR #:
- LCC4-14A-L
- UPC:
- 074983382521
- Item #:
- 110574

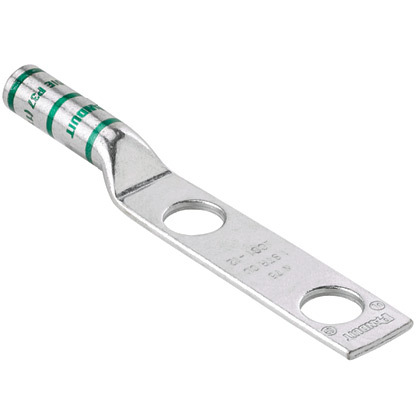

The LCC4-14A-L Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.
Manuals & Documentation
| Catalog Number | LCC4-14A-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Gray |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | C22.2 No. 65-13, 486A-486B File #E52164 |
| UPC | 074983382521 |
| GTIN | 00074983382521 |
| Item Type | Compression Lug |
| Size | #4 — #3 AWG Code STR, #2 AWG Code SOL |
| Stud Size | 1/4 IN |
