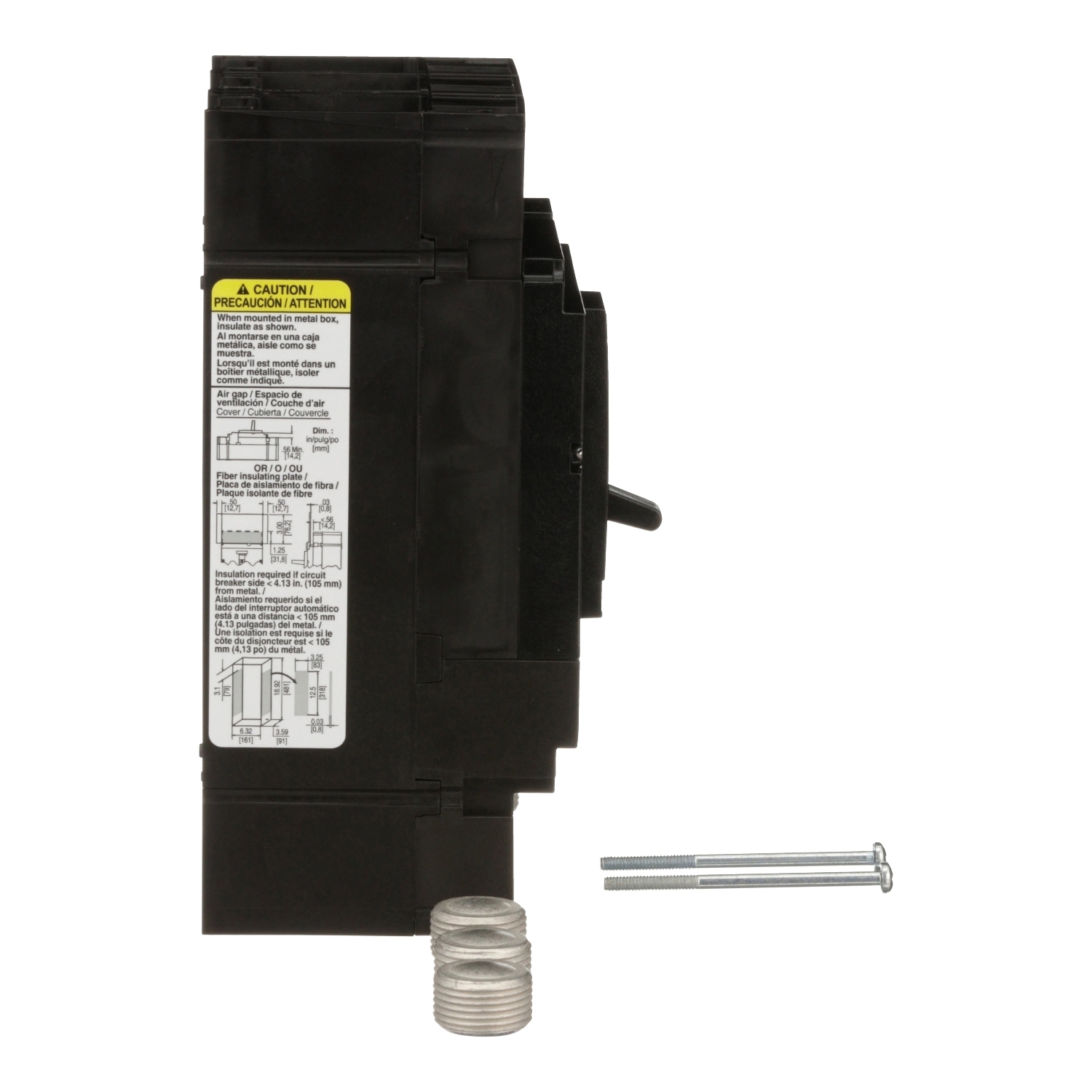

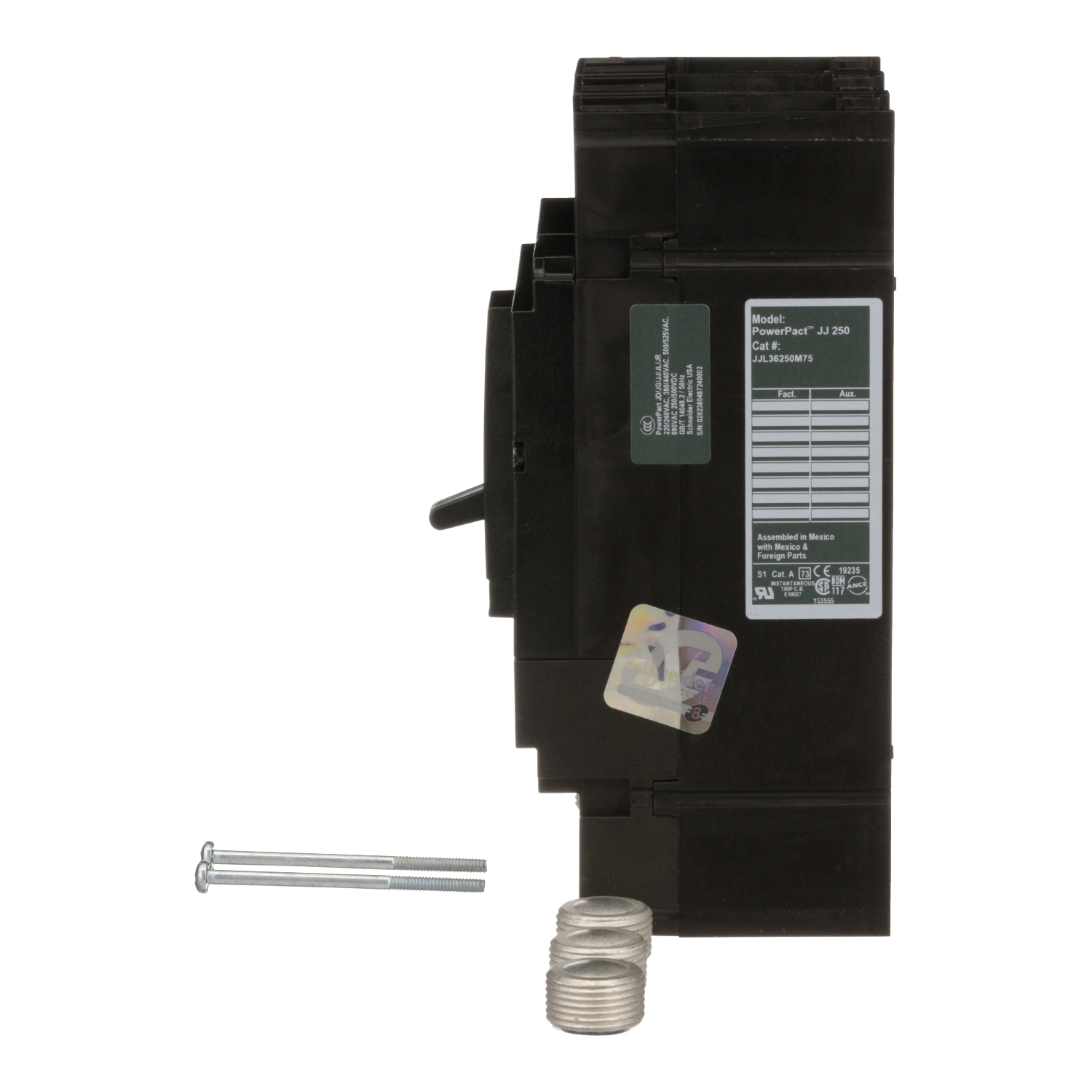

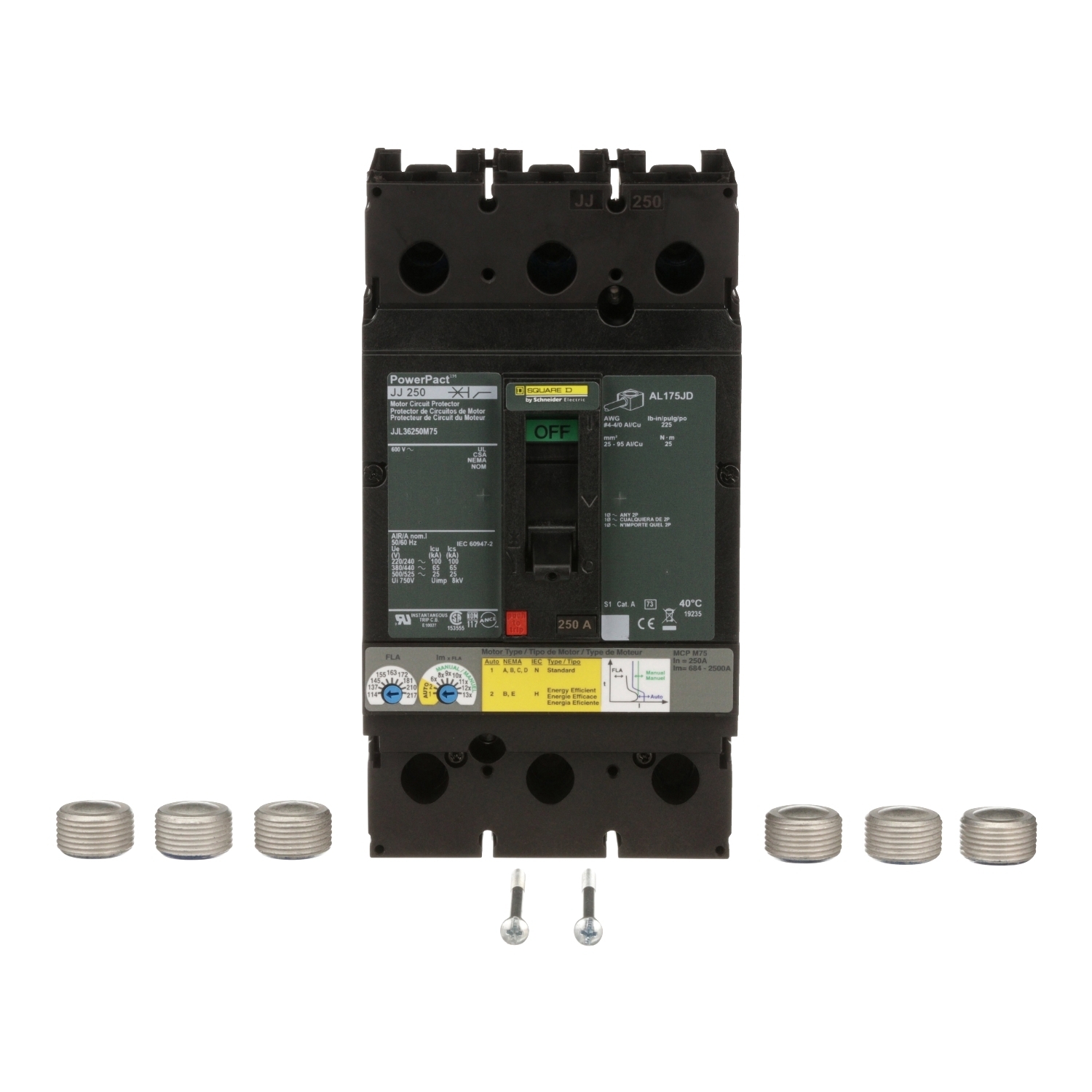

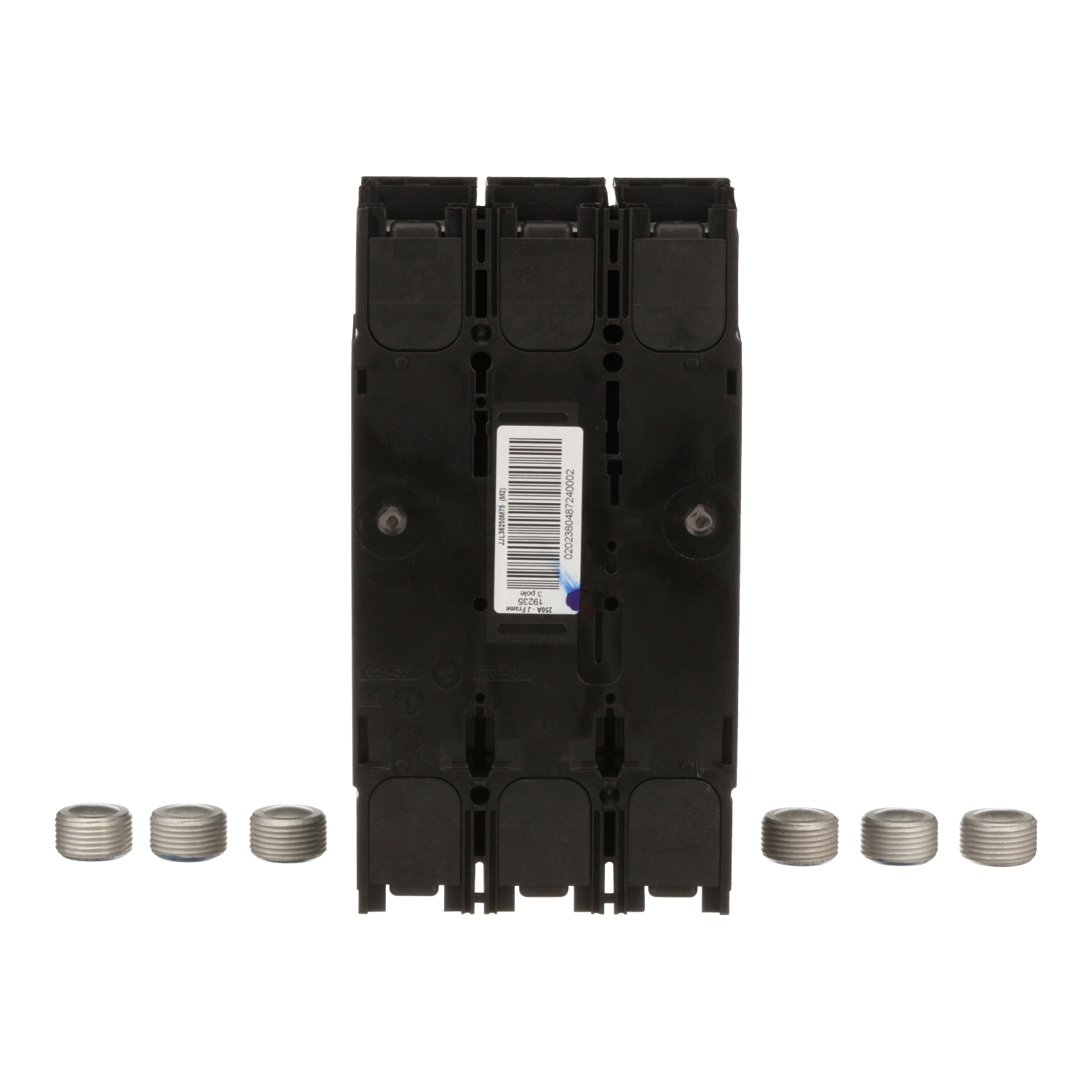

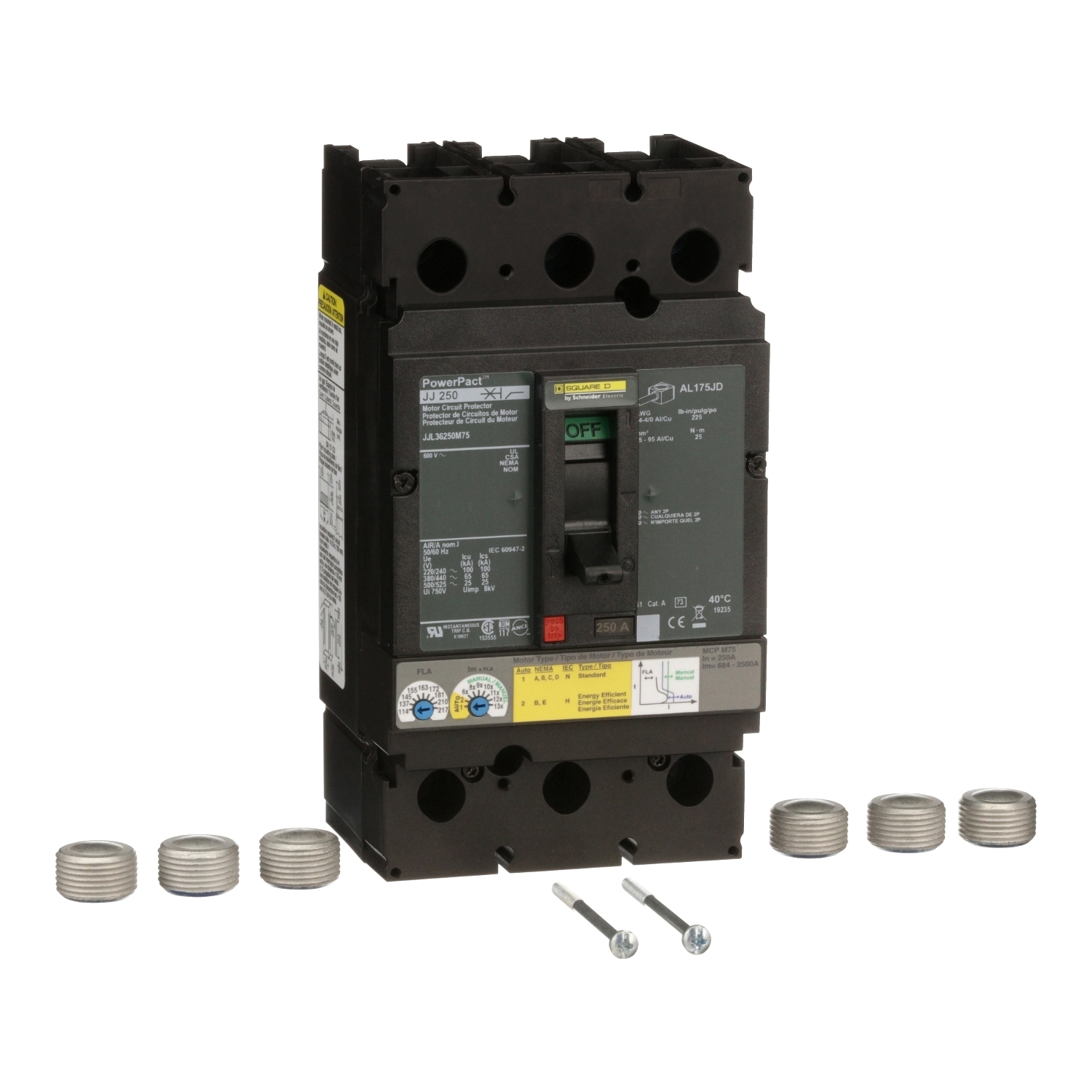

JJL36250M75 Motor Circuit Breaker, 250 Amp, 3 Pole, 600V
- MFR:
- Schneider Electric
- MFR #:
- JJL36250M75
- UPC:
- 785901541134
- Item #:
- 110517
JJL36250M75 Motor Circuit Breaker, 250 Amp, 3 Pole, 600V
- MFR #:
- JJL36250M75
- UPC:
- 785901541134
- Item #:
- 110517
PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | JJL36250M75 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=55939900&lang=en-us |
| UPC | 785901541134 |
| GTIN | 00785901541134 |
| Item Type | Motor Circuit Protector |
| Trip Type | Thermal-magnetic |
| Cross Reference Products | Eaton FGA140401|Eaton HMCP150U4|Eaton HMCP250A5|Eaton HMCP250W5W|Eaton HMCP250W5YS10|Eaton HMCPJ250D5L|Eaton HMCPJ250F5L|Eaton HMCPJ250G5L|Eaton HMCPJ250J5L|Eaton HMCPJ250K5L |
