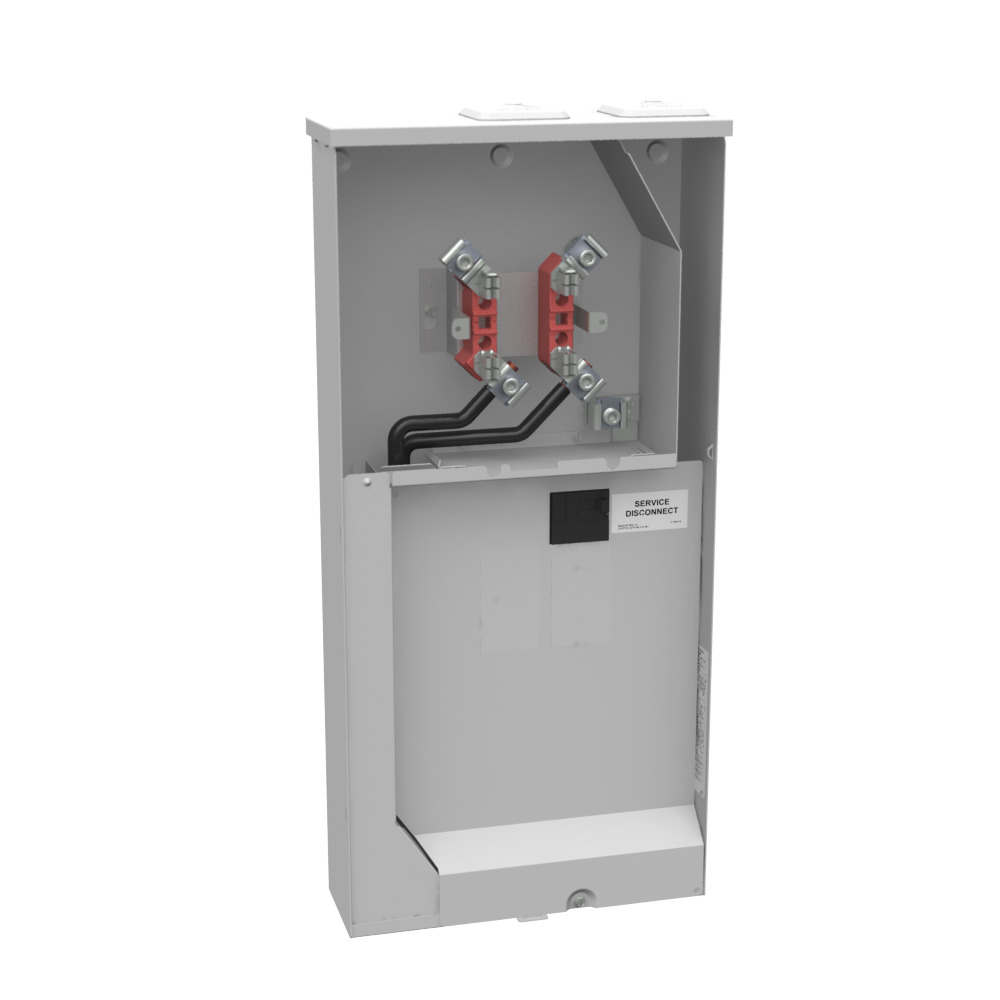

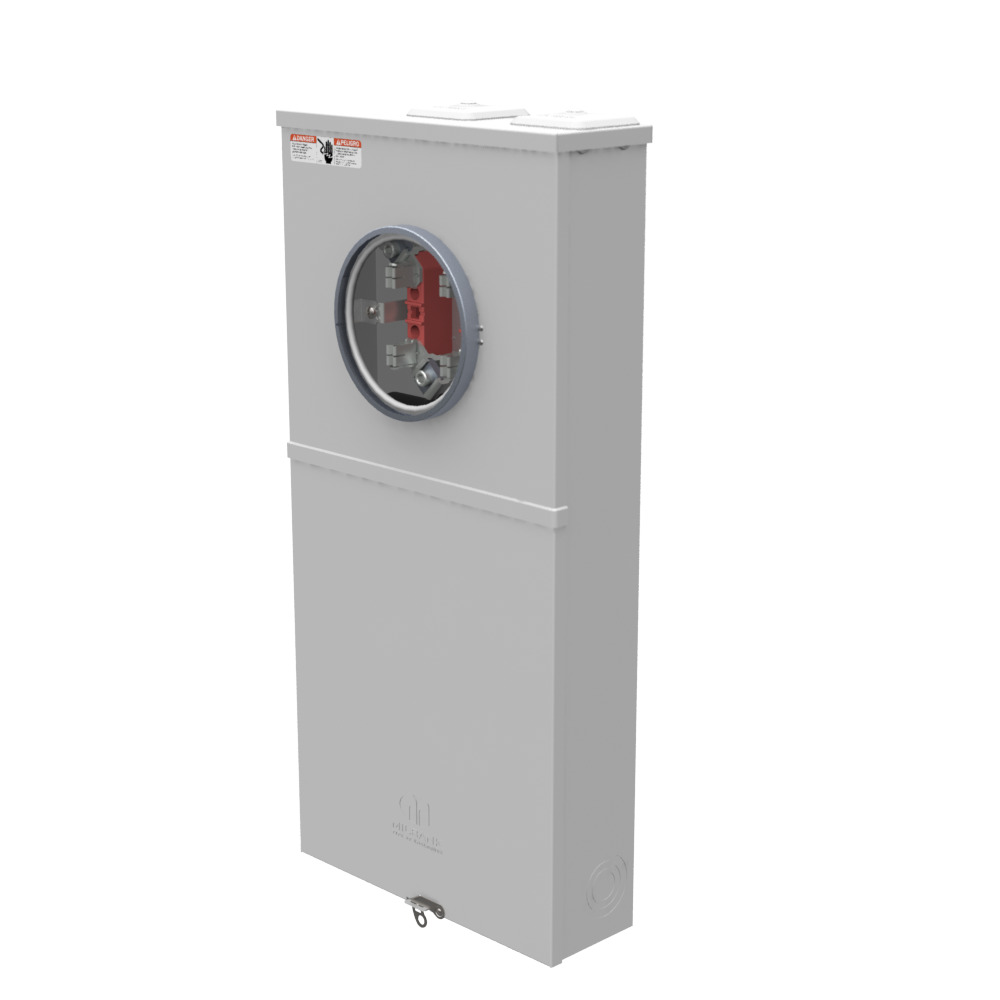

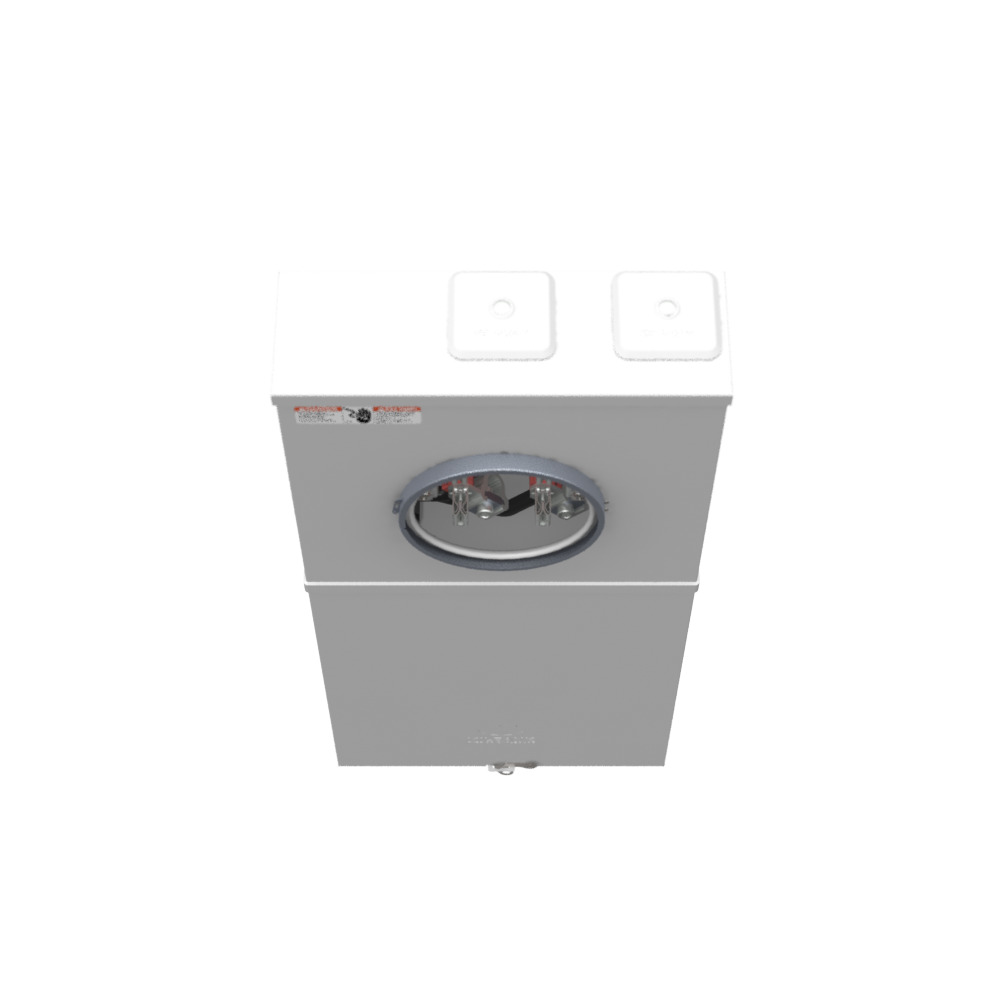

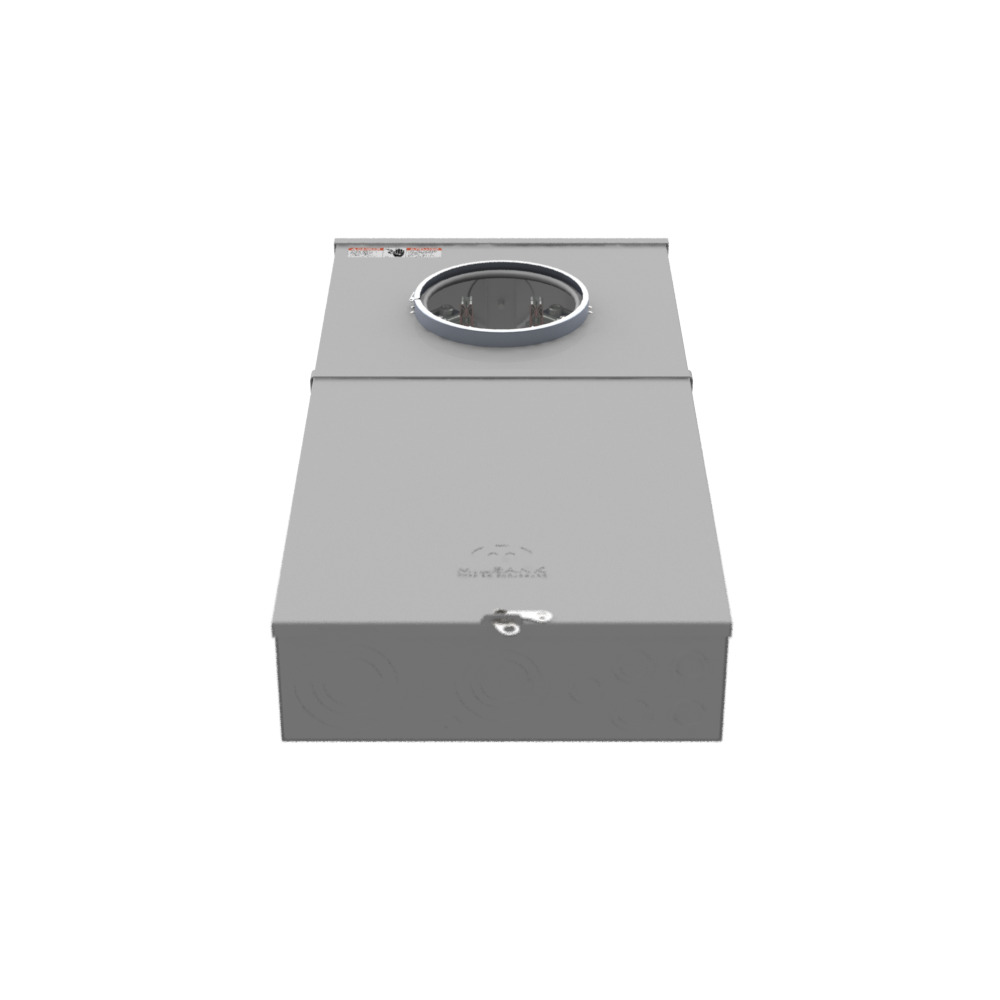

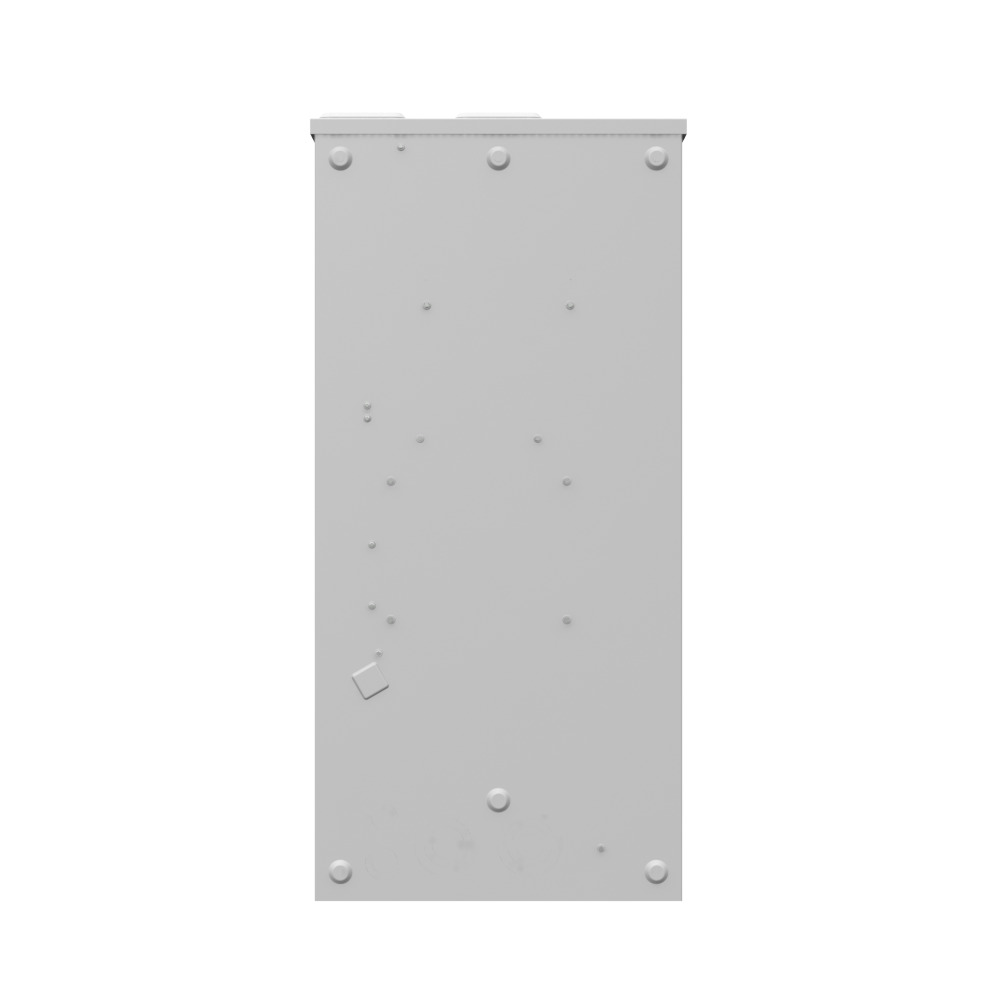

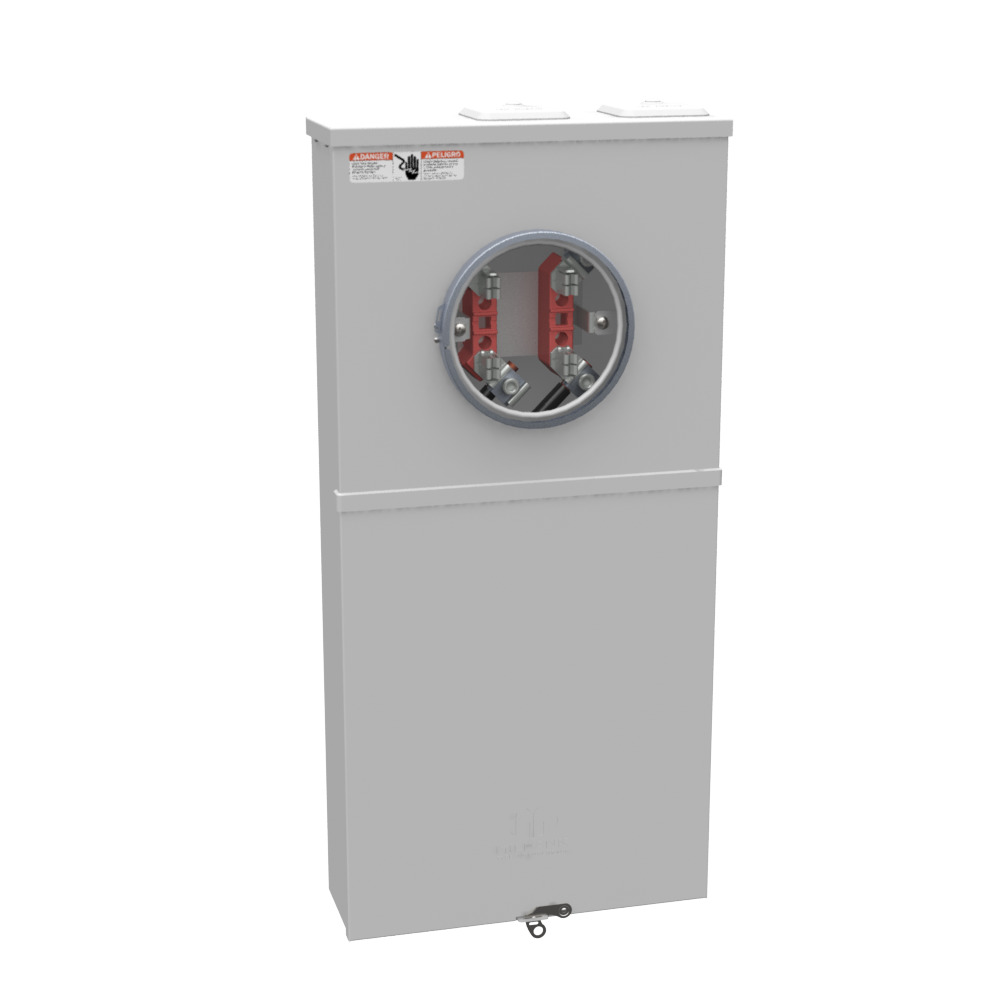

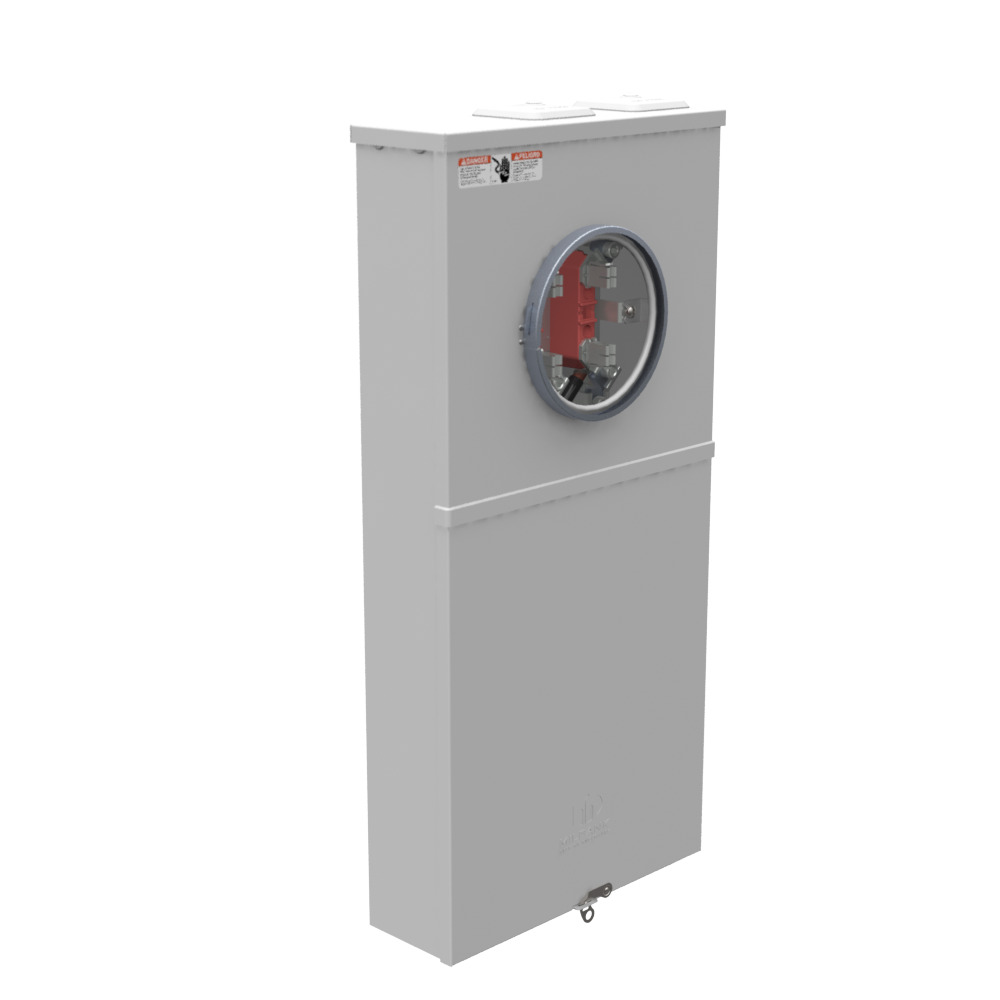

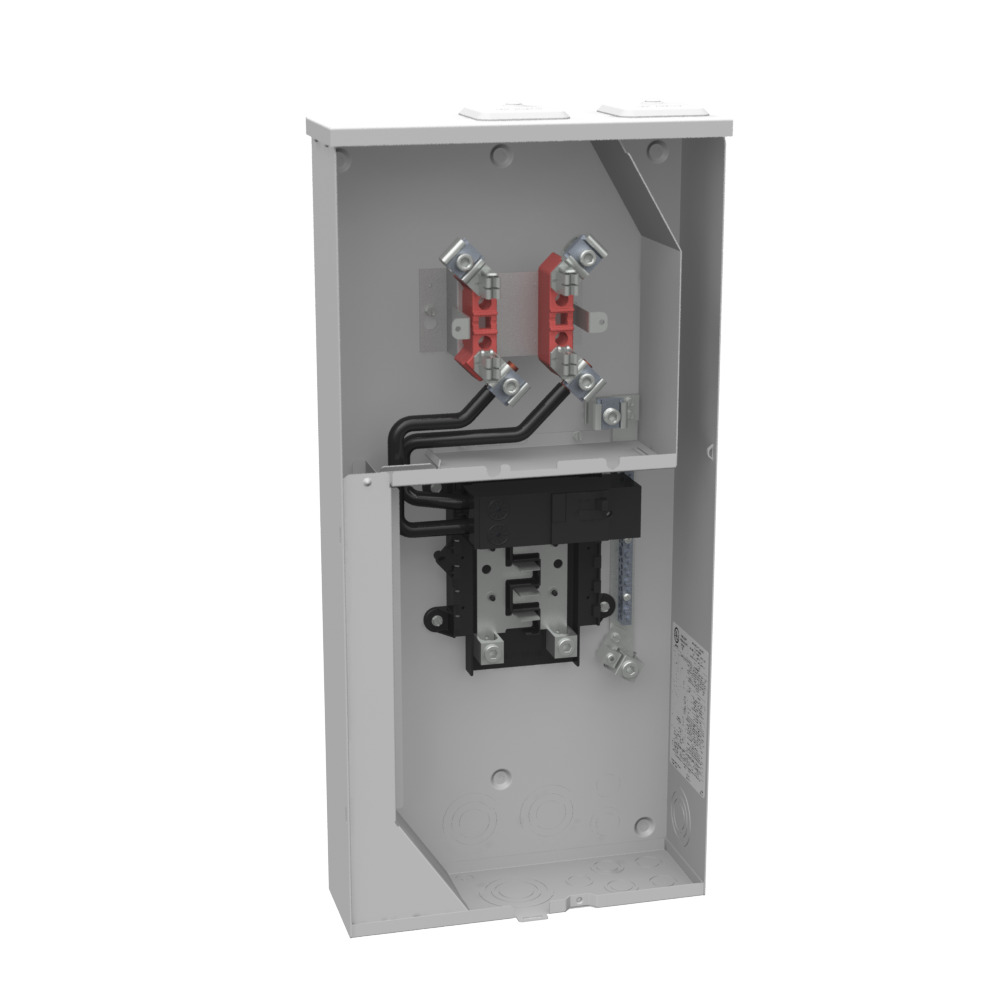

U5169-XTL-200 4 Term, Ringed, 2 Small Closing Plates, 1-200 Amp, Main Breaker, 8 Branch Circuit
- MFR:
- Milbank
- MFR #:
- U5169-XTL-200
- UPC:
- 784572475489
- Item #:
- 109896
U5169-XTL-200 4 Term, Ringed, 2 Small Closing Plates, 1-200 Amp, Main Breaker, 8 Branch Circuit
- MFR #:
- U5169-XTL-200
- UPC:
- 784572475489
- Item #:
- 109896
4 TERM RNGTP 2 SML CLS PLTS 1-200 AMP MN BRKR 8 BRANCH CKT
Manuals & Documentation
| Catalog Number | U5169-XTL-200 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 200 |
| Application | Meter Socket With Main And Load Center |
| Bypass Type | No Bypass |
| Cable Entry | Overhead or Underground |
| Enclosure | G90 Galvanized Steel with Powder Coat Finish |
| Frequency Rating | 60 Hertz |
| Insulation | Glass Polyester |
| Material | G90 Galvanized Steel With Powder Coat Finish |
| Mounting | Surface Mount |
| Number of Jaws | 4 Terminal |
| Phase | 1 |
| Standard | UL Listed;Type 3R |
| UPC | 784572475489 |
| GTIN | 00784572475489 |
| Item Type | Ring Type Meter Socket |
| Length | 4.5 |
| Length UOM | Inch |
| Width | 14.125 |
| Width UOM | Inch |
| Height | 30 |
| Height UOM | Inch |
| Size | 4.5L x 14.125W x 30H |
| Terminals | Lay In |
| Voltage Rating | Up to 240 Volts Alternating Current |
