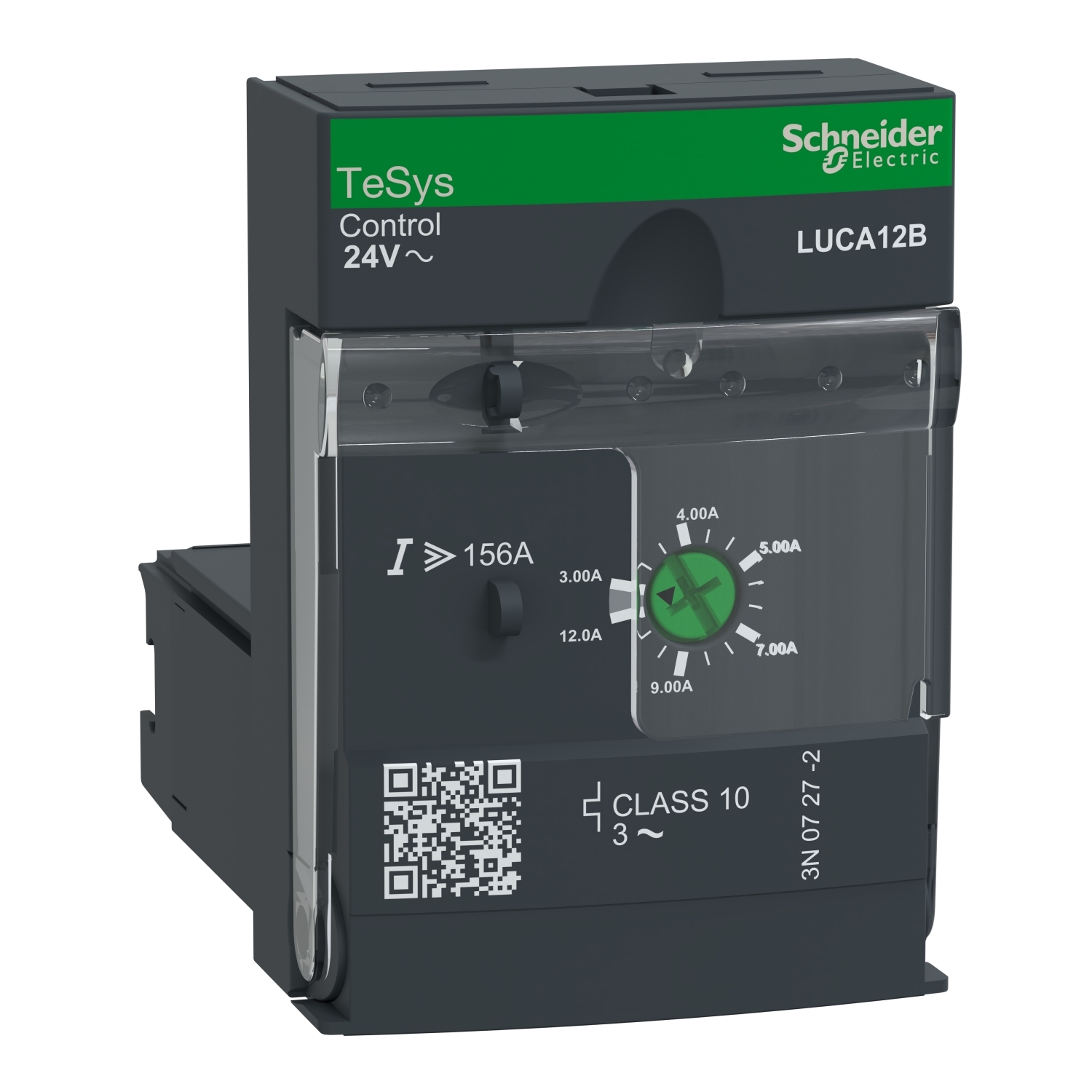

LUCA12B LUCA Manual Solid State Standard Control, 3 Poles, For Use With LUFC00 and LUFN Communication Module
- MFR:
- Schneider Electric
- MFR #:
- LUCA12B
- Item #:
- 1098
LUCA12B LUCA Manual Solid State Standard Control, 3 Poles, For Use With LUFC00 and LUFN Communication Module
- MFR #:
- LUCA12B
- Item #:
- 1098
TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
Manuals & Documentation
| Catalog Number | LUCA12B |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=640650&lang=en-us |
| GTIN | 03389110363913 |
