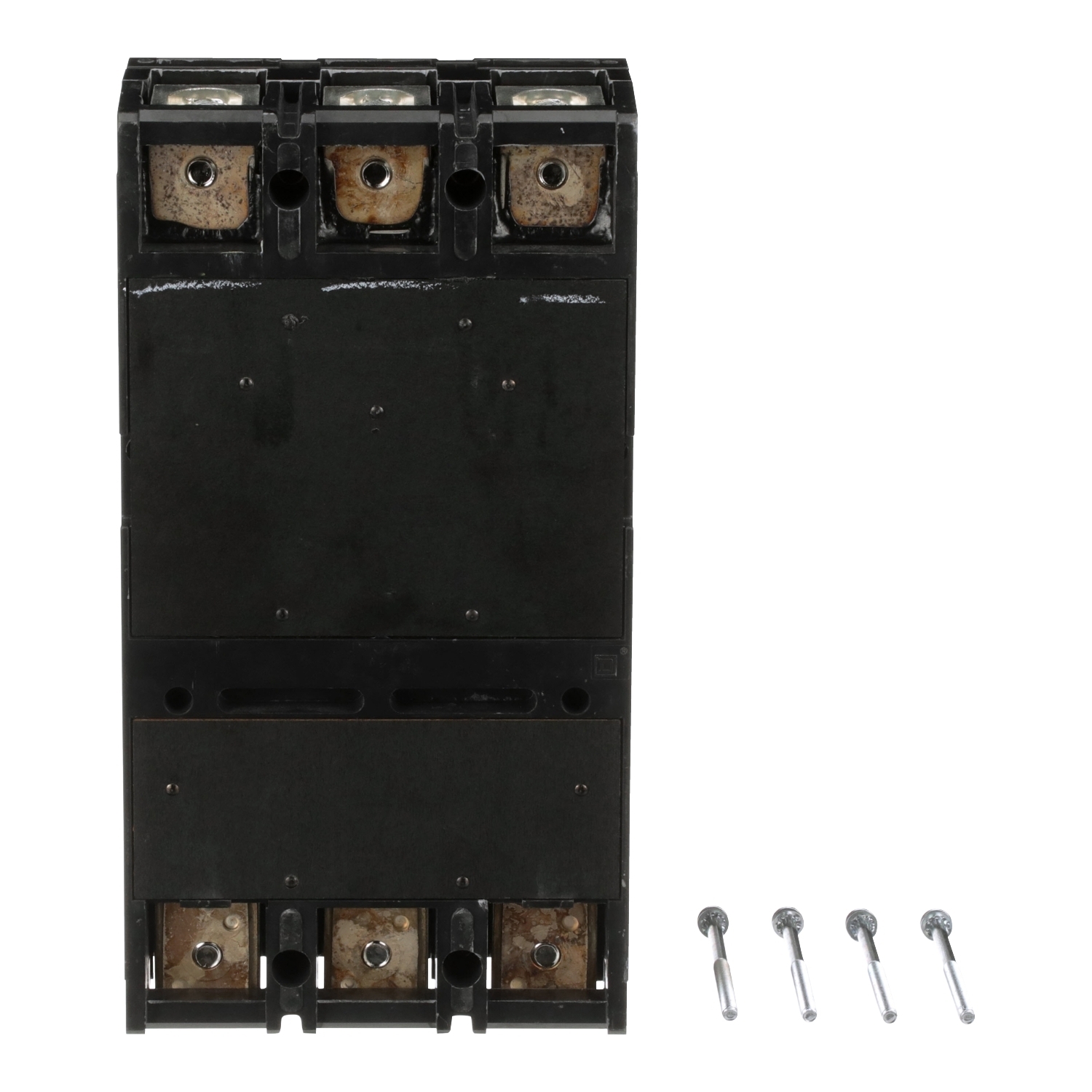

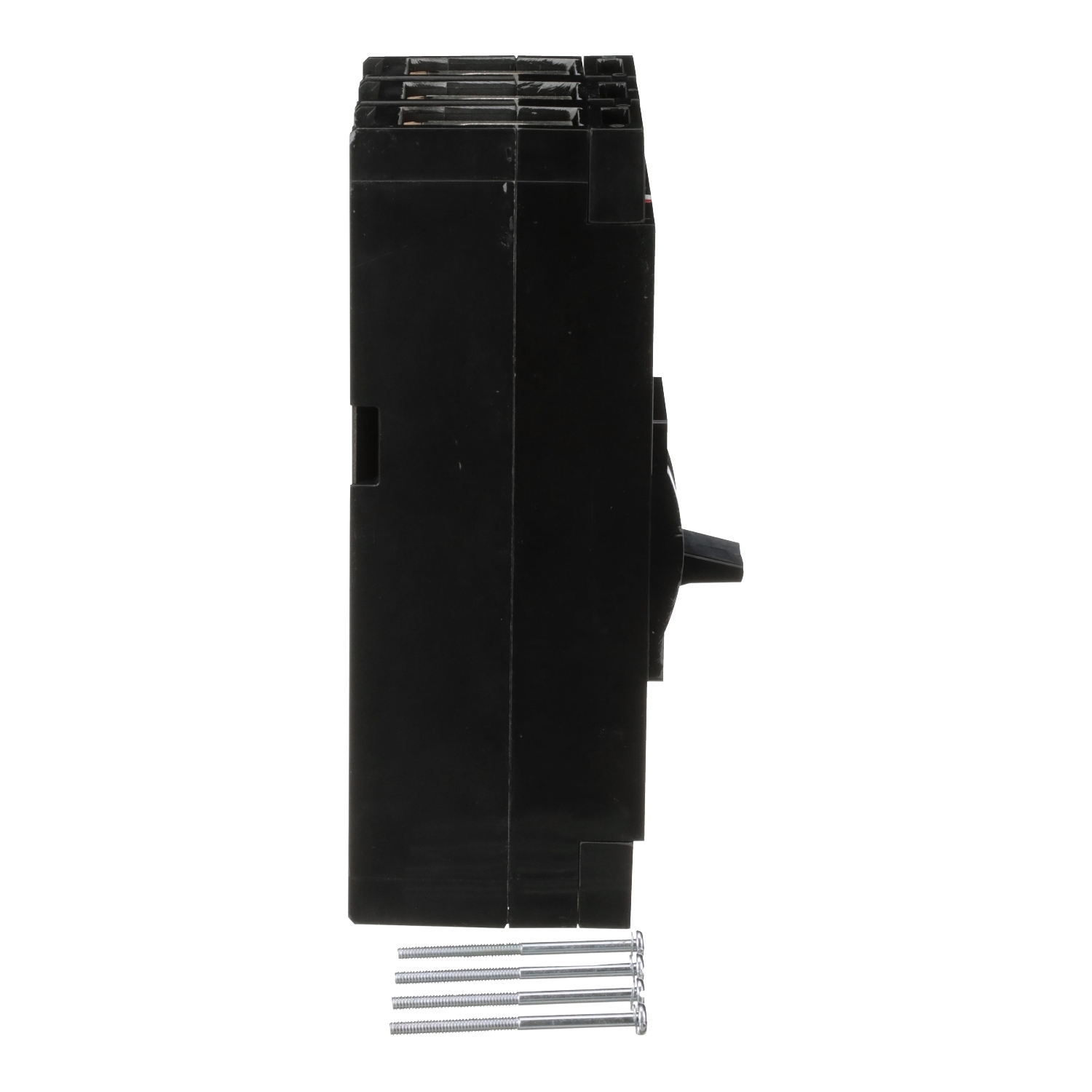

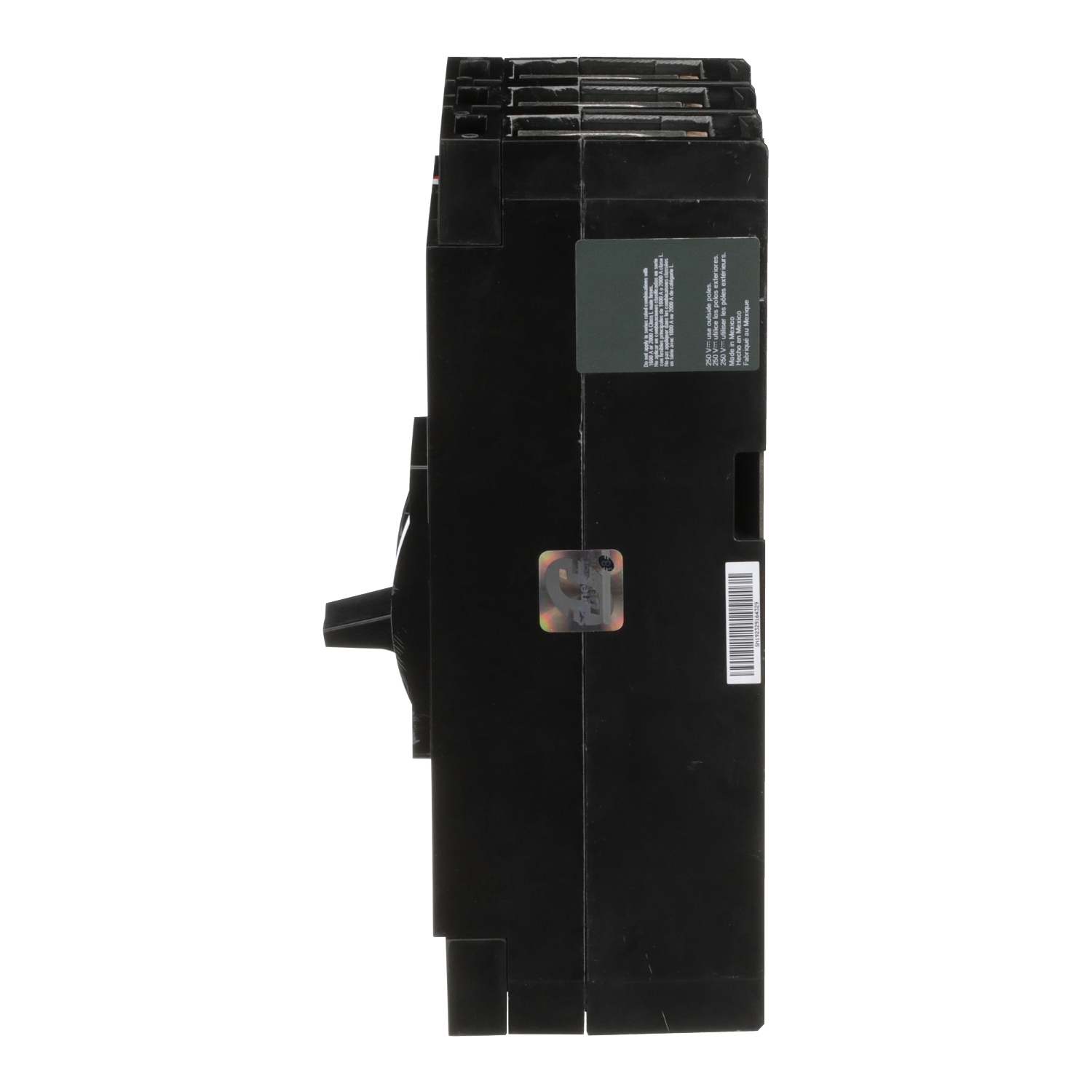

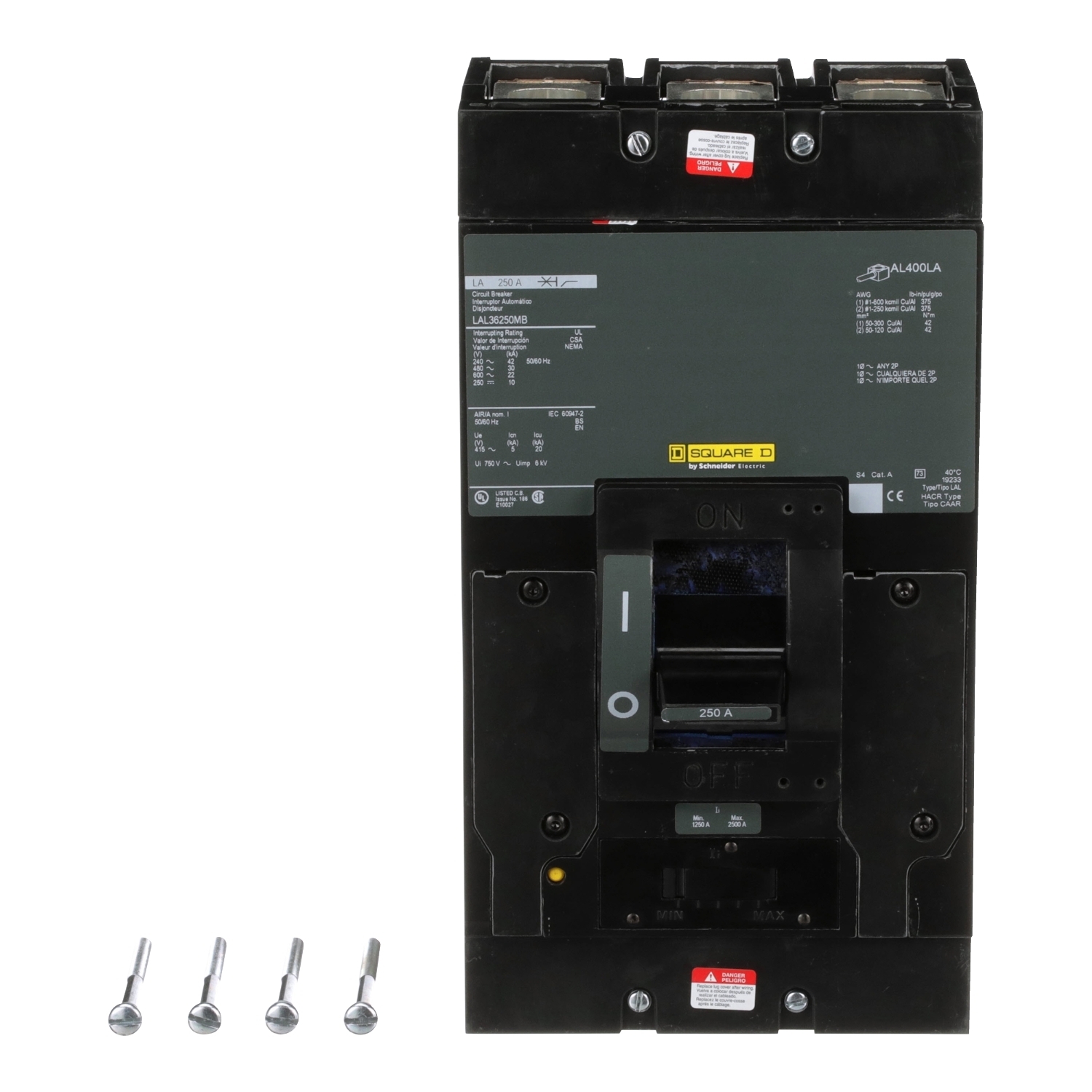

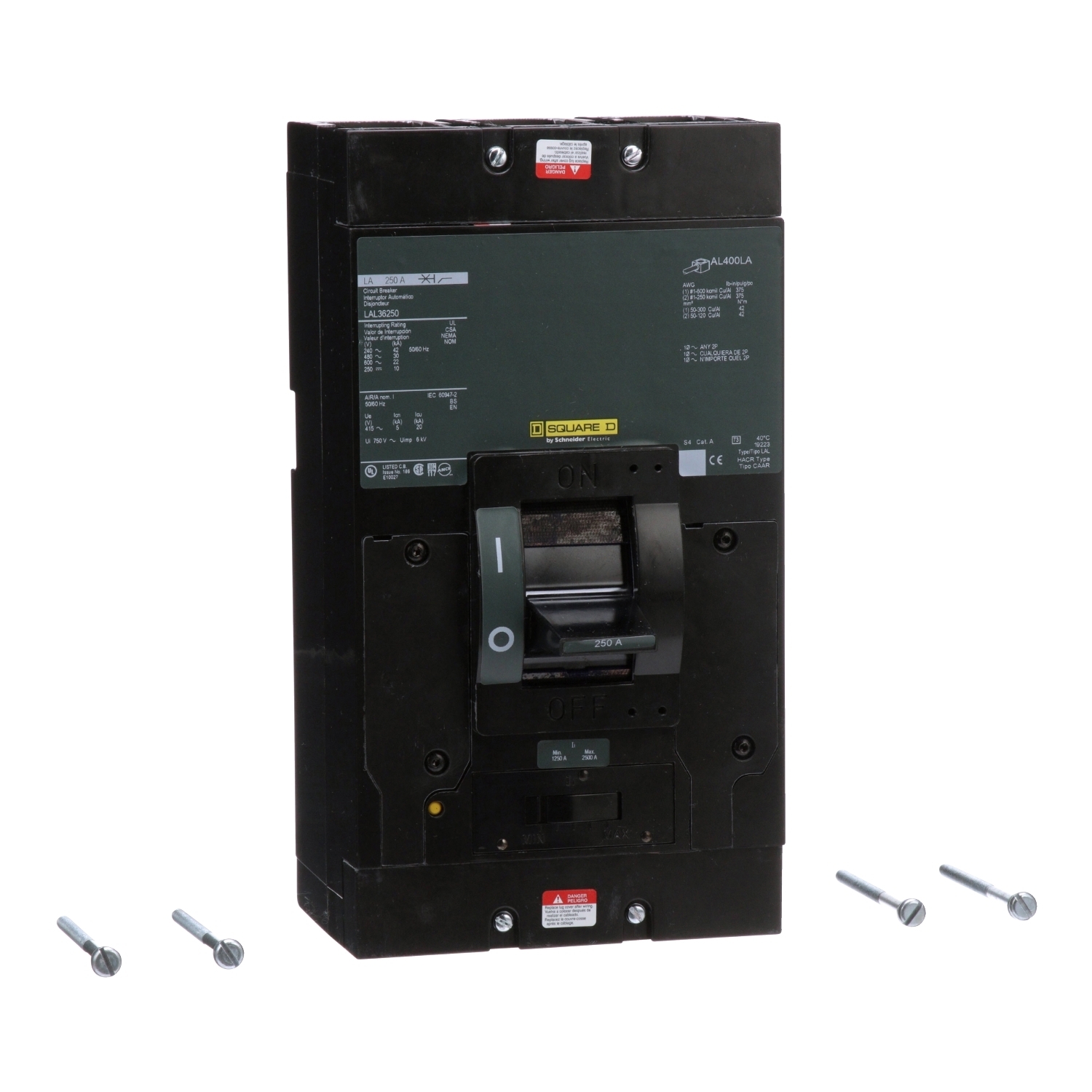

LAL36250 Molded Case Circuit Breaker, 250 Amp, 3 Pole, 600V
- MFR:
- Schneider Electric
- MFR #:
- LAL36250
- UPC:
- 785901426745
- Item #:
- 109558
LAL36250 Molded Case Circuit Breaker, 250 Amp, 3 Pole, 600V
- MFR #:
- LAL36250
- UPC:
- 785901426745
- Item #:
- 109558
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 250A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
Manuals & Documentation
| Catalog Number | LAL36250 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Connection | Lugs, load;lugs, line |
| Number of Poles | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=428155&lang=en-us |
| UPC | 785901426745 |
| GTIN | 00785901426745 |
| Item Type | Circuit breaker |
| Width | 6.0 |
| Width UOM | Inch |
| Height | 11.0 |
| Height UOM | Inch |
| Depth | 5.84 IN |
| Trip Type | Thermal-magnetic |
