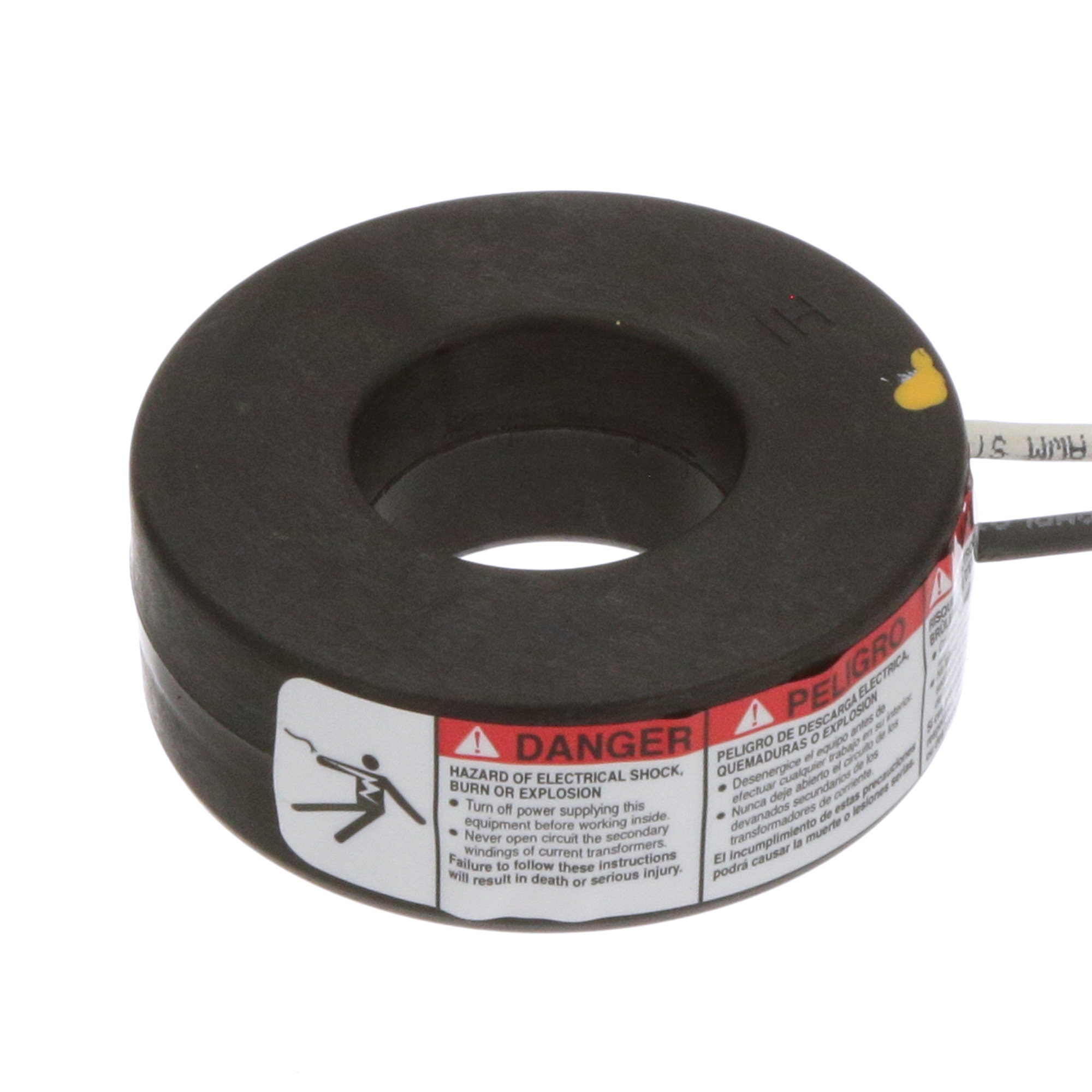

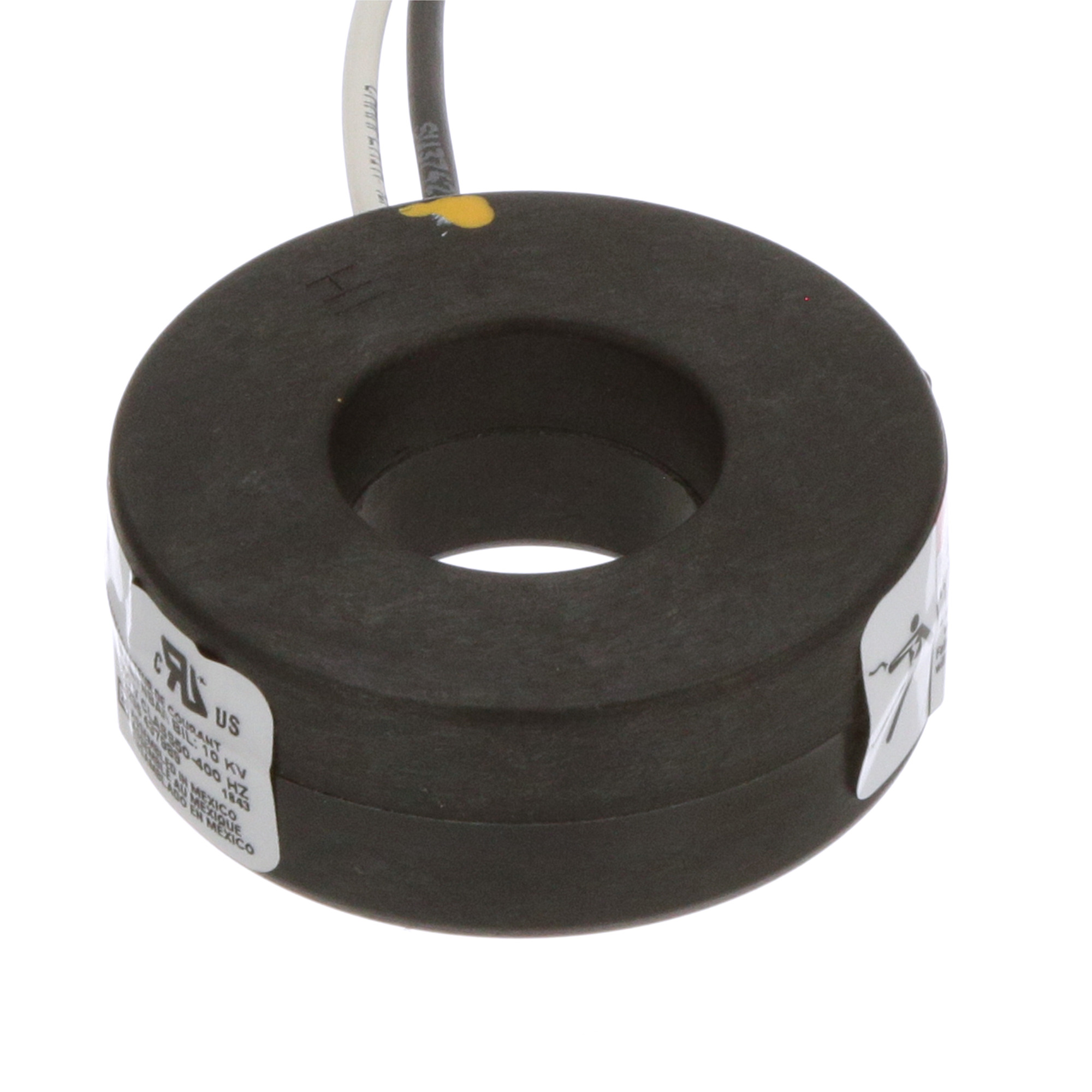

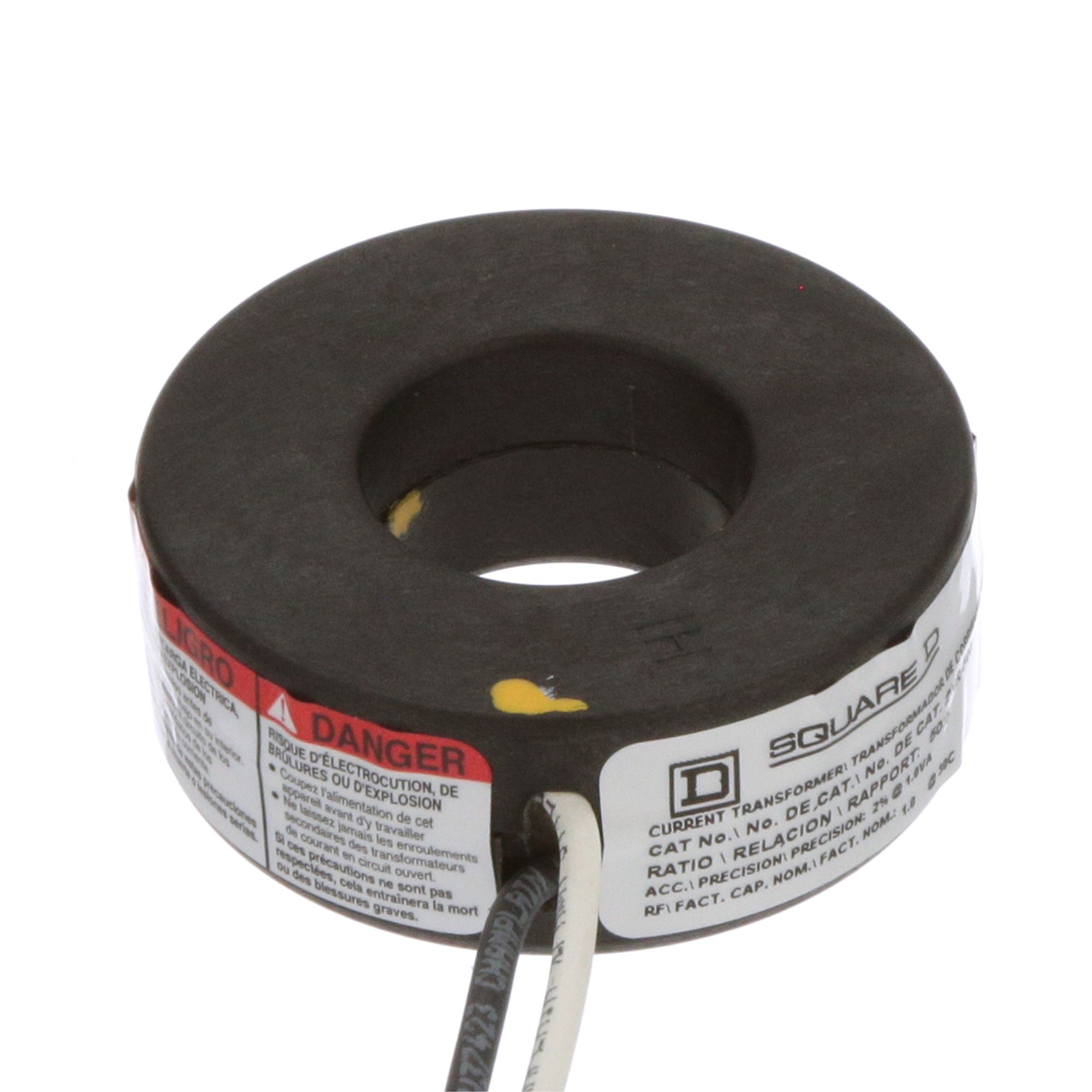

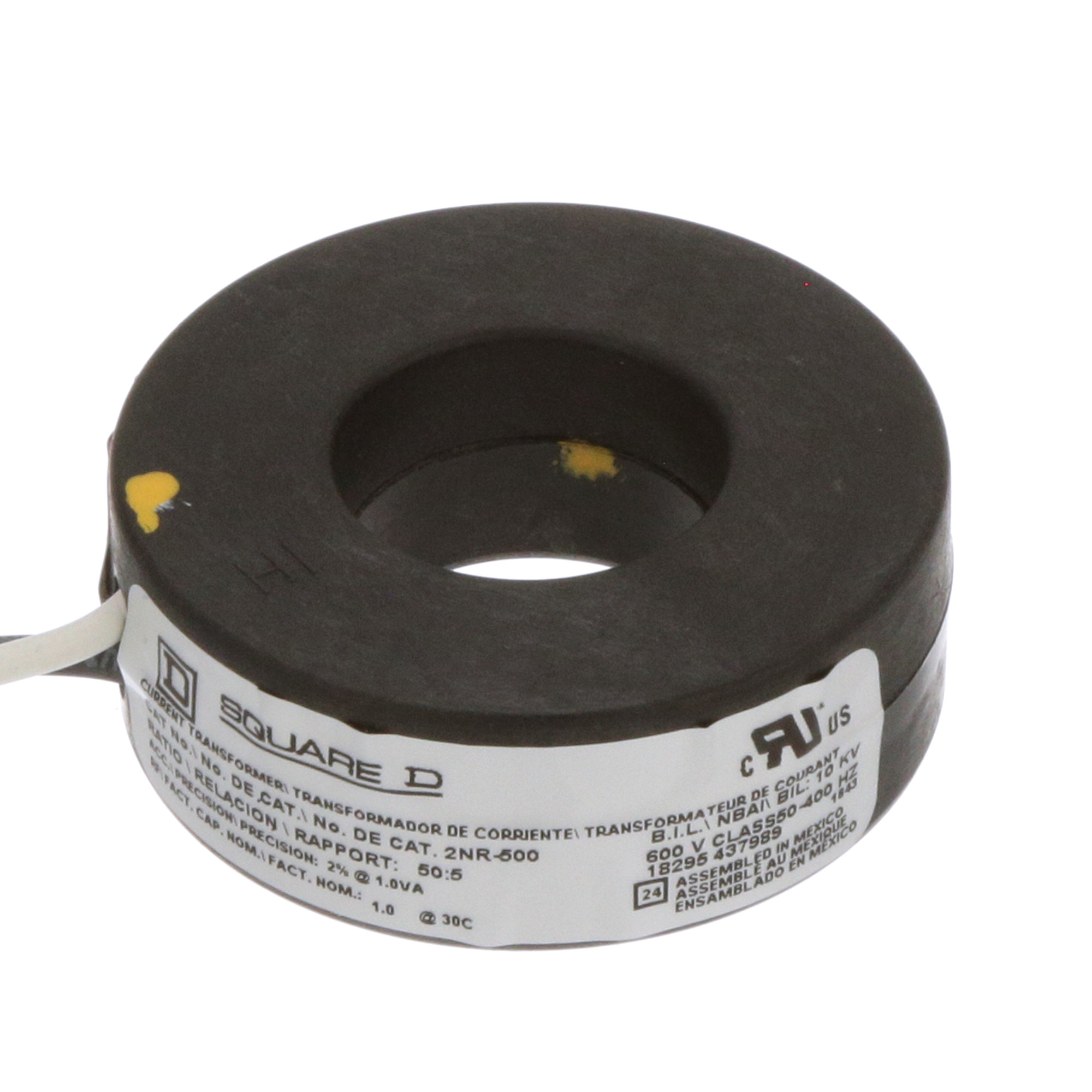

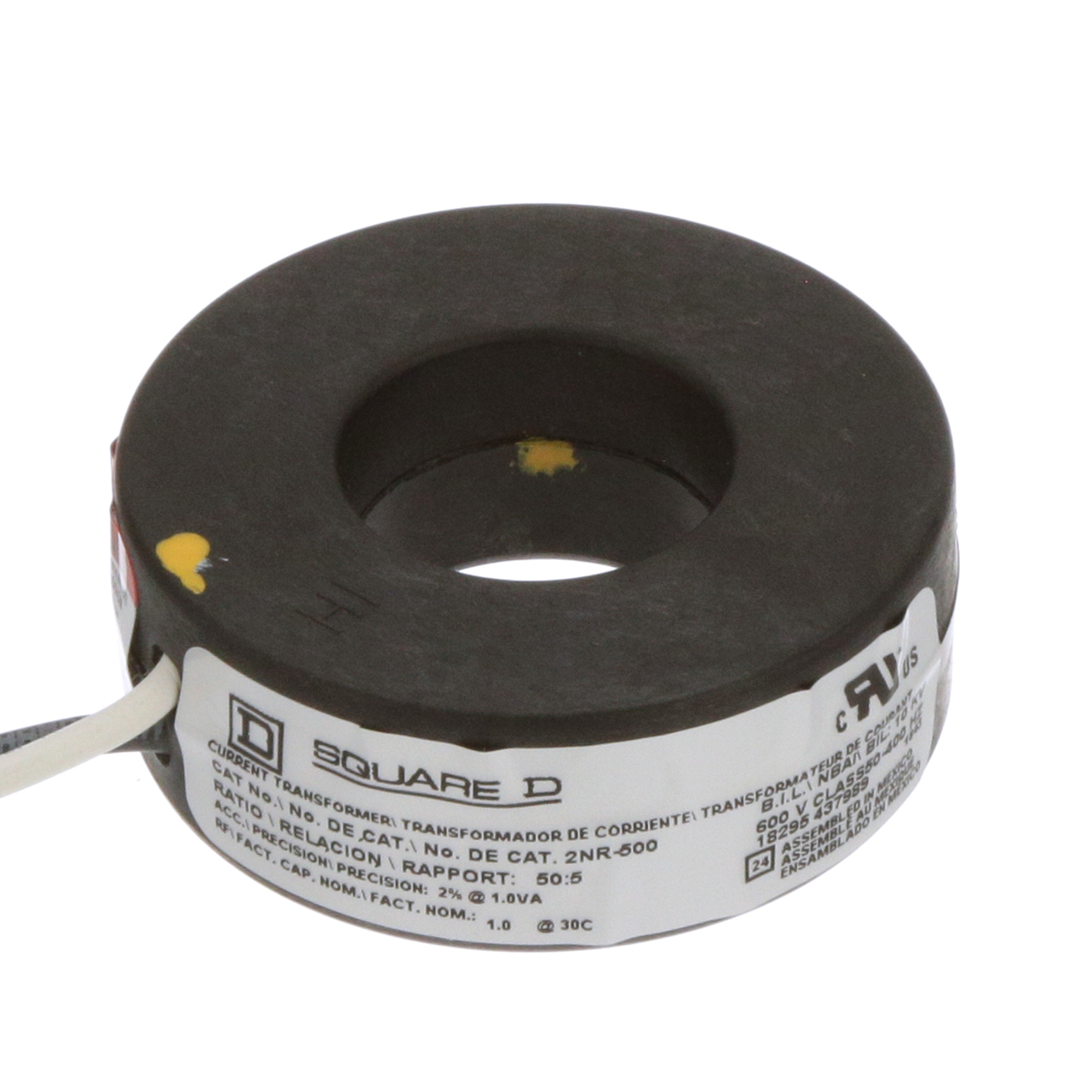

Square D offers a line of instrument current and voltage transformers that are used for measurement and control of distribution equipment. There are 5 different current transformer configuration which are General Purpose Round, Toridal, Bushing, Rectangular, and Split Core configurations. There are also 3 different type of voltage transformers which have varying levels of accuracy for different applications. This product is current transformer with a current rating ratio of 50 to 5 with a window size of 1 and 1/8 inch with a rated power of 1 VA. This transformer is NEMA 1 degree of protection and is UL, CA and ANSI certified.

Manuals & Documentation
Catalog Number 2NR500
Manufacturer Schneider Electric
Brand Square D by Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application DESIGNED FOR AMMETER USE
Connection Flying leads 24 in, AWG 16
Enclosure NEMA 1
Mounting Direct
Phase 1
Special Features GENERAL PURPOSE CURRENT TRANSFORMER,FLYING LEADS 24 IN, AWG 16
Standard UL Recognized
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=449685&lang=en-us
UPC 785901098935
GTIN 00785901098935
Item Type General Purpose Current Transformer
Size Ø 1.13 IN
