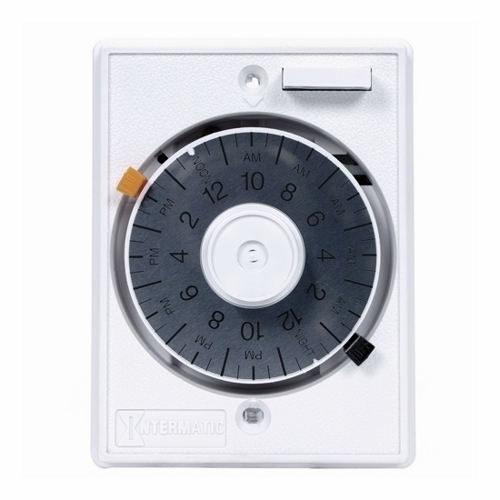

E1010 E1000 Heavy Duty Mechanical Timer Switch With Permanent Tripper, 1/2 to 22-1/2 hr Setting, 125 V AC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- E1010
- UPC:
- 078275440005
- Item #:
- 10923
E1010 E1000 Heavy Duty Mechanical Timer Switch With Permanent Tripper, 1/2 to 22-1/2 hr Setting, 125 V AC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- E1010
- UPC:
- 078275440005
- Item #:
- 10923
These Heavy-Duty In-Wall Timers are ideal for turning on lights, fans, pumps and other heavy duty loads for energy savings, security and convenience. The timer provides up to 12 ON and 12 OFF operations per day.
Manuals & Documentation
| Catalog Number | E1010 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SPST |
| Contact Configuration | 1 NO |
| Contact Rating | 15 AMPS |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Includes Two ON and OFF Trippers, Dial Accommodates a Total of 12 ON and 12 OFF Events, Turns ON/OFF Heavy-Duty Loads for Energy Savings and Security and Convenience, Mounts to Any Standard Junction Box, Manual Override, 1 Year Warranty |
| Standard | cCSAus Certified |
| UPC | 078275440005 |
| GTIN | 00078275440005 |
| Item Type | Heavy Duty In-Wall |
| Size | 4-1/4 HEIGHT X 3-1/4 WIDTH X 1-3/8 DEPTH IN, 10.8 HEIGHT X 9.5 WIDTH X 3.5 DEPTH CM |
| Timing Range | 1/2 - 22-1/2 HR |
| Voltage Rating | 125 |
| Wattage | 1800 W |
