Ideal

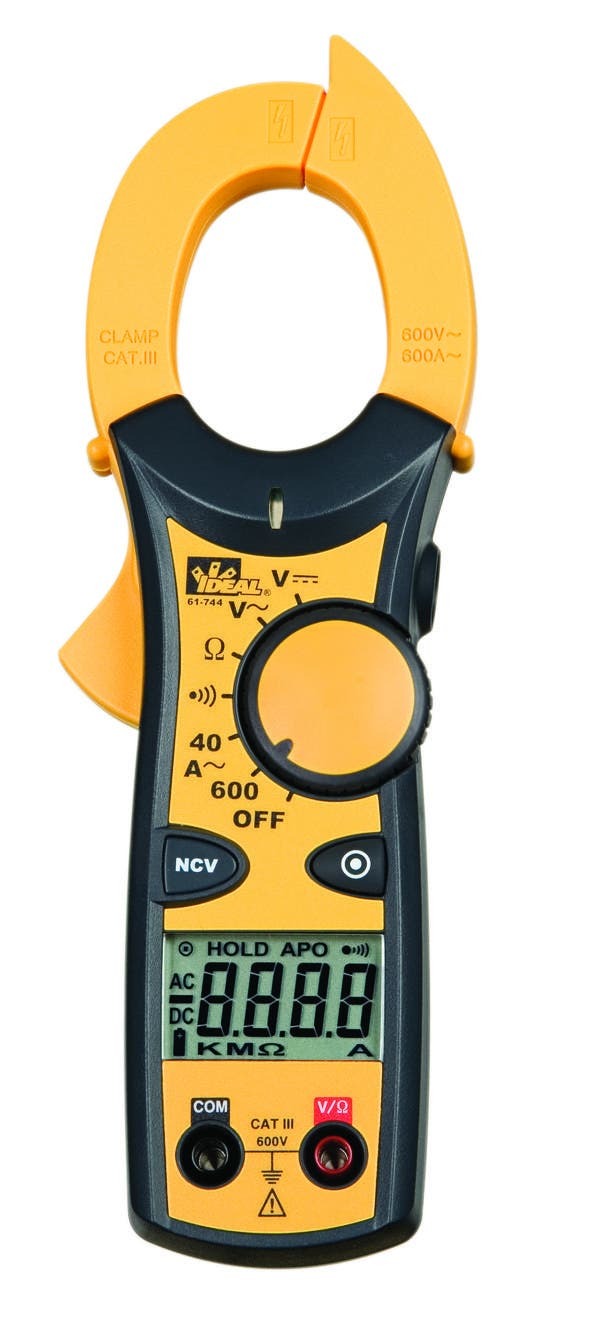

IDEAL, Clamp Meter, Clamp-Pro, 600 Amp Clamp Meter, Voltage Rating: 400 to 600VAC/DC, Resistance: 400 OHM/4 KOHM/ 40 KOHM/400 KOHM At 1 PCT + 4 Digits Accuracy, 4 MOHM At 1.5 PCT + 4 Digits Accuracy, 40 MOHM At 3 PCT + 5 Digits Accuracy, Accuracy: Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H, Display 3-3/4 Digit LCD With 4000 Counts

MFR:
Ideal Industries
MFR #:
61-744
UPC:
783250682386
Item #:
109082

Measures up to 600A ACNon-contact voltage indicator (70V-600VAC)ContinuityTapered jaws with hook tipAuto/manual rangingData holdAuto power offLow battery indicator

Manuals & Documentation
Catalog Number 61-744
Manufacturer Ideal Industries
Brand Ideal
Country of Origin United States
Made in USA Yes
Accuracy Stated Accuracy At 23 DEG C Plus Or Minus 5 DEG C, Less Than 75 PCT R.H
Battery 400 HR Continuous With Alkaline (61-744), 250 HR Continuous With Alkaline (61-746) (2) 1.5 V "AAA" Batteries (NEDA R03) Includes An Isolated Battery Compartment
Display 3-3/4 Digit LCD With 4000 Counts
Resistance 400 OHM/4 KOHM/ 40 KOHM/400 KOHM At 1 PCT + 4 Digits Accuracy, 4 MOHM At 1.5 PCT + 4 Digits Accuracy, 40 MOHM At 3 PCT + 5 Digits Accuracy
Special Features Features: Measures Up To 600AAC; Non-Contact Voltage Indicator (70V - 600VAC); Tapered Jaws With Hook Tip; Auto/Manual Ranging; Data Hold; Auto Power Off; Low Battery Indicator; CAT III- 600V; 2-Year Warranty; Auto/Manual Ranging Clamp Meter; Non-Contact Voltage (70-600VAC); Measures 600 AAC Current; Measures AC/DC Voltage And Resistance; Audible Continuity; Data Hold; Auto Power Off; Low Battery Indicator; Compact Jaws For Reaching Into Tight Spaces; Electronic Overload Protection On All Ranges; 61-744 Model Is Averaging Sensing, Rms Calibrated; Ac Voltage: 400 V At 1.2 PCT Plus 5 Digits Accuracy, 600 V At 1.5 PCT Plus 5 Digits Accuracy; Continuity: Audible Indication Less Than 25 OHM Response Time: 500 MS; Replacement Part: 1.5 V (AAA) Battery, TL-100 Test Leads With/Alligator Clips; Carrying Case: C-90 Nylon Carrying Case; Dc Voltage: 400/600 V At 0.5 PCT Plus 2 Digits Accuracy; Ac Current: 40 AMP/400 AMP/600 AMP At 1.7 PCT Plus 6 Digits Accuracy, 40 AMP/400 AMP/600 AMP At 3 PCT Plus 6 Digits Accuracy; Jaw Size: 1.250 IN; Includes: Carrying Case and Test Leads (2) 1.5 V "AAA" Batteries, Operating Instructions; Max Conductor Size: 1.500 IN; Input Impedance: 10 MOHM; Warranty: 2 year
Standard CAT III-600V, UL 61010 Listed, CE, C 12966
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250682386
GTIN 00783250682386
Item Type 600 Amp Clamp Meter
Dimensions 8 IN Height X 2.600 IN Width X 1.500 IN Depth
Temperature Rating 32 DEGF To 122 DEGF (0 DEGC To 50 DEGC) At Less Than 70 PCT R.H Operating Temperature, -4 DEGF To 140 DEGF (-20 DEGC To 60 DEGC) At Less Than 80 PCT R.H Without Battery Storage Temperature
Voltage Rating 400 to 600VAC/DC
