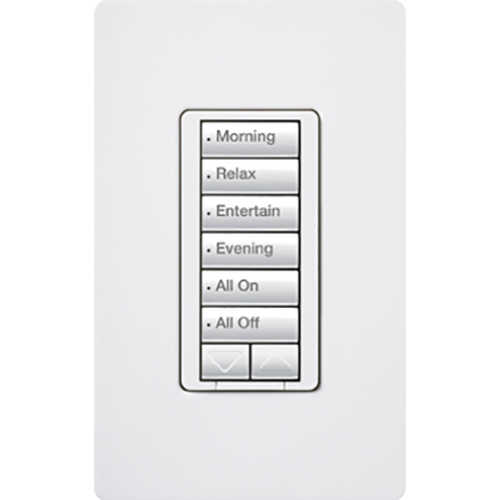

RRD-H6BRL-WH RadioRA 2 Maestro 6-Button Hybrid Keypad, 120 VAC, 1 Poles, Fade/Toggle On/Off Operation, White

Lutron Electronics

Product Details

Specifications

Number of Poles	1
Special Features	6 button with raise/lower keypad and 450W/450VA two-wire or neutral-wire dimmer (Incandescent/Halogen/Magnetic Low Voltage), 120V. Great for retrofit applications since they eliminate the need to install two separate devices. Connecting the neutral wire to a Hybrid keypad allows a lower minimum load to be used. Normal keypad operations will be available if the attached load is not installed or if the lamp is burned out. Can be controlled as part of a lighting control system and incorporates advanced features such as fade on/fade off and rapid full on. Easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. Buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. Front accessible service switch for safe lamp replacement. Wallplate sold separately.
Standard	UL, FCC, CSA, IC, COFETEL, NOM
UPC	027557869003
GTIN	00027557869003
Item Type	Hybrid keypad dimmer
Size	4.69 x 2.94
Environmental Conditions	0 to 90% humidity, non-condensing. Indoor use only.
Operating Temperature	32 to 104 F
Voltage Rating	120
Wattage	450 W
