Appleton

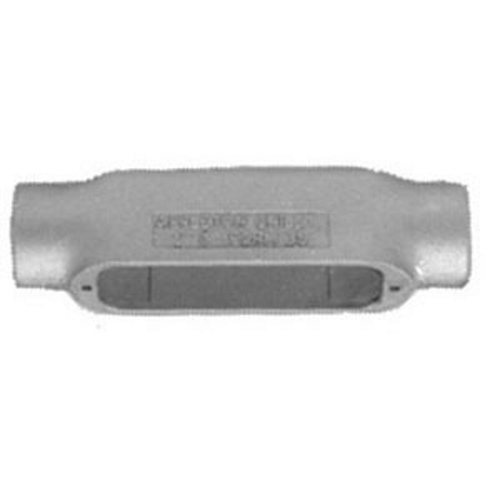

C250-M Unilets Type-C Conduit Outlet Body, 2-1/2 in Hub, Form 35 Form, 143 cu-in Capacity, Malleable Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
C250-M
UPC:
781381165808
Item #:
107863

Form 35 UNILETS Type C Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 35, Length: 15.13 IN, Width: 4.31 IN, Height: 3.38 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tap

Manuals & Documentation
Catalog Number C250-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Form 35
Hub Size 2-1/2 IN
Material Malleable Iron
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Exclusive built-in easy-pulling rollers to facilitate cable pulling through hubs and help eliminate cable damage; Wiring capacity: 143 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381165808
GTIN 00781381165808
Item Type Type C Conduit Outlet Body
Length 15.13
Length UOM Inch
Width 4.31
Width UOM Inch
Height 3.38
Height UOM Inch
