SQUARE D

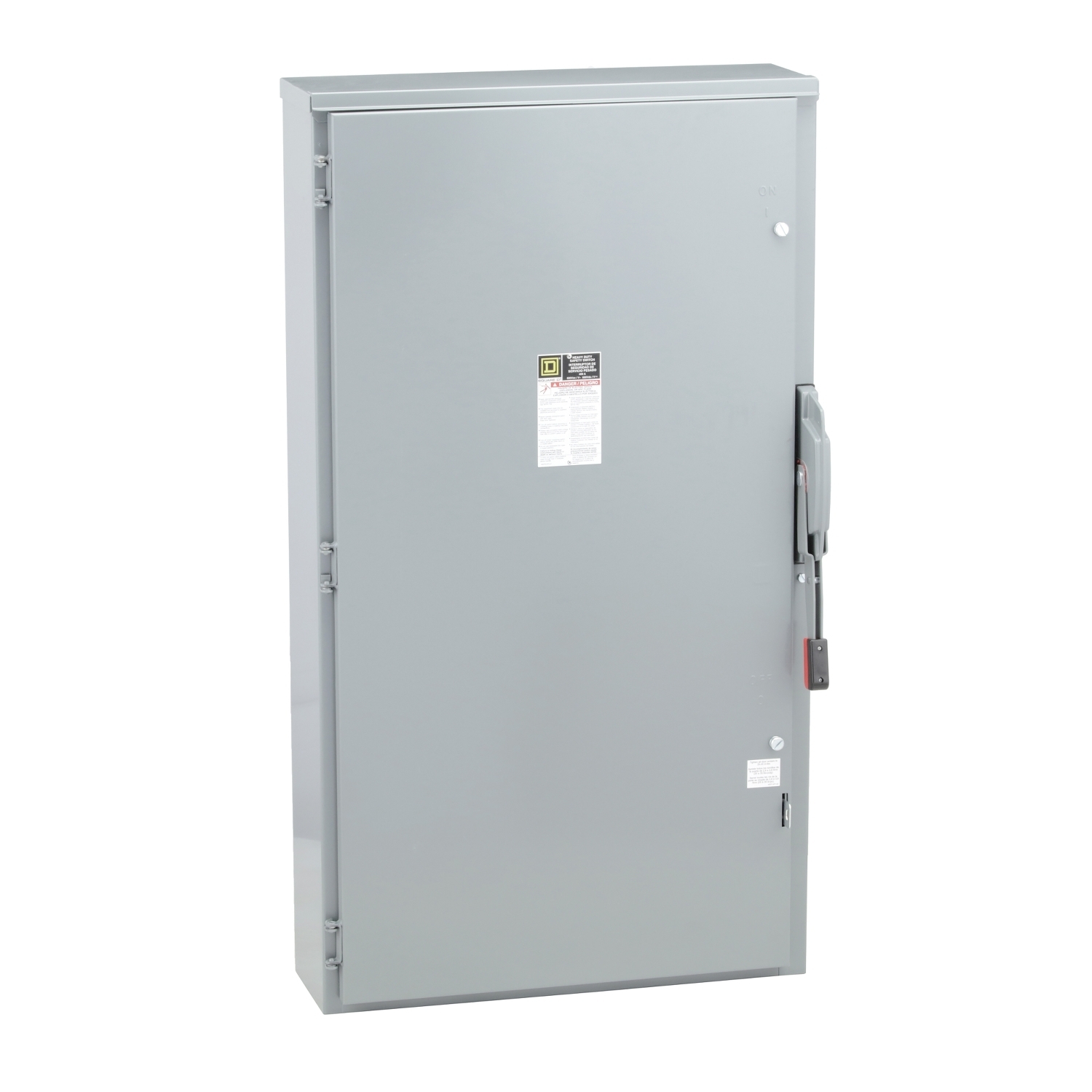

H326R Heavy Duty Fusible Rainproof Safety Switch, 240 V AC/250 V DC, 600 A, 200 hp at 240 VAC, 50 hp at 250 VDC, 3NO 3 Form A Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
H326R
UPC:
785901451471
Item #:
107357

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 200A with voltage of 240 VAC and 250 VDC. It is rated when using time delay fuses of 60 HP at 240 VAC three phase and 40 HP at 250 VDC. This switch has a 3 wire configuration and is rated for AWG 6 to 250 kcmil aluminum and copper wire. This device has enclosure rating of NEMA 12 and it is made of galvannealed steel. It has a height of 29 in, width of 17.25 in and has a depth of 8.75 in. It is UL listed with the file E2875.

Manuals & Documentation
Catalog Number H326R
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H or K;R or J
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364163&lang=en-us
UPC 785901451471
GTIN 00785901451471
Width 27.88
Width UOM Inch
Height 50.31
Height UOM Inch
Depth 10.13 IN
