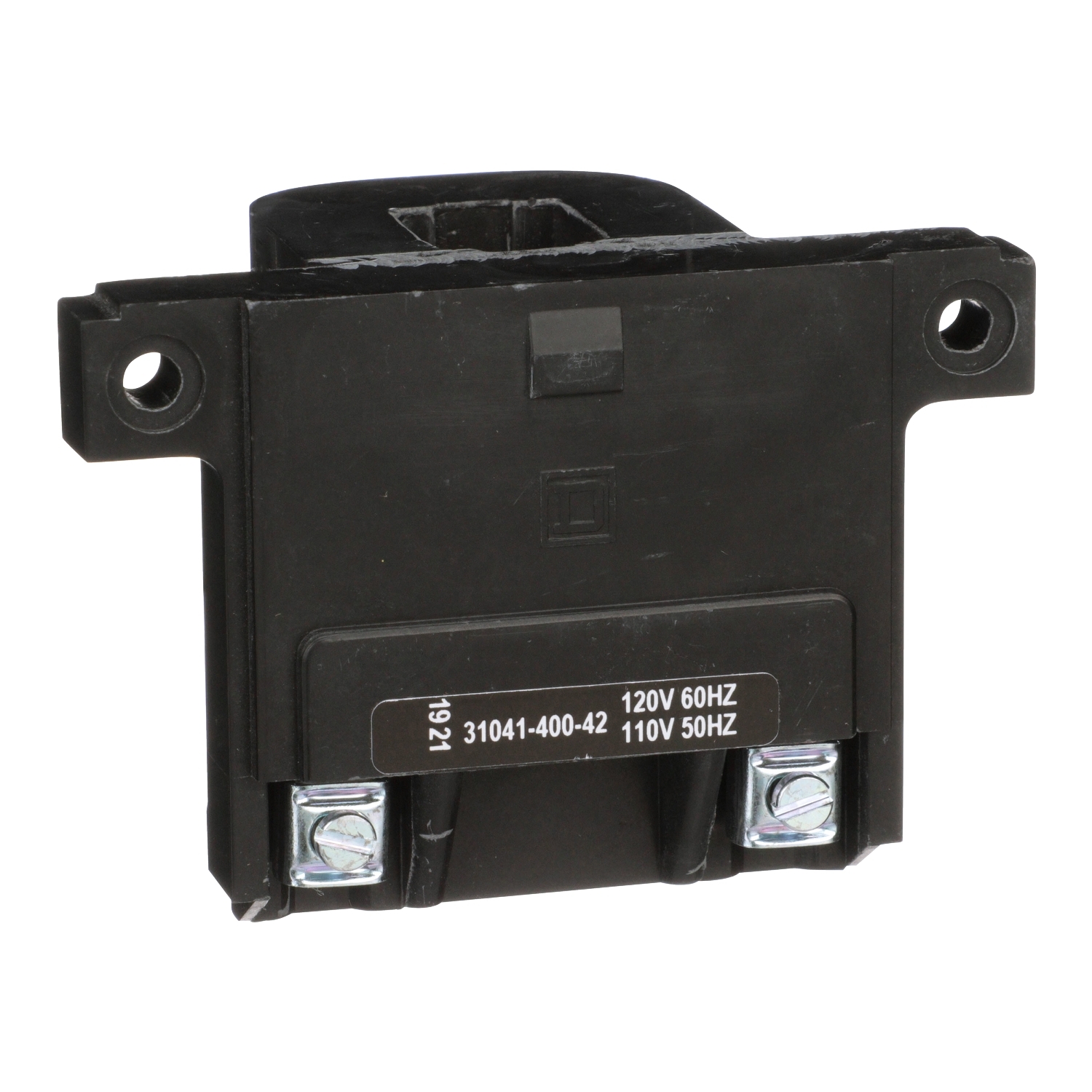

3104140042 Coil, NEMA 00/0/1/1-P, 110/115/120 V AC, 50/60 Hz, For Use With Class 8536 Type SA (Series A)/SB/SC Starter, Class 8502 Type SA (Series A)/SB/SC Contactor and Class 8903 Type SM Lighting Contactor
- MFR:
- Schneider Electric
- MFR #:
- 3104140042
- UPC:
- 785901229124
- Item #:
- 107061
3104140042 Coil, NEMA 00/0/1/1-P, 110/115/120 V AC, 50/60 Hz, For Use With Class 8536 Type SA (Series A)/SB/SC Starter, Class 8502 Type SA (Series A)/SB/SC Contactor and Class 8903 Type SM Lighting Contactor
- MFR #:
- 3104140042
- UPC:
- 785901229124
- Item #:
- 107061

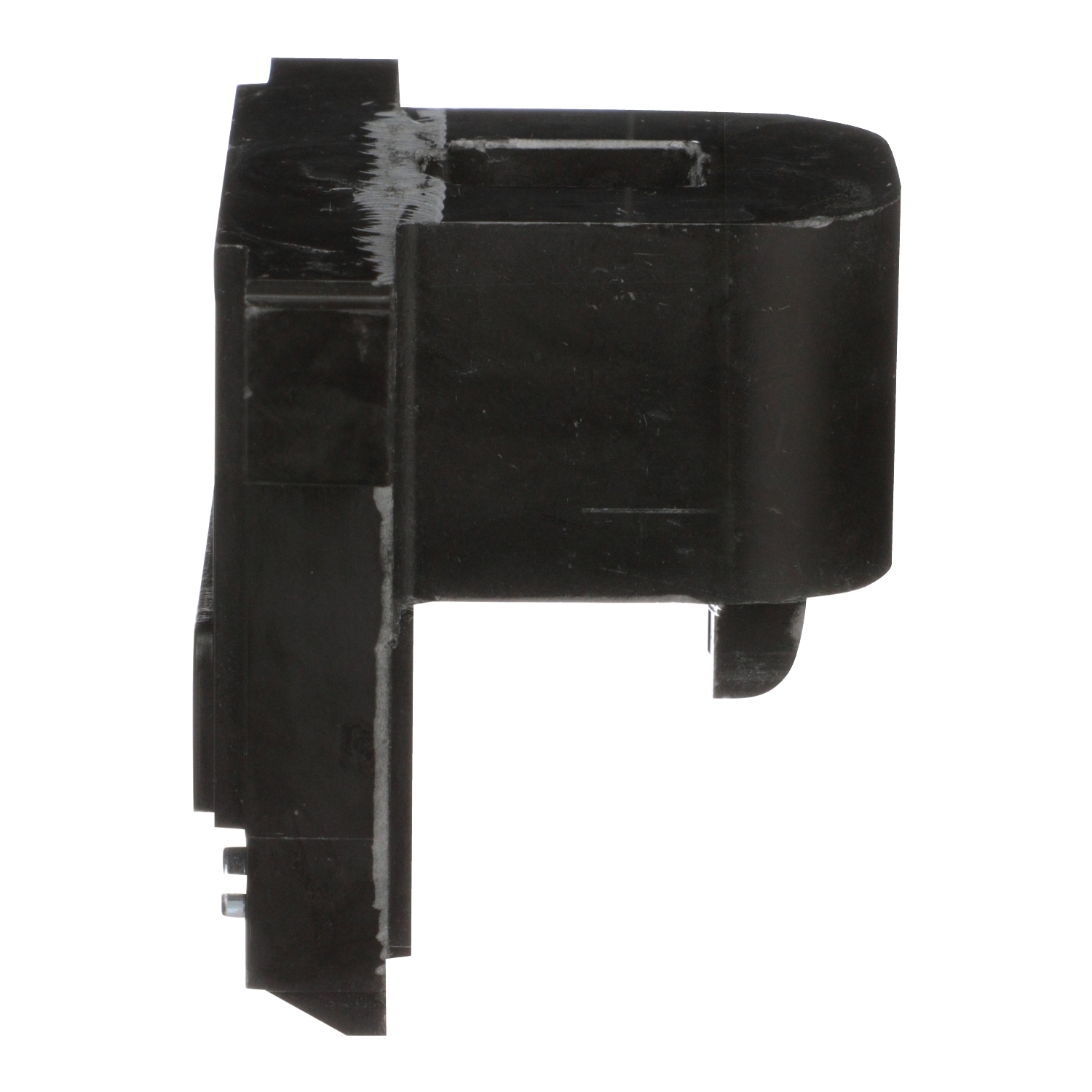

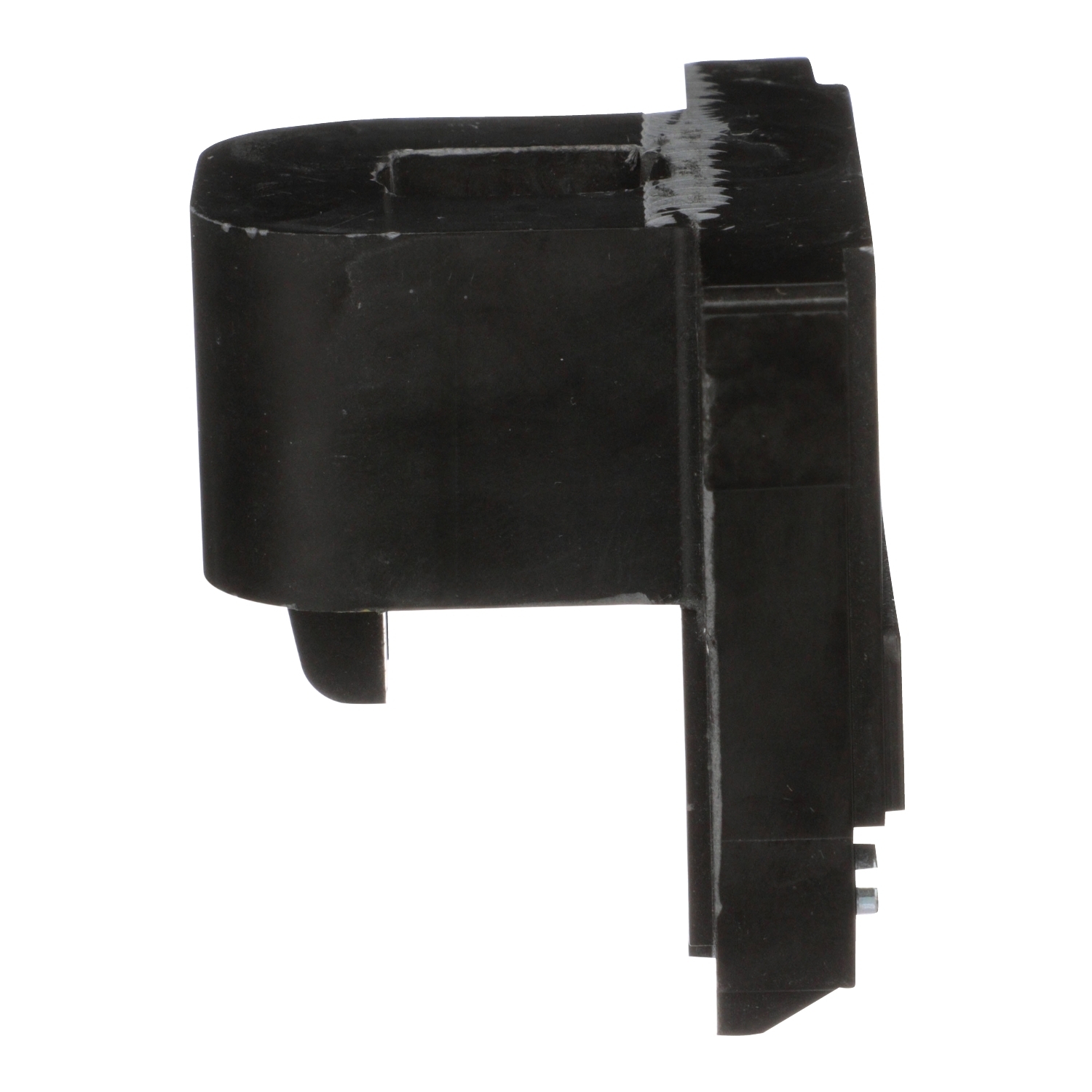

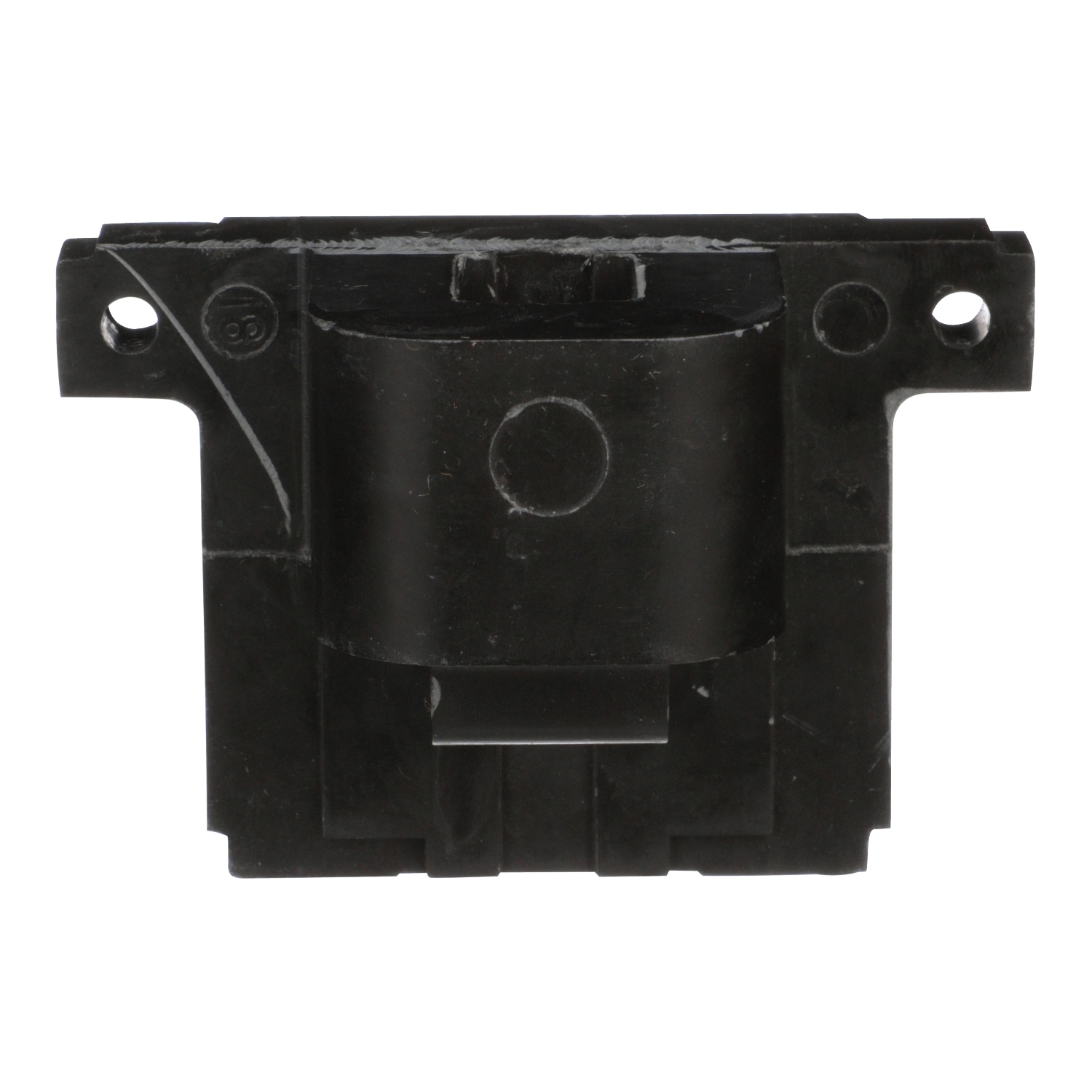

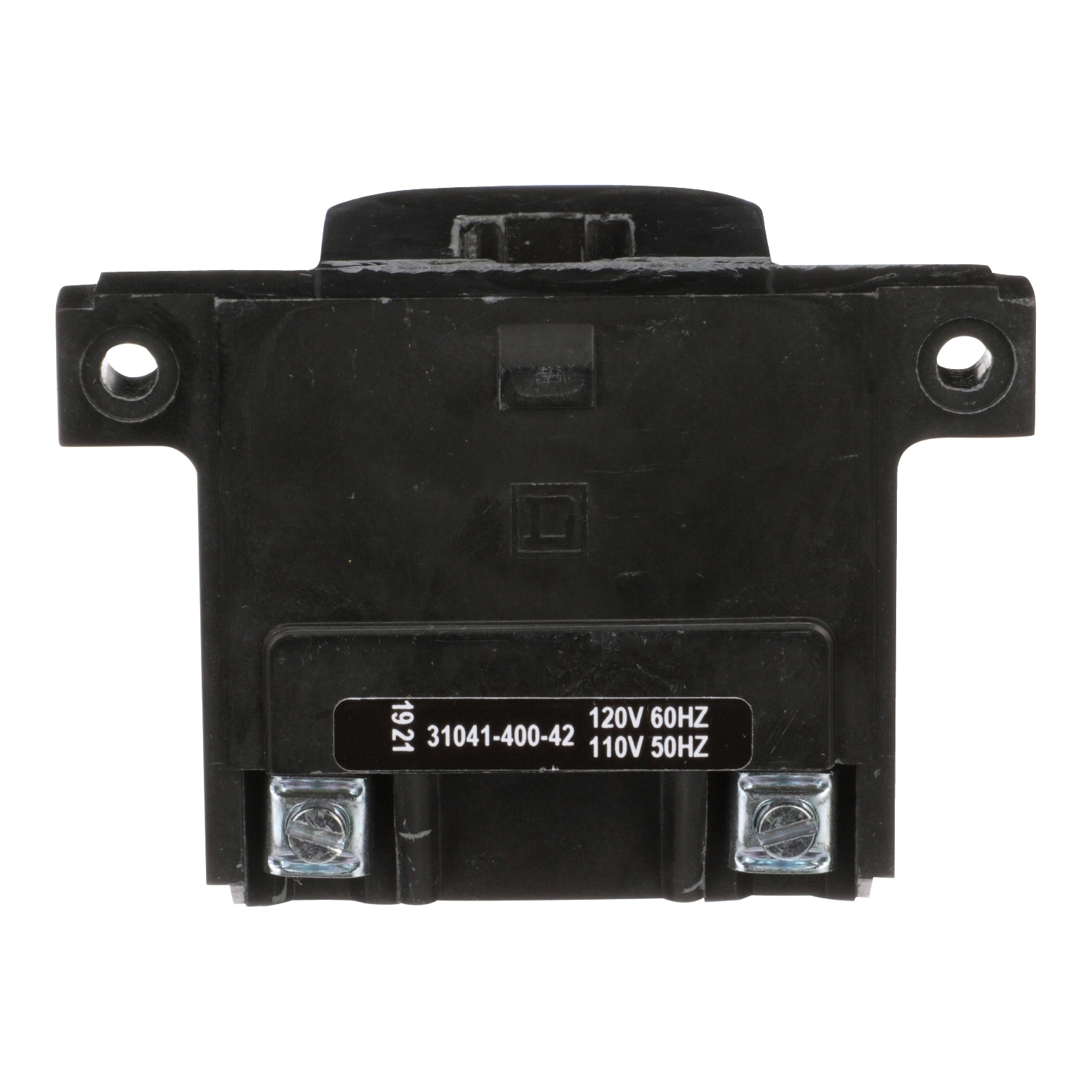

The coil can be easily replaced in Type S contactors or starters. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SA, series A, 8502SB, or 8502SC contactor, in an 8536SA, series A, 8536SB, or 8536SC starter or an 8903SM lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 245 VA. It has an average sealed consumption of 27 VA. This coil has a height of 54.7 mm, a width of 81.5 mm and a depth of 48.3 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Manuals & Documentation
| Catalog Number | 3104140042 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901229124 |
| GTIN | 00785901229124 |
| Item Type | Coil |
