Square D

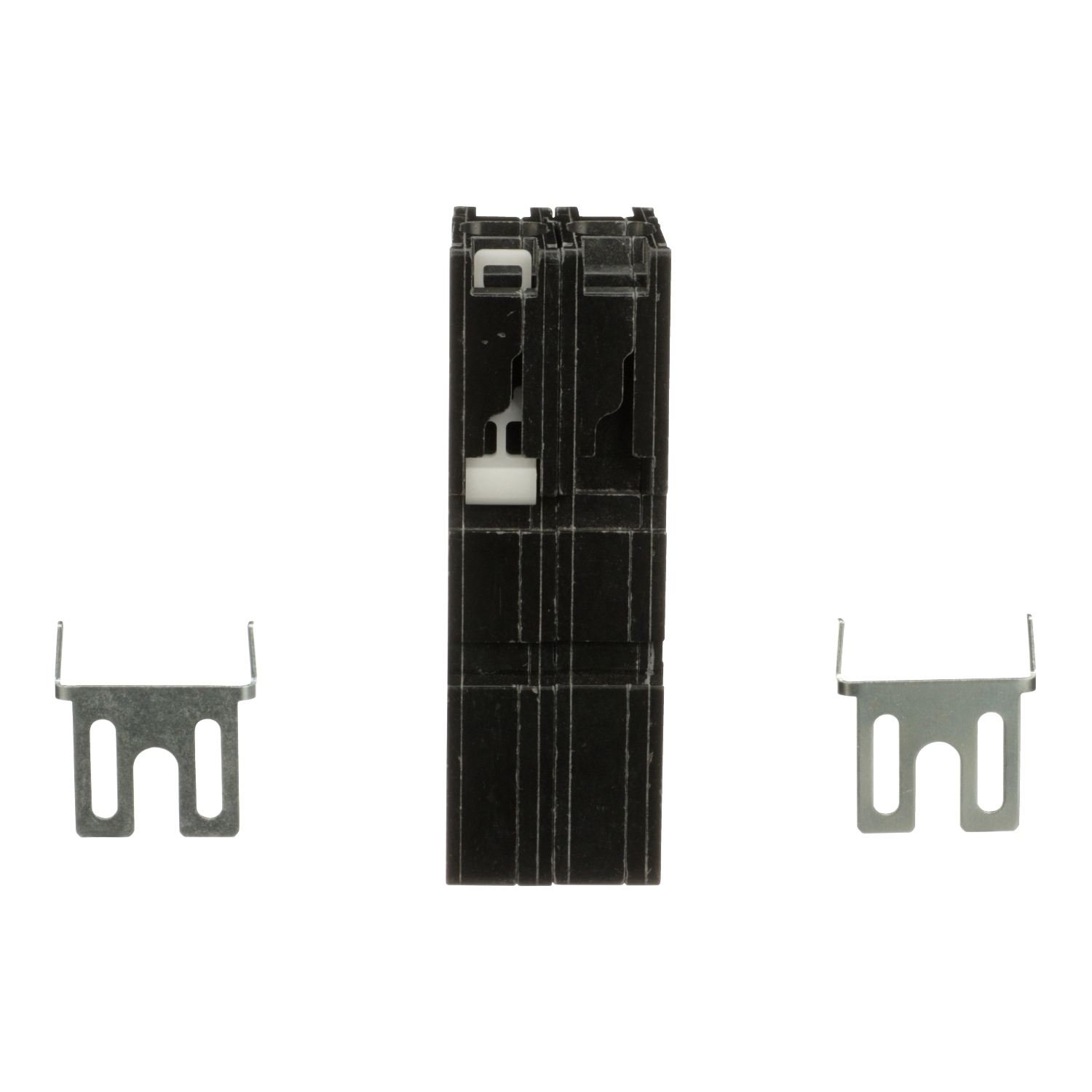

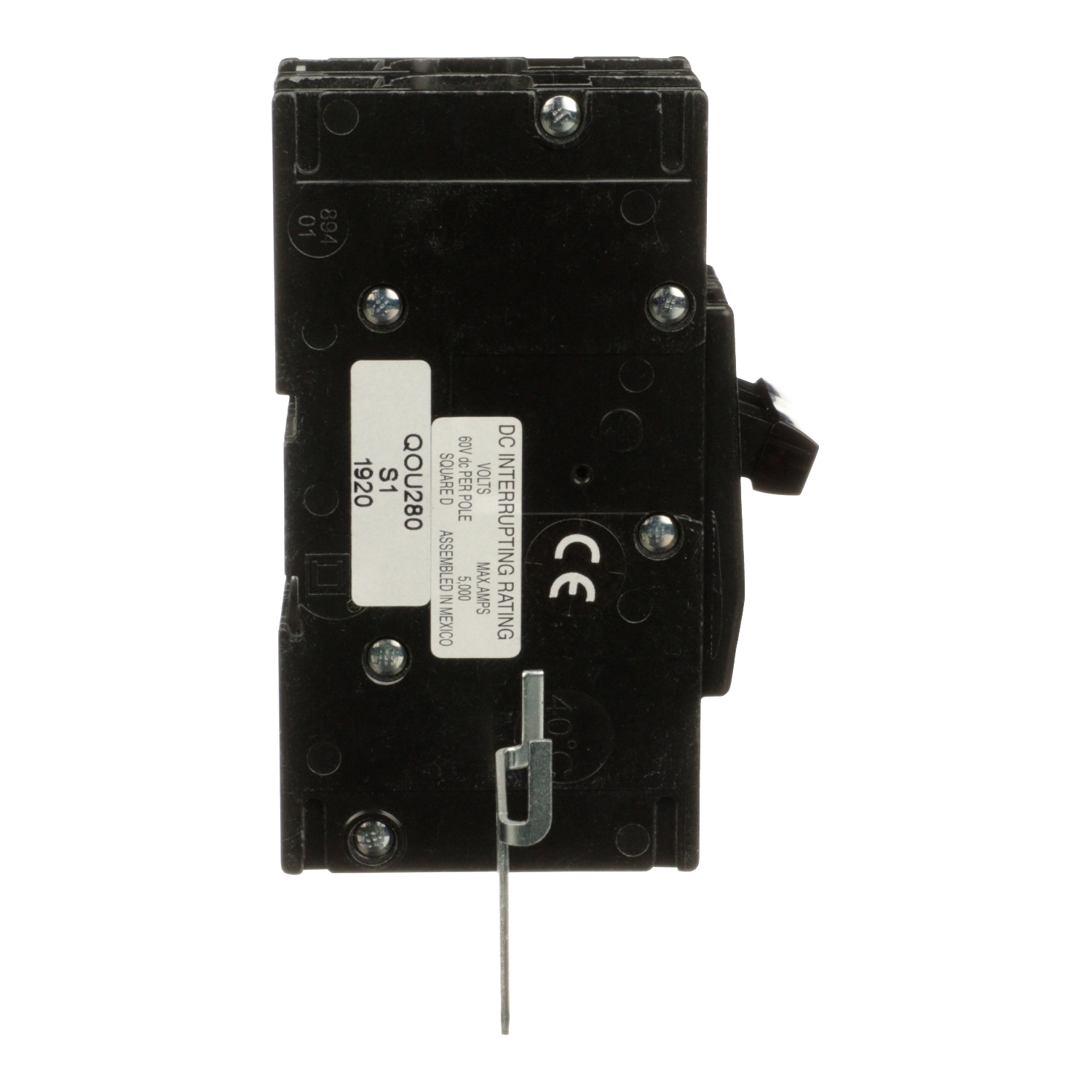

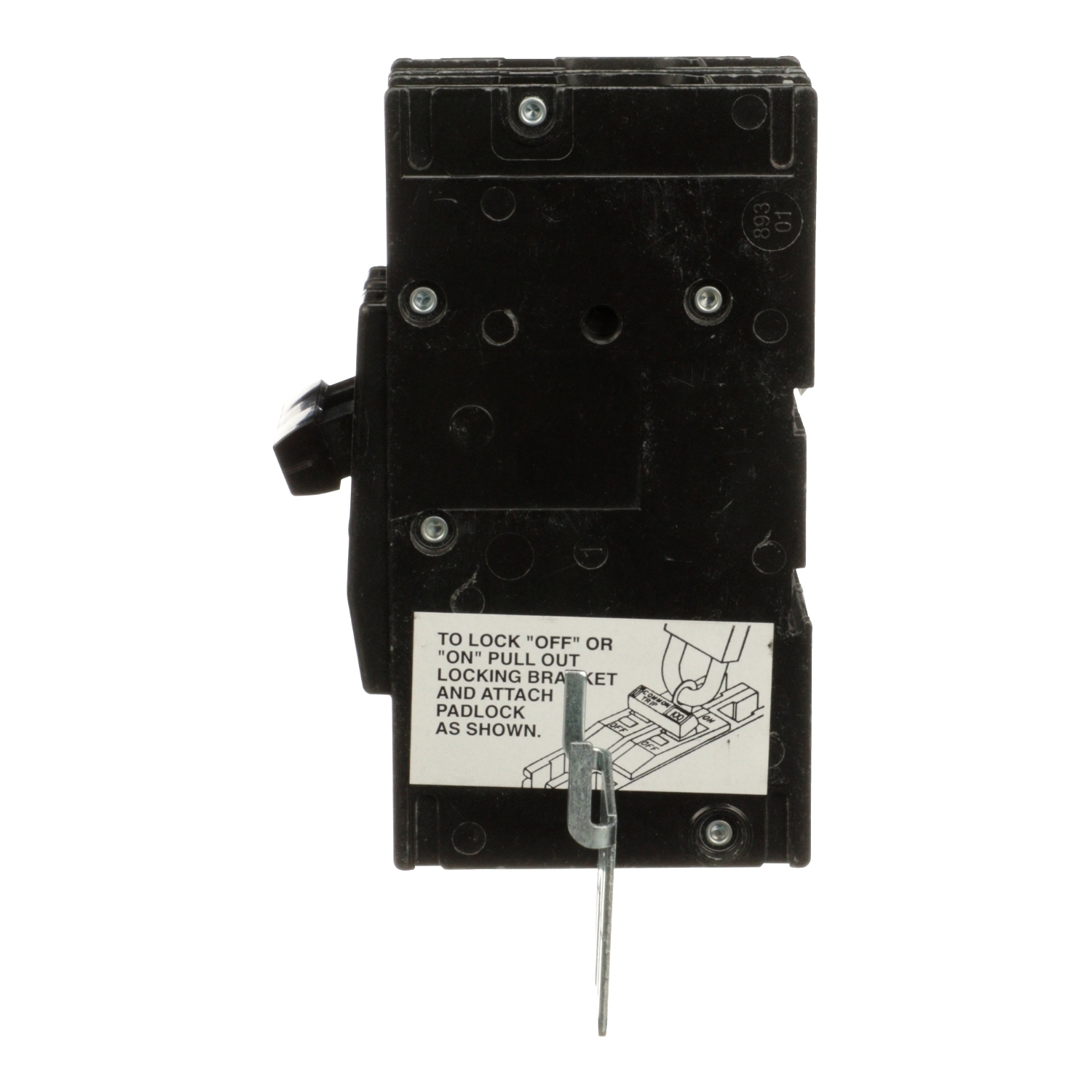

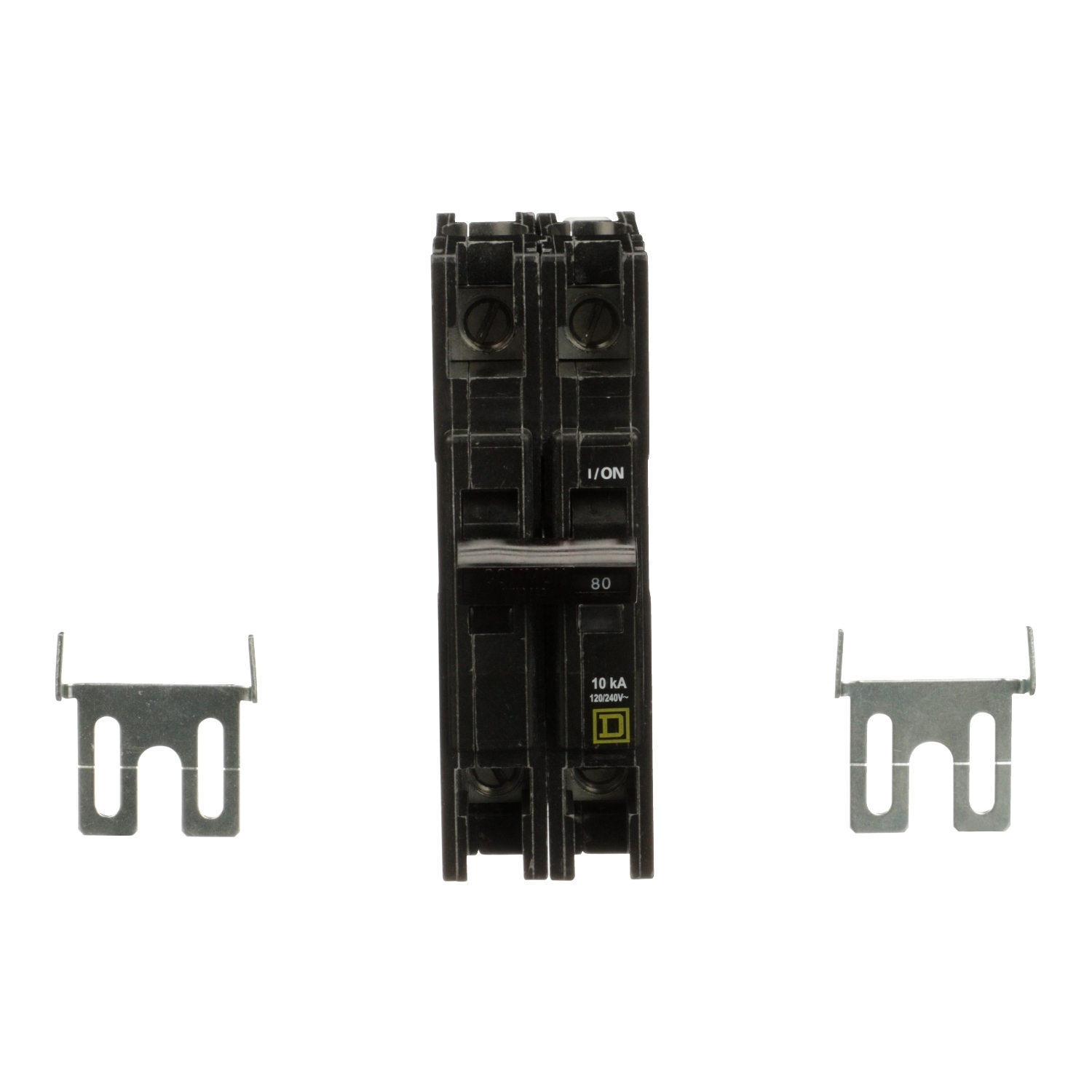

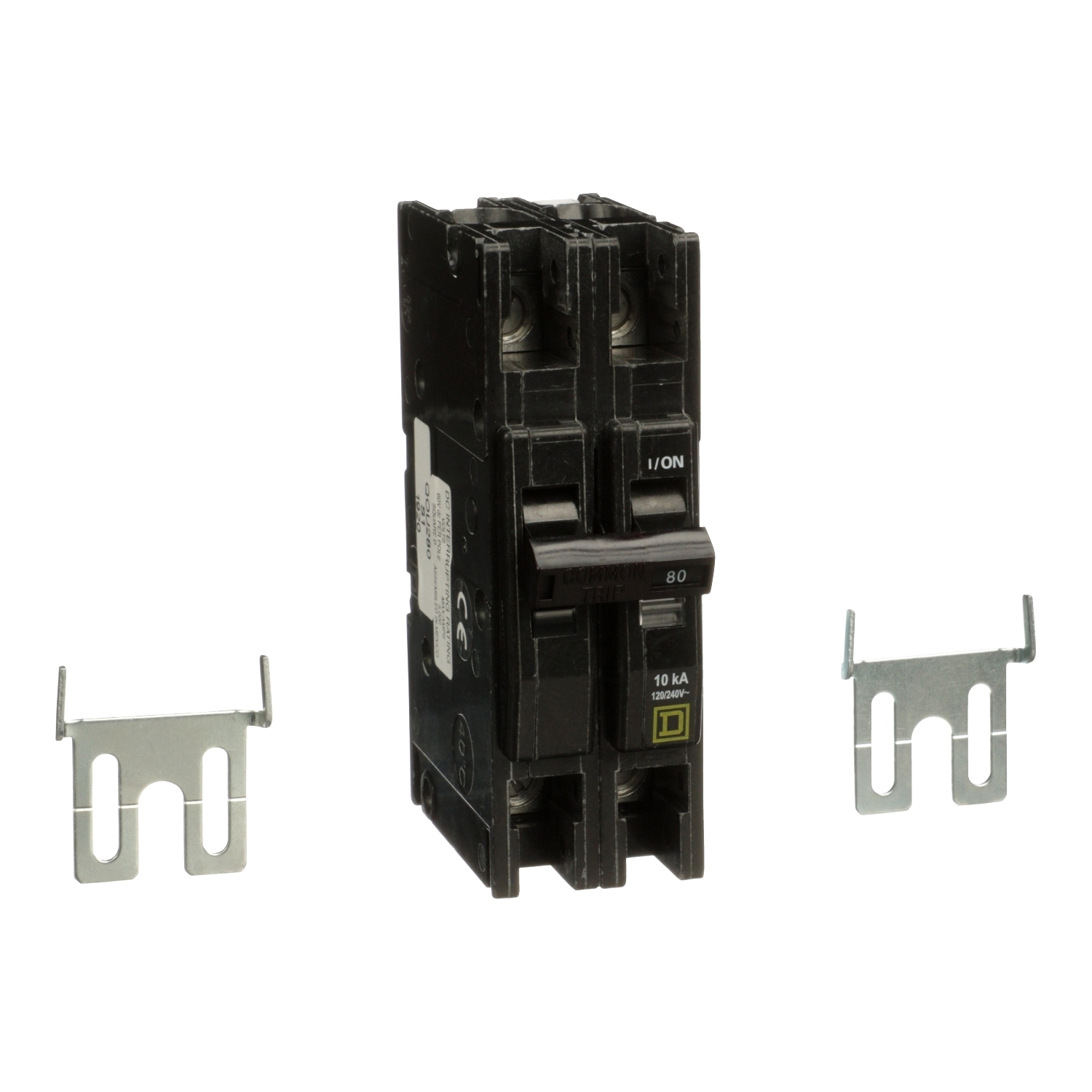

QOU280 Type QOU Standard Miniature Circuit Breaker, 120/240 V AC, 80 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
QOU280
UPC:
785901060260
Item #:
104986

QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 2 pole QOU miniature circuit breaker is rated as 80 A at 120/240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5 02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.

Manuals & Documentation
Catalog Number QOU280
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Application HACR rated
Connection Slotted box lugs, line side;slotted box lugs, load side;AWG 12...AWG 2/0 aluminium/copper
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402617&lang=en-us
UPC 785901060260
GTIN 00785901060260
Item Type Miniature circuit-breaker
Width 1.500000000000000
Width UOM Inch
Height 4.450000000000000
Height UOM Inch
Depth 2.95 IN
Voltage Rating 120/240 V AC;120 V AC;60 V DC
