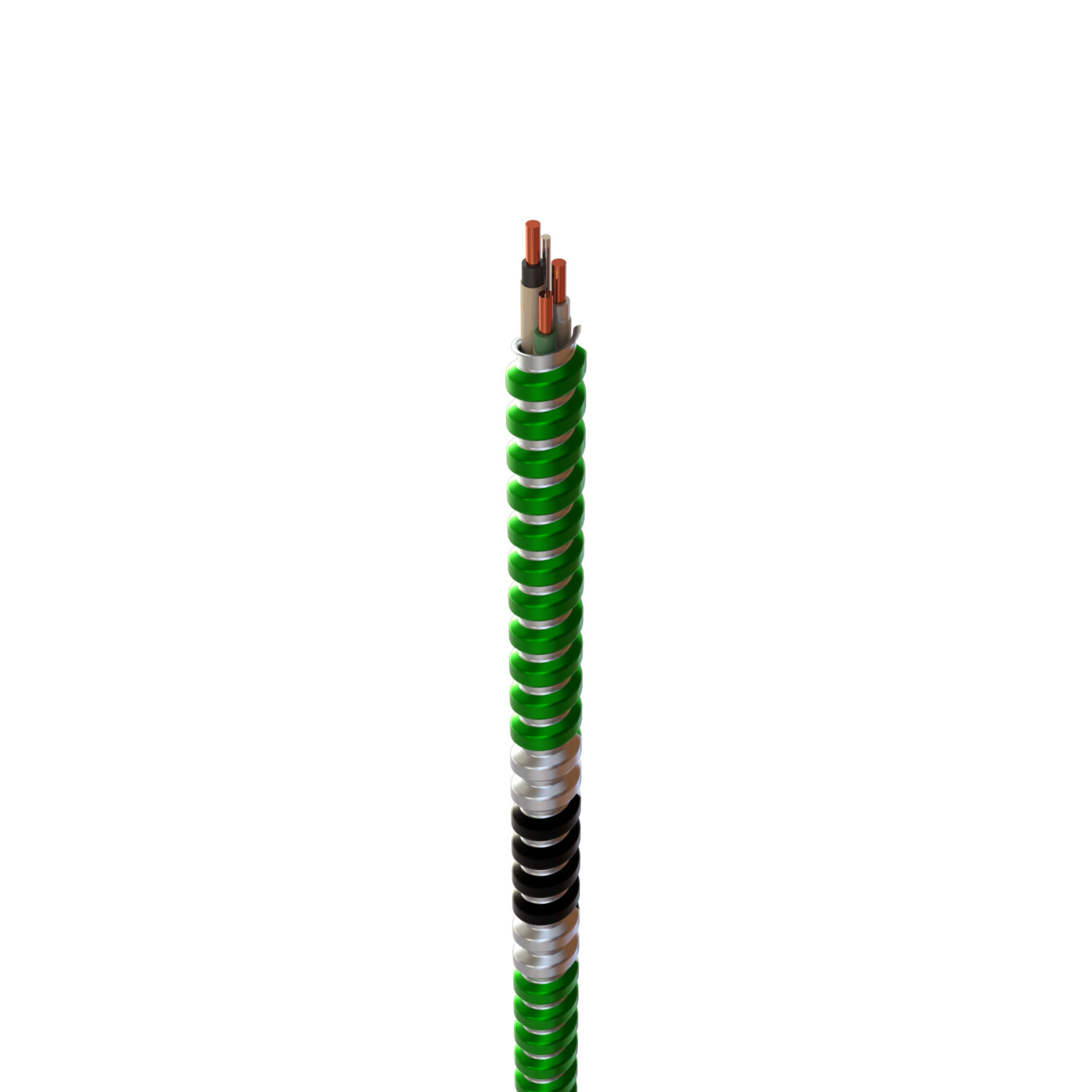

2806G42-01 Type AC Healthcare Facility Armored Cable, Coil Packaging, 600 V, (4) 12 AWG Solid Copper Conductor, 250 ft L
- MFR:
- ATKORE - KAF-TECH
- MFR #:
- 2806G42-01
- UPC:
- 077680162953
- Item #:
- 104667

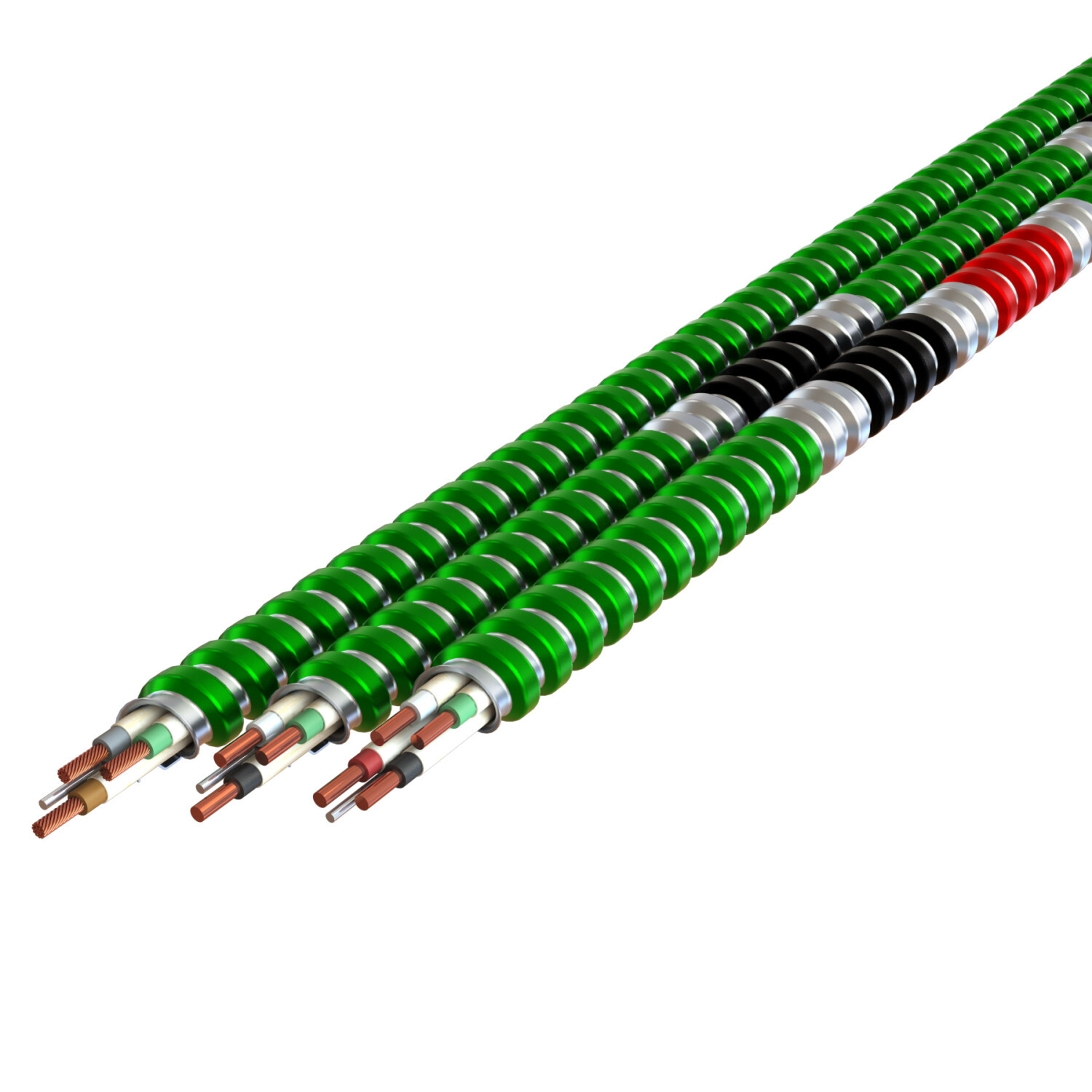

2806G42-01 Type AC Healthcare Facility Armored Cable, Coil Packaging, 600 V, (4) 12 AWG Solid Copper Conductor, 250 ft L
- MFR #:
- 2806G42-01
- UPC:
- 077680162953
- Item #:
- 104667
HCF-Lite, which features interlocked aluminum armor, is a derivative of Type AC Cable. It was introduced in the 1980s to support NEC Article 517 on Healthcare Facilities in "areas of patient care". This branch circuit cable is offered in 12 or 10 AWG THHN in 2, 3, or 4 conductors and was one of the original ColorSpec ID cables. The green interlocked armor became the recognized standard for healthcare facilities' cables, where redundant grounding is required. These 600V cables with THHN conductors have two paths to ground, which is a requirement of NEC 517. The outer metal jacket, in combination with a 16AWG, serves as one equipment grounding means, while the second is an additional full-size green copper ground.
Manuals & Documentation
| Catalog Number | 2806G42-01 |
| Manufacturer | ATKORE - KAF-TECH |
| Brand | Kaf-Tech |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Color | Green |
| Conductor Material | Copper |
| Number of Conductors | 5 |
| Standard | UL 4, 83, 1479, 1581, 2556 File Number E7330, NEC 250.118(8), 300.22(C), 392, 320, 517.13, 518, 645, Federal Specification A-A-59544 (Formerly J-C-30B), Meets OSHA And HUD Requirements, RoHS Compliant |
| UPC | 077680162953 |
| GTIN | 00077680162953 |
| Item Type | Healthcare Facilities Cable With Ground And Neutral |
| Length | 250 |
| Length UOM | Foot |
| Weight | 0.195 LB/FT |
| Outside Diameter | 0.621 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
