Manuals & Documentation
Catalog Number 678
Manufacturer Broan-NuTone
Brand Broan-NuTone
Country of Origin United States
Made in USA Yes
Application For Bathrooms Up To 45 SQ-FT
Special Features Quality and double-duty at each installation location; Plug-in, permanently lubricated motor; Polymeric blower wheel; Tapered, polymeric duct fitting with built-in backdraft damper for easy, positive duct connection and no metallic clatter; Designer styled grille with integrated shatter-resistant light-diffusing lens ; Rugged 26 GA galvanized steel construction; Sturdy key-holed mounting brackets for quick, accurate installation; Use supply wiring rated for at least 90 DEG C; Use with Model 68W (white) or 68V (ivory) two-function control (available separately); Watts: 42.4 WTT at 0.1 IN, 41.6 WTT at 0.25 IN
Standard UL Listed For Use Over Bathtubs And Showers When Connected To A GFCI Protected Branch Circuit And For Use In Insulated Ceilings (Type IC), HVI 2100 Certified
UPC 026715002597
GTIN 00026715002597

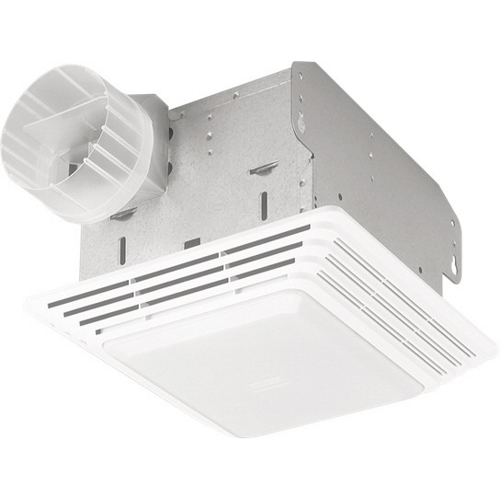

Item Type Ventilation Fan
Length 0.98333
Length UOM Inch
Width 0.79166
Width UOM Inch
Height 1.075
Height UOM Inch
Weight 5.9
Weight UOM Pounds
