Broan-NuTone

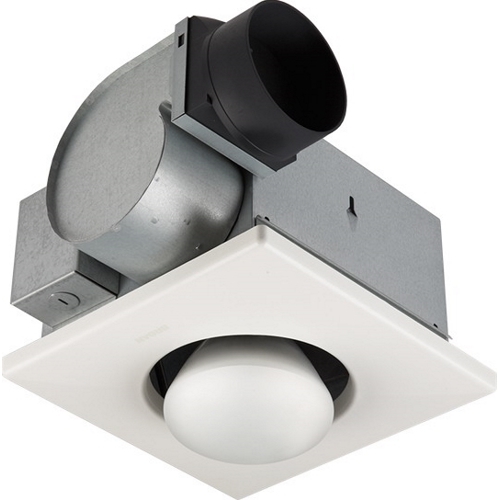

Broan 70 CFM One-Bulb Heater/Ventilation Fan, 250W BR40 Infrared Bulb, 4.0 Sones

MFR:
Broan-NuTone
MFR #:
162
UPC:
026715002627
Item #:
104313
Manuals & Documentation
Catalog Number 162
Manufacturer Broan-NuTone
Brand Broan-NuTone
Country of Origin United States
Made in USA Yes
Application For Energy-Saving Warmth And Instant Comfort In The Bathroom
Mounting Ceiling
Special Features Features: 70 CFM 3.5 Sones; UL Listed For 60 DEG C Wiring (Retrofits); Type IC; Quiet, Highly Efficient Polymeric Blower Wheels; Polymeric Dampers Eliminate Metallic Clatter While Preventing Backdrafts; Polymeric 4.000 IN Round Duct Connectors With Tapered Sleeves Provide Easier, Positive Ducting; Adjustable Mounting Brackets With Keyhole Slots That Span Up To 24.000 IN; Use 250-Watt BR40 Size Infrared Bulbs (Not Included); Use With Broan Model 68 W Or 68 V Two-Function Control (Available Separately); White-White Polymeric Grille; Sturdy Steel Housing; Housing Can Be Adjusted Vertically After Ceiling Is Finished; Plug-In, Permanently Lubricated Motor; Polymeric Damper/Duct Connector With 1-5/8 IN Long Tapered Sleeve And No Metallic Clatter; Heat And Vent Functions May Be Controlled Separately Or In Combination; Finish: White Grille; Amperage Rating: 2.5 AMP; Housing Size: 8-1/8 IN Length X 8-3/8 IN Width X 6-3/8 IN Height; Grille Material: Polymeric; Grille Size: 10-1/4 IN Width X 10-1/4 Length X 5/8 IN Thickness; Duct Size: 4 IN Round; Sones: 3.5 Sones; Cfm: 70 CFM
Standard UL
UPC 026715002627
GTIN 00026715002627
Item Type Heater
Length 1.04583
Length UOM Inch
Width 0.91666
Width UOM Inch
Height 0.63333
Height UOM Inch
Weight 7.35
Weight UOM Pounds
Voltage Rating 120
Wattage 300
