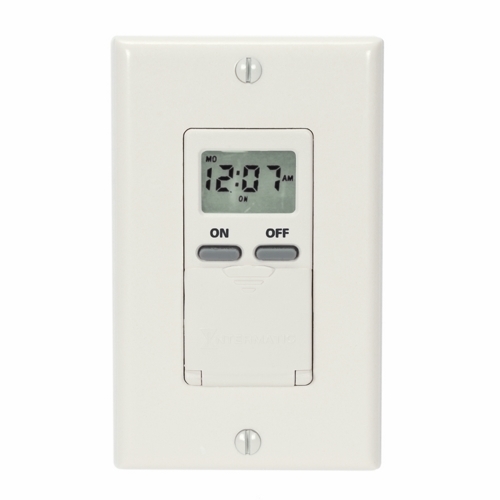

EI500LAC Digital In-Wall Electronic Timer Switch, 1 min to 7 days Setting, 120 V AC, 1/4 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- EI500LAC
- UPC:
- 078275105225
- Item #:
- 103954
EI500LAC Digital In-Wall Electronic Timer Switch, 1 min to 7 days Setting, 120 V AC, 1/4 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- EI500LAC
- UPC:
- 078275105225
- Item #:
- 103954
For installation on 15 A circuits, this timer provides 24-hour or 7-day programming of lights, fans, pumps and other medium-duty loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Manuals & Documentation
| Catalog Number | EI500LAC |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | China |
| Made in USA | No |
| Action | 1 x SPST |
| Amperage Rating | 15 |
| Application | Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting, LED Lighting |
| Contact Configuration | 1 NO |
| Contact Rating | 15 AMP @ 120 VAC (Resistive Heater), 8.3 AMP @ 120 VAC (Tungsten Incandescent), 8 AMP @ 120 VAC (Ballast Magnetic) |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Compact and Quiet Low Profile Design, Continuously Displays Time of Day and Day of Week and Load Status, Internal Rechargeable Battery - Minimum 36 Hour Backup, 1 Year Warranty |
| Standard | cULus Listed, HVACR |
| UPC | 078275105225 |
| GTIN | 00078275105225 |
| Item Type | Decorator Digital In-Wall |
| Size | 2.75 HEIGHT X 1.75 WIDTH X 1.36 DEPTH IN, 69.85 HEIGHT X 44.45 WIDTH X 34.54 DEPTH MM |
| Operating Temperature | +32 to +122 DEG F, 0 to +50 DEG C |
| Timing Range | 1 MIN - 7 DAYS |
| Voltage Rating | 120 |
| Wattage | 1875 W |
