SQUARE D

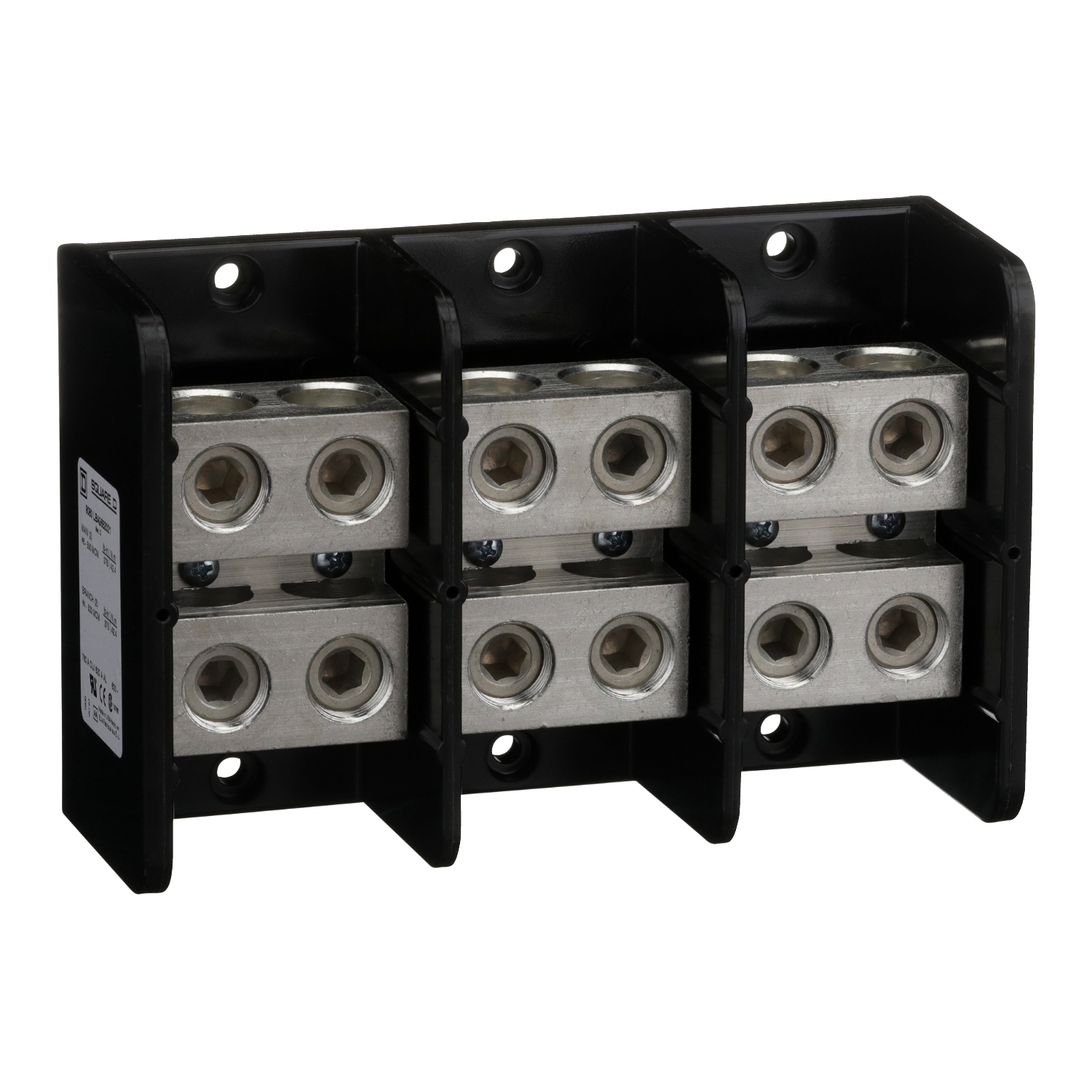

9080LBA3652021 TeSys Linergy General Purpose Linergy Standard Multi-Pole Power Distribution Block, 600 V AC/DC, 620/760 A, 3 Poles, (2) 4 AWG to 500 kcmil Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBA3652021
UPC:
785901097556
Item #:
103918

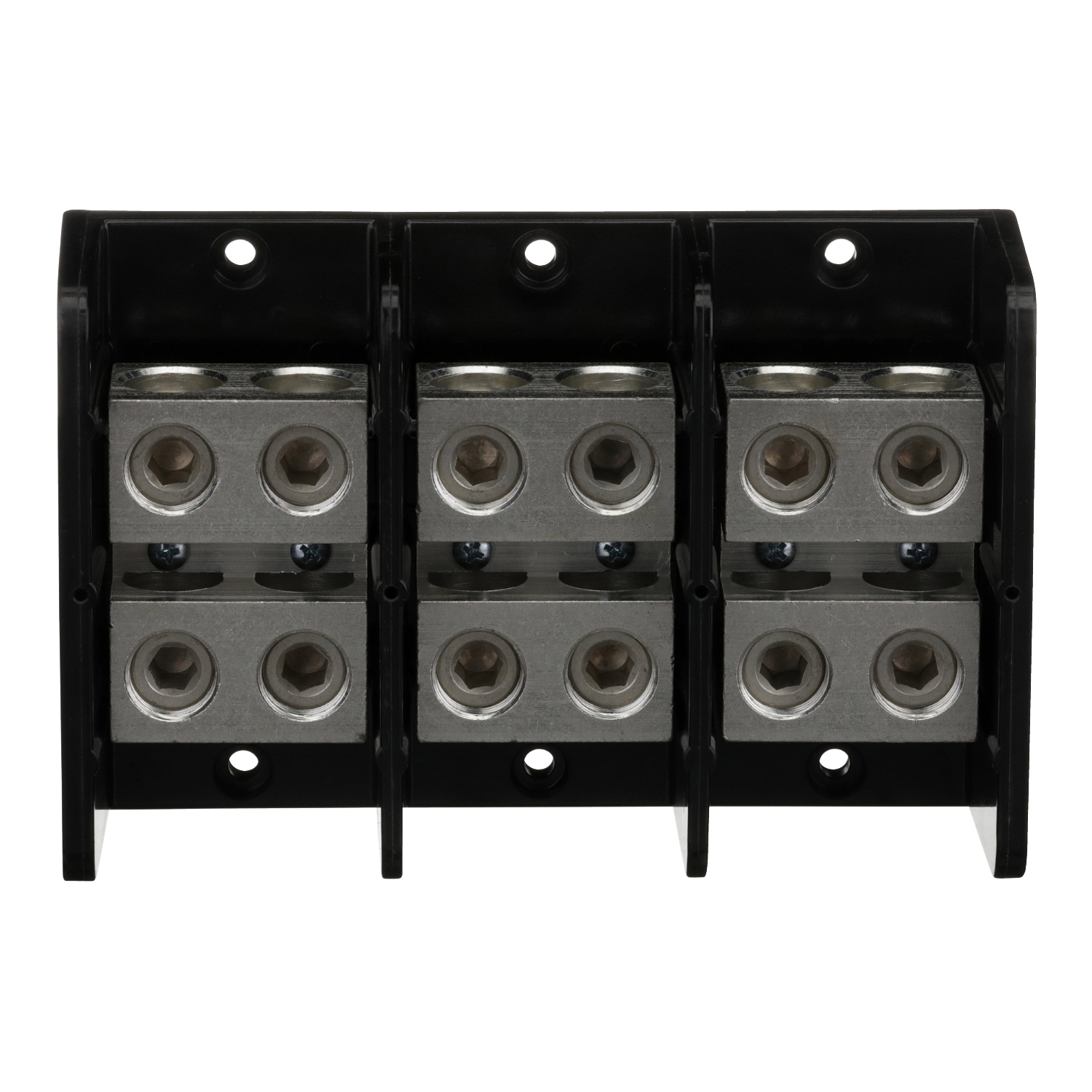

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #6 to 500 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA3652021
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated aluminium lugs;Line lug 375 lbf.in AWG 4...500 kcmil copper or aluminium;load lug 375 lbf.in AWG 4...500 kcmil copper or aluminium
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373007&lang=en-us
UPC 785901097556
GTIN 00785901097556
Item Type Power Distribution Block;9080LB53
Width 8.54
Width UOM Inch
Height 5.5
Height UOM Inch
Depth 3.13 IN
