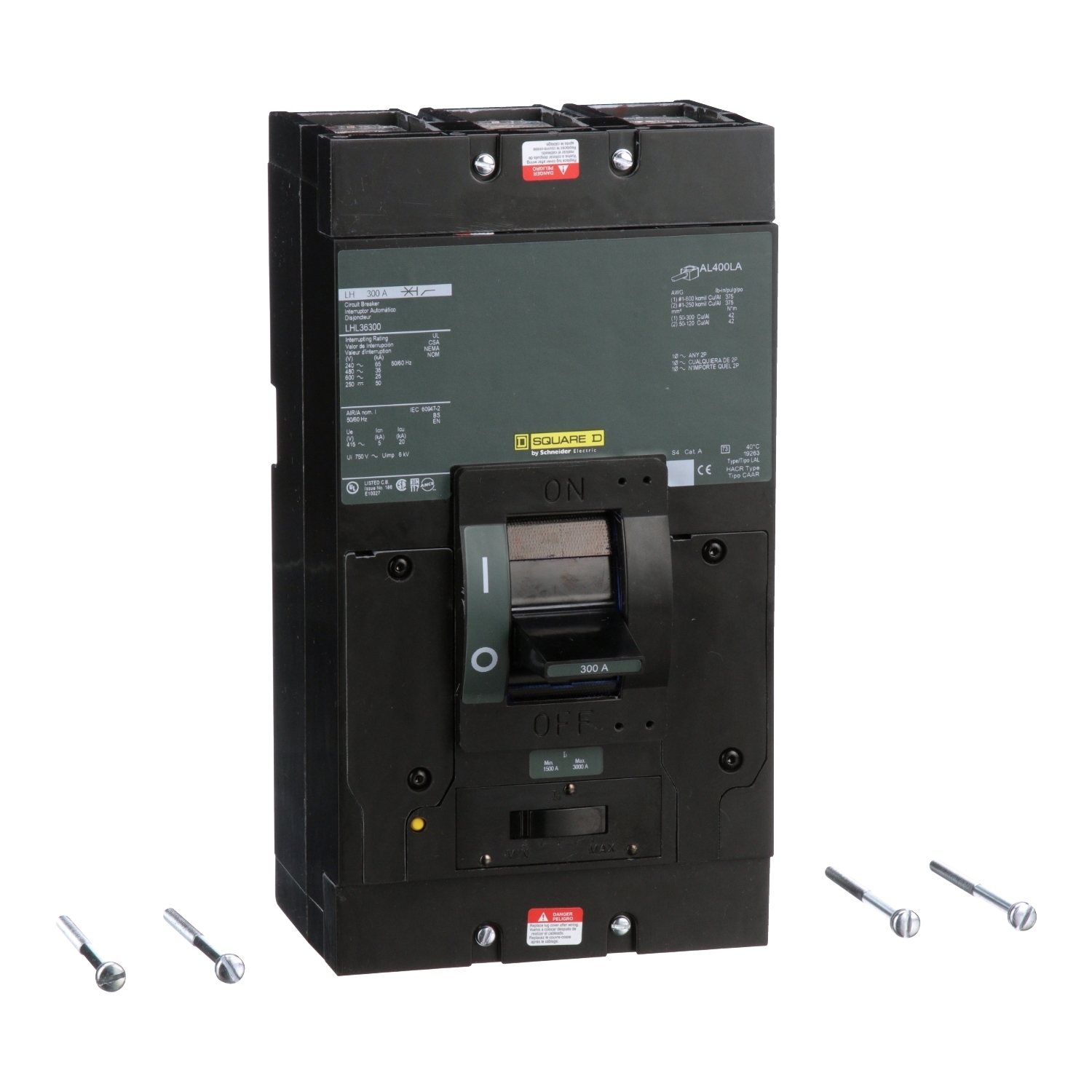

LHL36300 Molded Case Circuit Breaker, 600 V AC/250 V DC, 300 A, 25/35/50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- LHL36300
- UPC:
- 785901339373
- Item #:
- 103653
LHL36300 Molded Case Circuit Breaker, 600 V AC/250 V DC, 300 A, 25/35/50/65 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- LHL36300
- UPC:
- 785901339373
- Item #:
- 103653

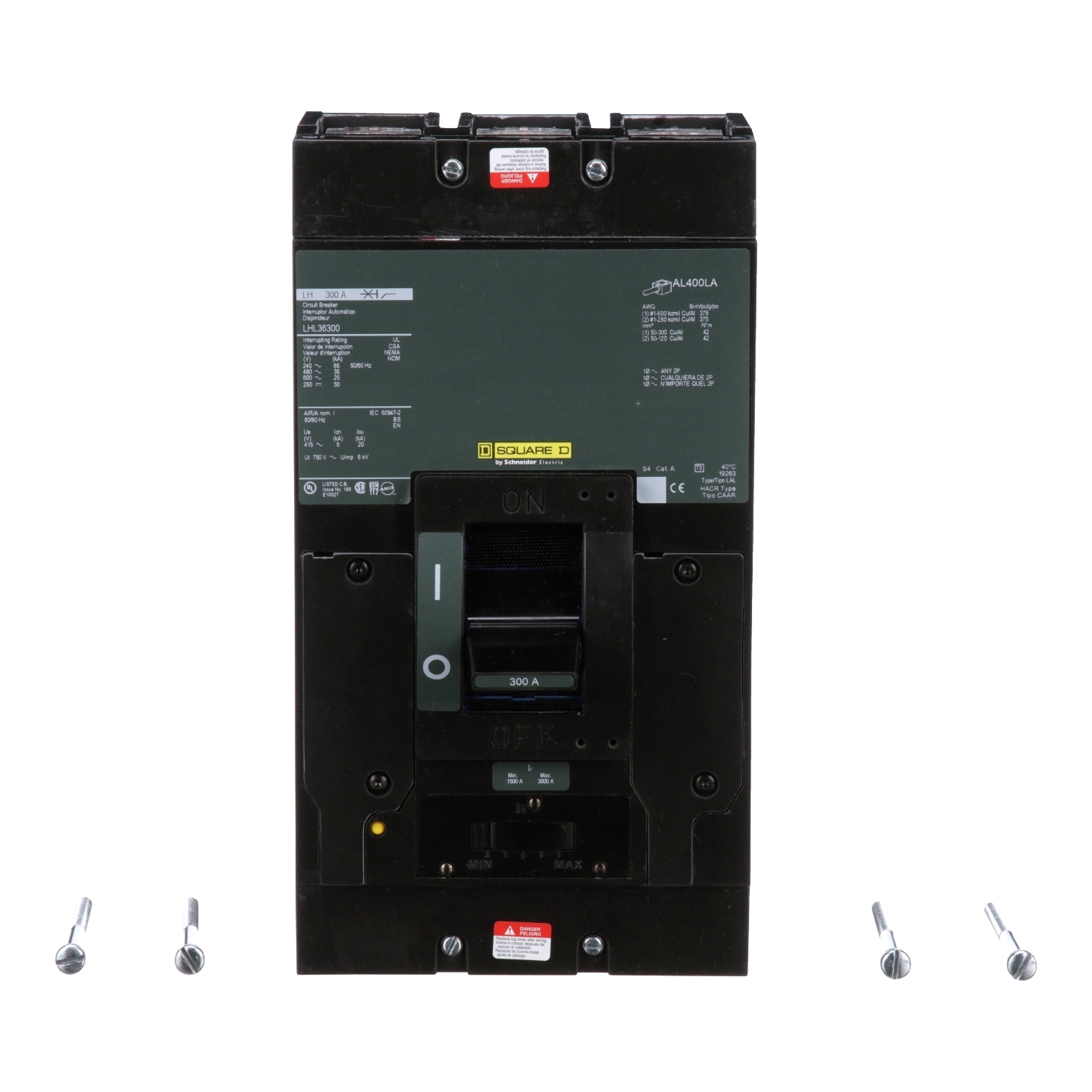

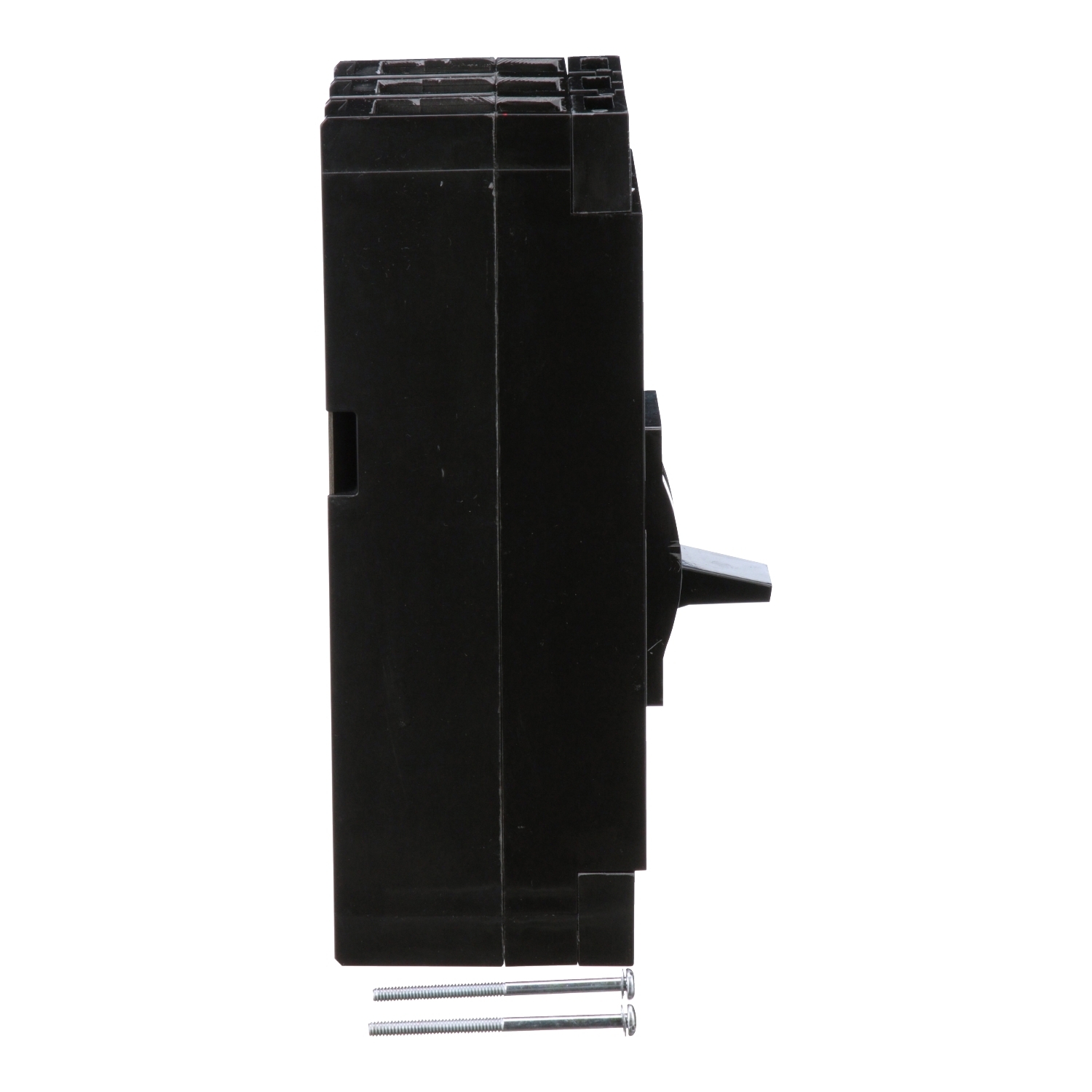

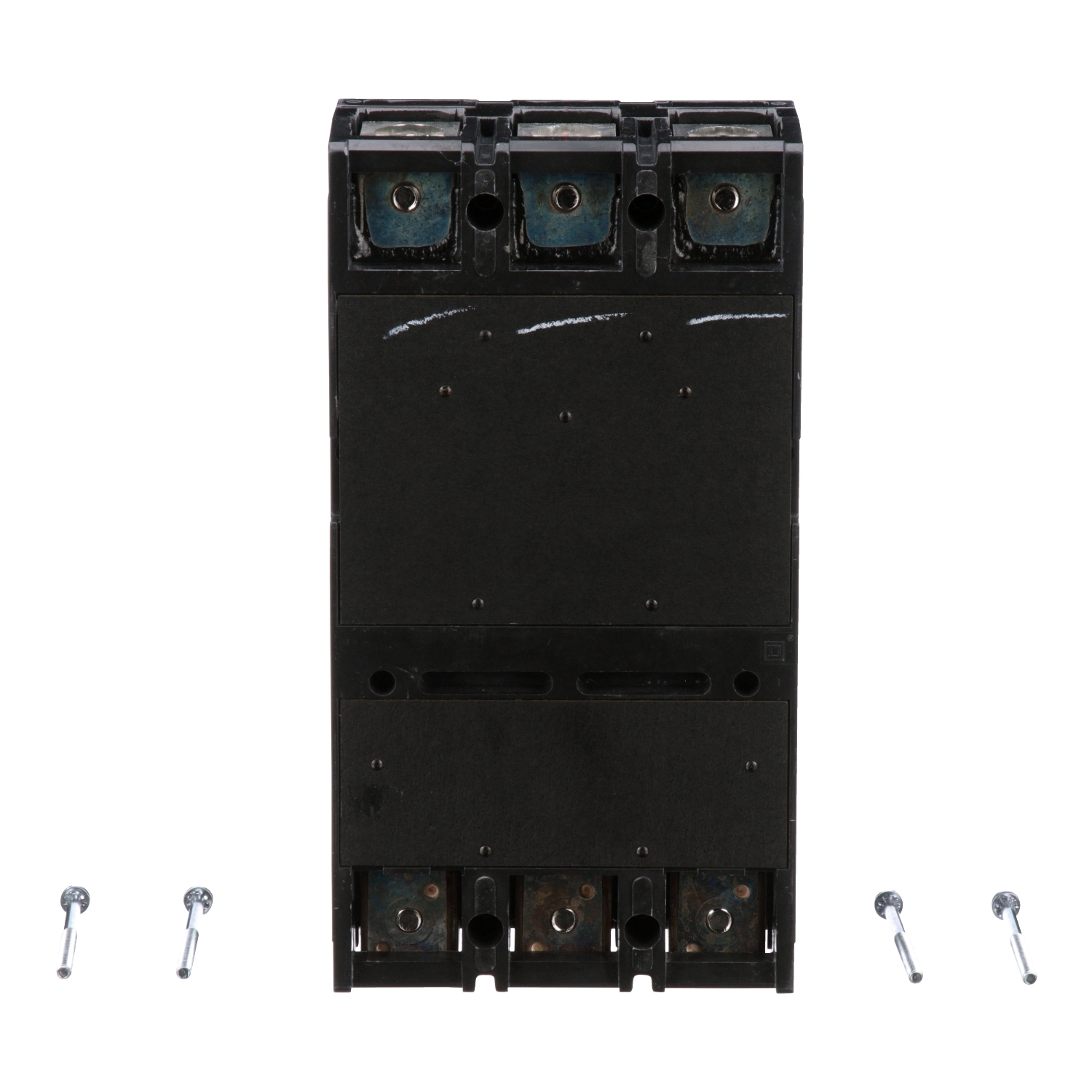

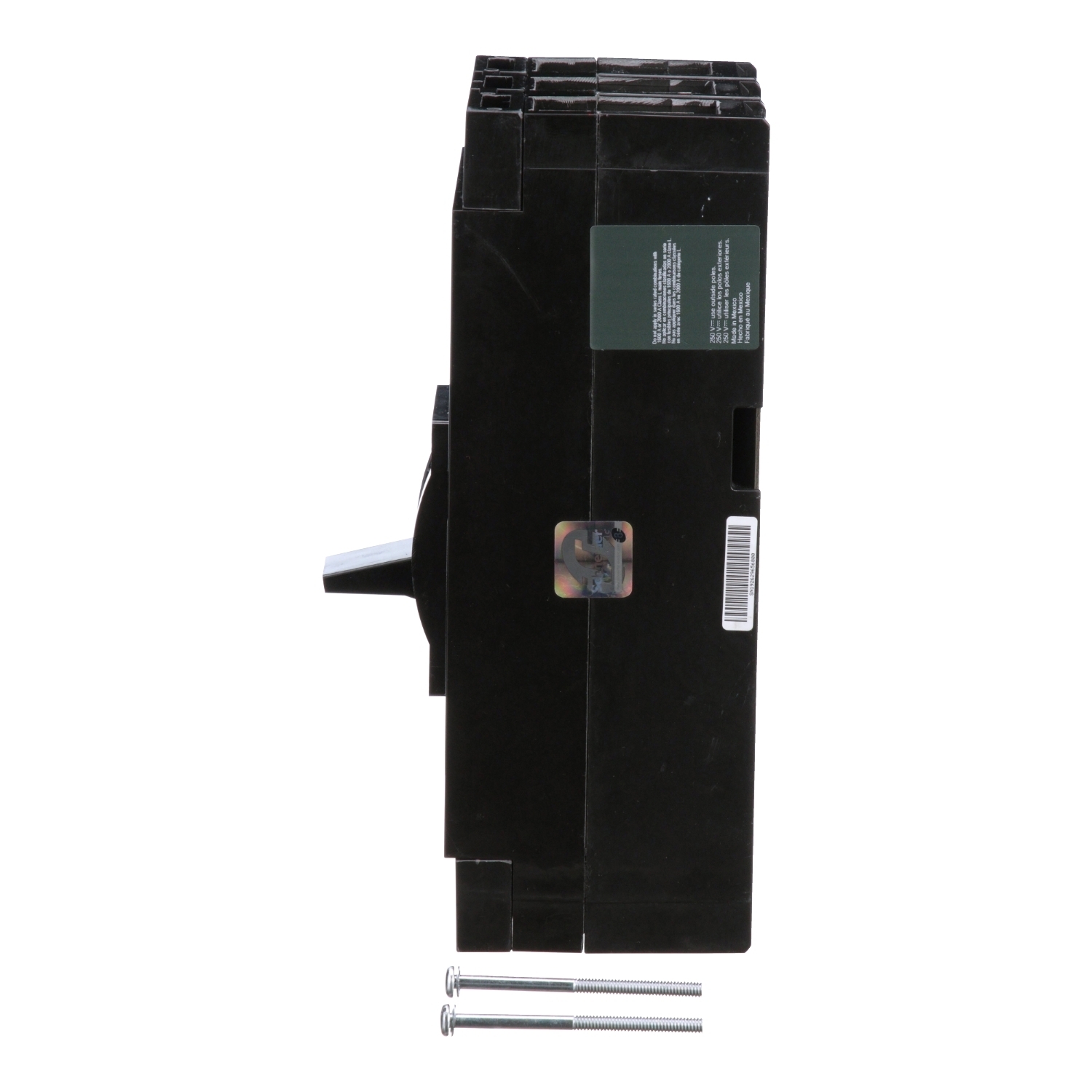

Square D LH molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LH molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 25kA for 600VAC and 50kA for 250VDC. LH breakers are UL 489, CSA, IEC certified.
Manuals & Documentation
| Catalog Number | LHL36300 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Ireland |
| Made in USA | No |
| Connection | Lugs, load;lugs, line |
| Number of Poles | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=430287&lang=en-us |
| UPC | 785901339373 |
| GTIN | 00785901339373 |
| Item Type | Circuit breaker |
| Width | 6.0 |
| Width UOM | Inch |
| Height | 11.0 |
| Height UOM | Inch |
| Depth | 5.84 IN |
| Trip Type | Thermal-magnetic |
