VCFN12GE Mini-Vario Emergency Stop Enclosed Standard Disconnect Switch, 690 V AC, 10 A, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- VCFN12GE
- Item #:
- 103512
VCFN12GE Mini-Vario Emergency Stop Enclosed Standard Disconnect Switch, 690 V AC, 10 A, 3 Poles
- MFR #:
- VCFN12GE
- Item #:
- 103512

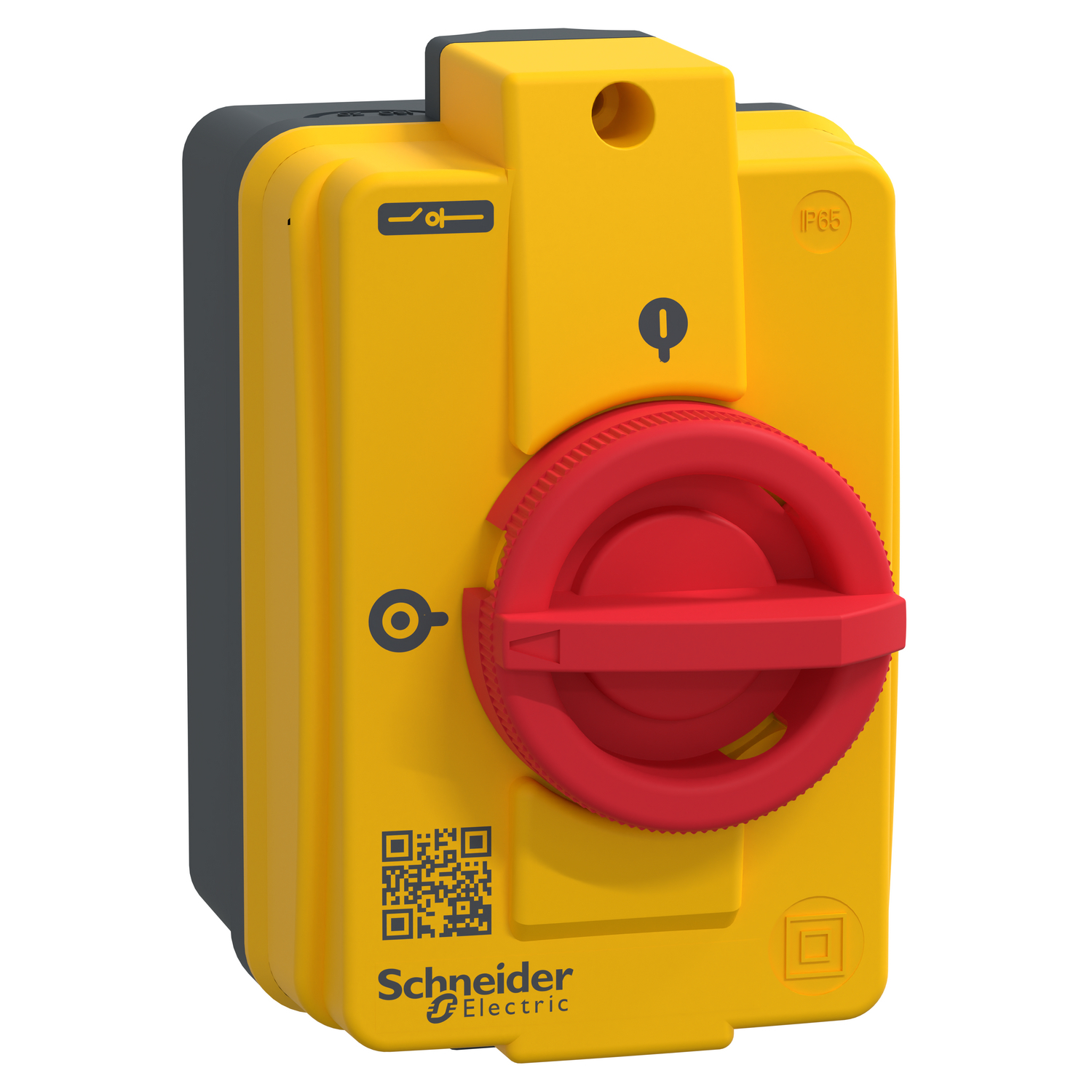

VCFN12GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN12 switch body with 2 possible add-on module attachments. Rated The 10A 690V, it is used for main and emergency stop switching in motor applications up to 4kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1.
Manuals & Documentation
| Catalog Number | VCFN12GE |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Czech Republic |
| Made in USA | No |
| Actuator | Red;Rotary handle |
| Connection | Control circuit connector 4-4 mm² flexible with cable end;control circuit connector 4-4 mm² solid |
| Number of Poles | 3 |
| Special Features | 1 to 3 padlocks 4-8 mm;Standard |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=643556&lang=en-us |
| GTIN | 03389110759983 |
| Item Type | Emergency stop switch disconnector |
| Size | 60 x 60 mm |
