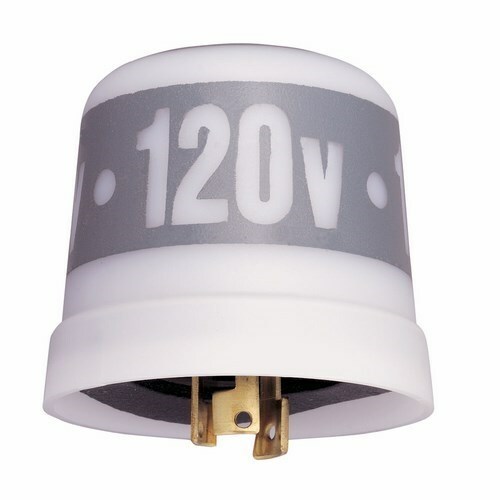

LC4536C LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, Polypropylene
- MFR:
- Intermatic
- MFR #:
- LC4536C
- UPC:
- 078275029552
- Item #:
- 103330
LC4536C LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, Polypropylene
- MFR #:
- LC4536C
- UPC:
- 078275029552
- Item #:
- 103330
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
Manuals & Documentation
| Catalog Number | LC4536C |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Lock Type |
| Frequency Rating | 50/60 HZ |
| Mounting | Twistlock Mount |
| Sensitivity | 0.5 FC (Minimum) ON, 15 FC (Minimum) OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection |
| Standard | UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 - 277 VAC |
| UPC | 078275029552 |
| GTIN | 00078275029552 |
| Item Type | TwistLock Photocell |
| Size | 3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM |
| Operating Temperature | -20 to +104 DEG F, -29 to +40 DEG C |
