SQUARE D

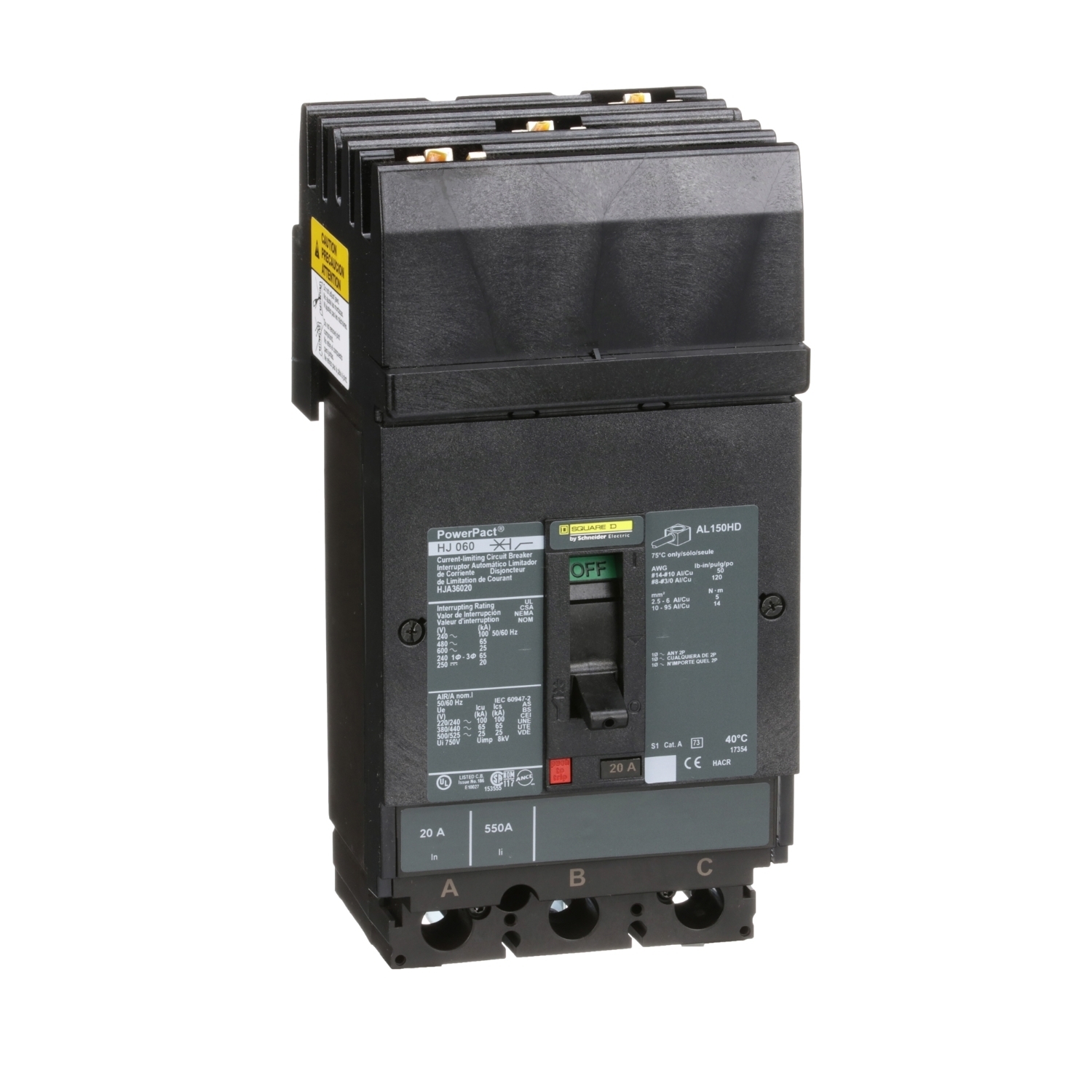

HJA36020 PowerPact 80% Rated Type HJA Molded Case Circuit Breaker, 600 V AC/250 V DC, 20 A, 100 kA at 240 VAC/65 kA at 480 VAC/25 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
HJA36020
UPC:
785901600947
Item #:
103328

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number HJA36020
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Color Black
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423397&lang=en-us
UPC 785901600947
GTIN 00785901600947
Cross Reference Products Grainger 1H110|Schneider FC34020|Schneider FJA34020|Schneider HJA36020|Schneider SFH3020|SquareD HJA36020
