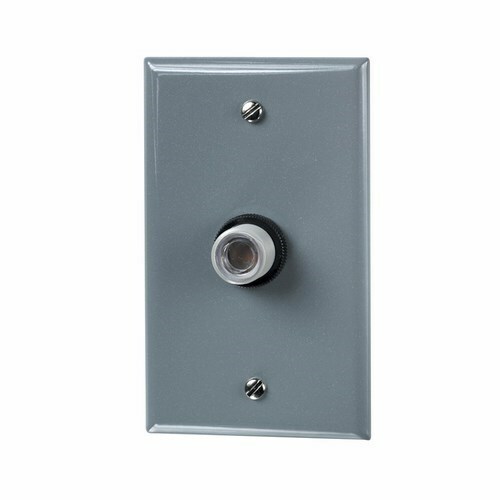

K4321C K4000 Automatic Switching In-Wall Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box Mount, Polycarbonate
- MFR:
- Intermatic
- MFR #:
- K4321C
- UPC:
- 078275002036
- Item #:
- 103286
K4321C K4000 Automatic Switching In-Wall Thermal Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box Mount, Polycarbonate
- MFR #:
- K4321C
- UPC:
- 078275002036
- Item #:
- 103286
Intermatics wall mount thermal-type photocontrol installs into standard outdoor single-gang electrical boxes. The photocontrol provides dusk-to-dawn lighting control. Compatible with Fluorescent, HID, and Incandescent bulbs.
Manuals & Documentation
| Catalog Number | K4321C |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Color Coded Lead |
| Frequency Rating | 50/60 HZ |
| Mounting | Button Fixed Mount |
| Sensitivity | 1-5 FC ON, 3-15 FC Off |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Sonic-Welded Polycarbonate Housing, 9 IN Wire Leads, Wall Plate |
| Standard | CSA, CAS Approval, C/US Approval, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 VAC |
| UPC | 078275002036 |
| GTIN | 00078275002036 |
| Item Type | Thermal Type Photo Cell |
| Size | 1-13/16 LENGTH X 1-5/16 WIDTH X 1-9/16 DEPTH IN, 4.6 LENGTH X 3.3 WIDTH X 4 DEPTH CM |
| Operating Temperature | -40 to +158 DEG F -40 to +70 DEG C |
