SQUARE D

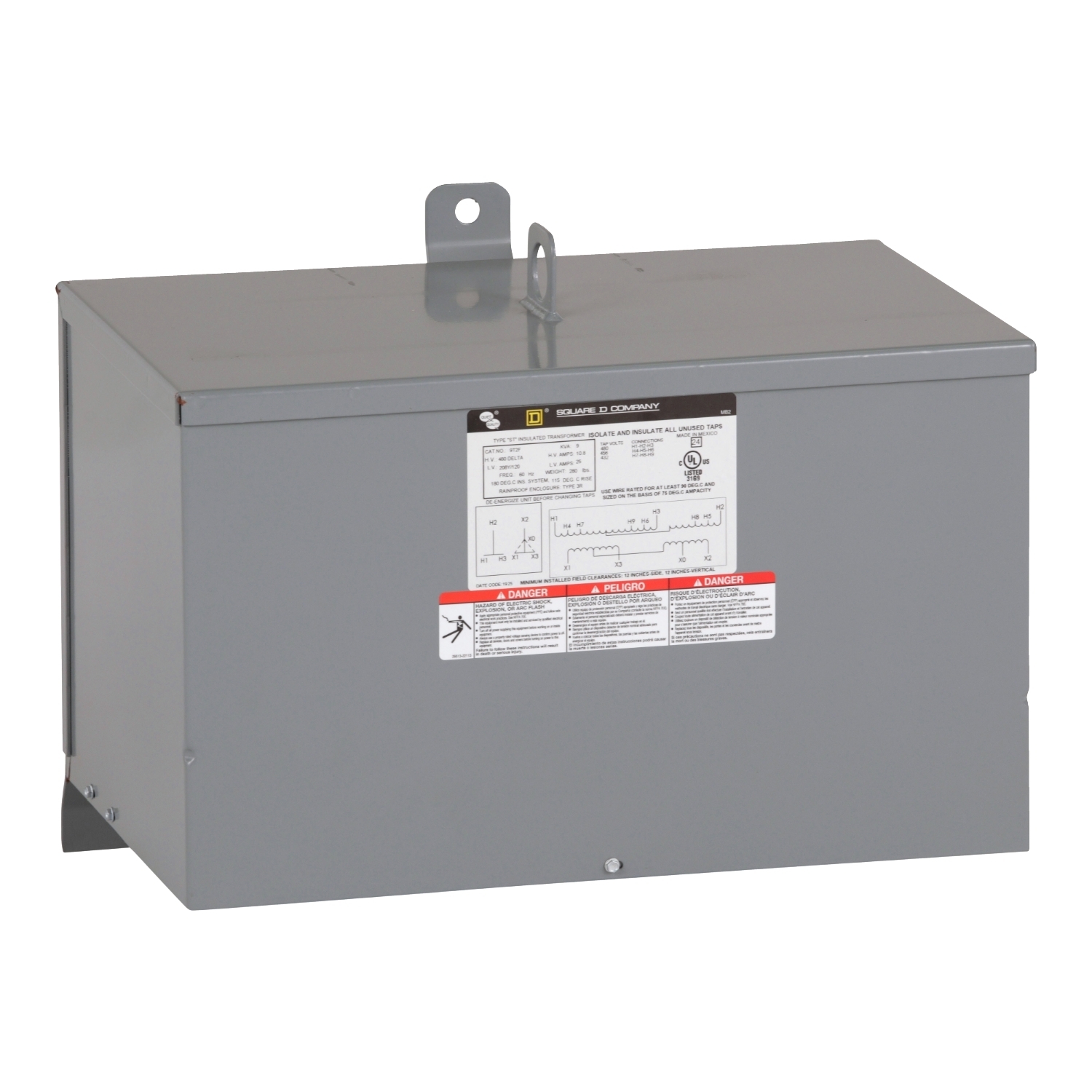

9T2F Dry Sealed Encapsulated General Purpose Resin Sealed Transformer, 480 Delta VAC Primary, 208Y/120 V AC Secondary, 9 kVA Power Rating, 60 Hz, 3 Phase

MFR:
Schneider Electric
MFR #:
9T2F
UPC:
785901359494
Item #:
10272

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 3 phase, and has a rated power of 9 KVA. This transformer has a primary voltage of 480 V delta, and a secondary voltage of 208Y/120 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 14.75 in (H), 19.1 in (W), 12.25 in (D). This product complys to UL & CSA standards.

Manuals & Documentation
Catalog Number 9T2F
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Enclosure Painted sheet steel;14C
Mounting Wall
Number of Taps 2 5 % FCBN
Phase 3
Primary Voltage 480 V delta 208Y/120 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456331&lang=en-us
UPC 785901359494
GTIN 00785901359494
Item Type Dry Sealed Transformer
Width 19.1
Width UOM Inch
Height 14.75
Height UOM Inch
Depth 12.25 IN
