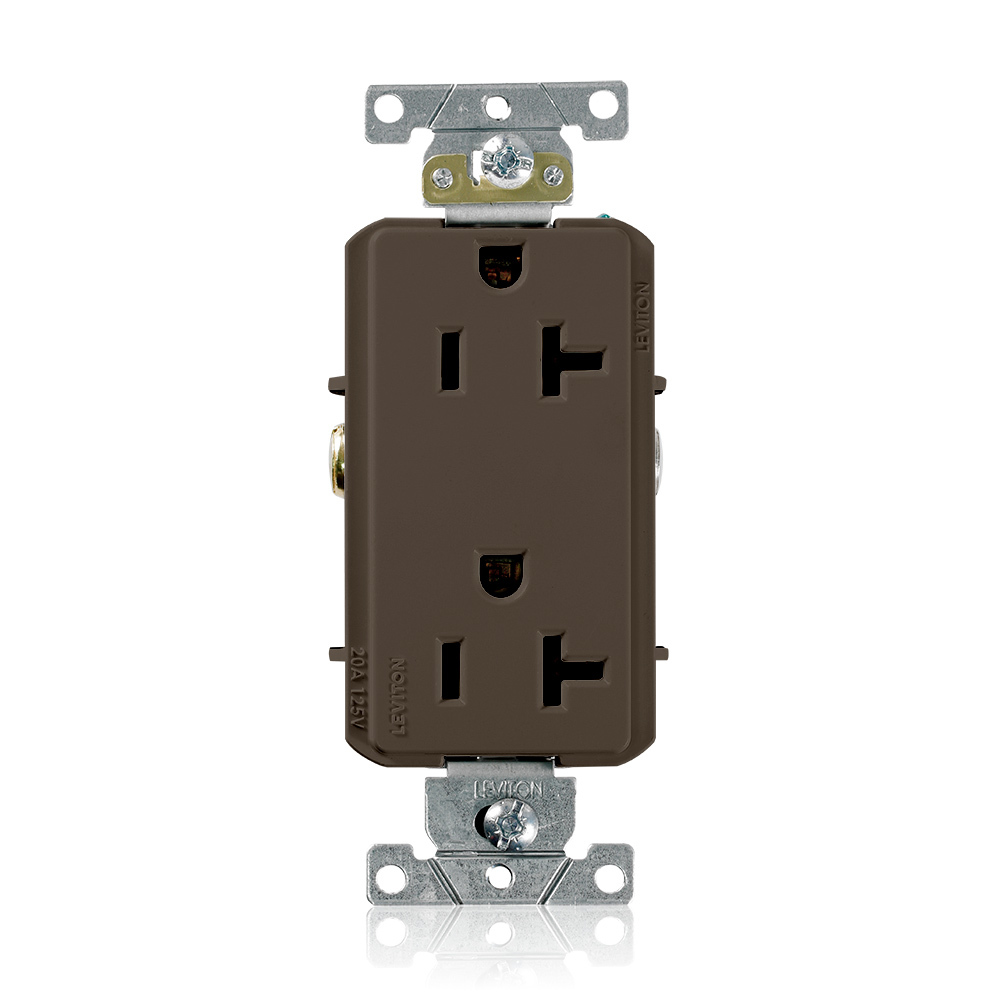

16352 Decora Plus Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
- MFR:
- Leviton
- MFR #:
- 16352
- UPC:
- 078477819708
- Item #:
- 102615
16352 Decora Plus Heavy Duty Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
- MFR #:
- 16352
- UPC:
- 078477819708
- Item #:
- 102615
| Catalog Number | 16352 |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Brown |
| Connection | Back and Side Wired |
| Material | Thermoplastic |
| Mounting | Wall |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Phase | 1 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) |
| UPC | 078477819708 |
| GTIN | 00078477819708 |
| Item Type | Straight Blade;Duplex Outlet |
| Size | 46 H x 1.31 W x 1.14 D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 125 |
| Wire Size | 14-10 AWG |
| Cross Reference Products | Bryant DRS20|EatonWD 6352B|HublWiring DR20 |
