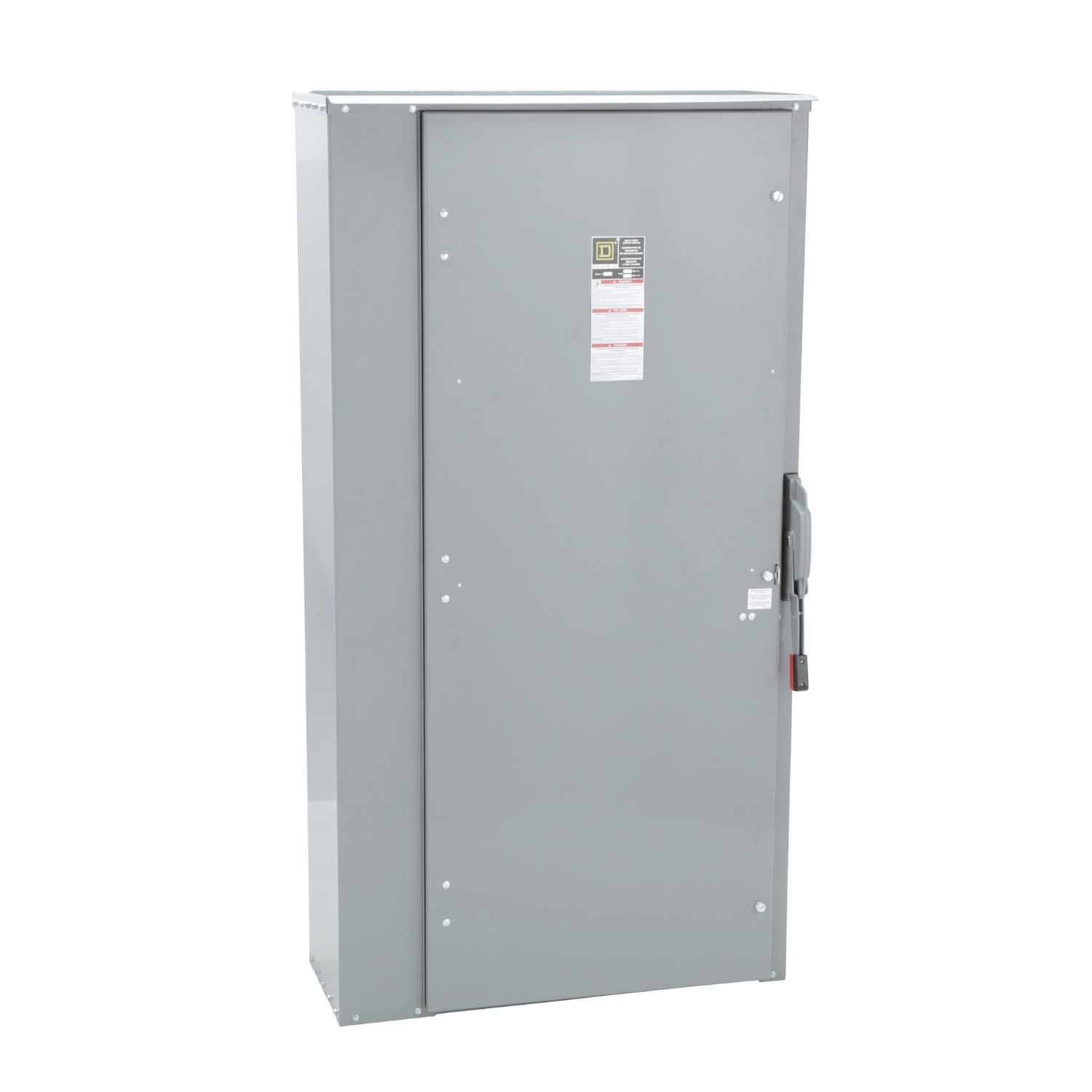

H367NR E4 Series Heavy Duty Fusible Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 600 V AC/DC, 800 A, 50 hp, 250 hp, 500 hp, 3PST Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- H367NR
- UPC:
- 785901442431
- Item #:
- 102550
H367NR E4 Series Heavy Duty Fusible Iceproof Rainproof Sleetproof Safety Switch With Factory Installed Neutral, 600 V AC/DC, 800 A, 50 hp, 250 hp, 500 hp, 3PST Contact, 3 Poles
- MFR #:
- H367NR
- UPC:
- 785901442431
- Item #:
- 102550
The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 800A and is UL listed with a NEMA 3R rating of protection. This 3-pole switch has operational voltage ratings of & 600VAC/DC. The enclosure is made of galvannealed steel and has a neutral (factory installed). This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,Rfuse types and is surface mounted. This switch comes with an 18 months warranty.
Manuals & Documentation
| Catalog Number | H367NR |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Fuse Type | L |
| Phase | 3 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364797&lang=en-us |
| UPC | 785901442431 |
| GTIN | 00785901442431 |
| Width | 36.62 |
| Width UOM | Inch |
| Height | 69.13 |
| Height UOM | Inch |
| Depth | 17.75 IN |
