Appleton

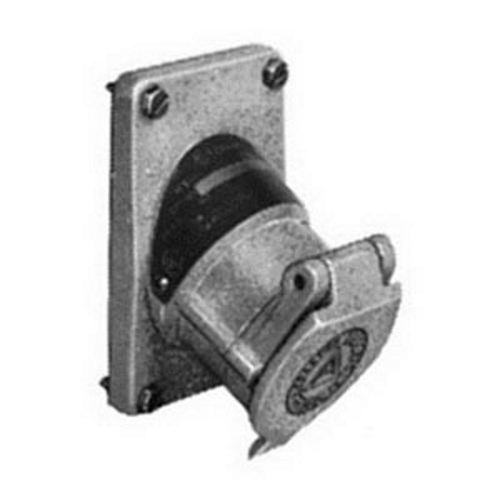

EFSR-2023 U-Line Dust-Ignitionproof Explosionproof Receptacle Cover Assembly, 125 V AC, 20 A, 3 Poles, 2 Wires

MFR:
Appleton Electric
MFR #:
EFSR-2023
UPC:
781381288057
Item #:
102268

U-Line 1-Gang Replacement Receptacle, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, Mounting: Box, Motor Horsepower: 1 HP, Finish: Epoxy Powder Coat, Dimensions: 3 IN Width X 4.63 IN Height X 3.19 IN Depth, Standard: Class I, Division 1 And 2 Groups C, D, Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2 Groups F, G, Class III, UL Listed: E10784, E81751, UL Standard: 1203, 1010, 894, CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159, CSA Certified: 038644, For ECP Mating Plugs

Manuals & Documentation
Catalog Number EFSR-2023
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For ECP Mating Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Box
NEMA Rating 3, 3R
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Glass-filled reinforced polyester insulating blocks
Standard Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644
UPC 781381288057
GTIN 00781381288057
Item Type 1-Gang Replacement Receptacle
Voltage Rating 125
