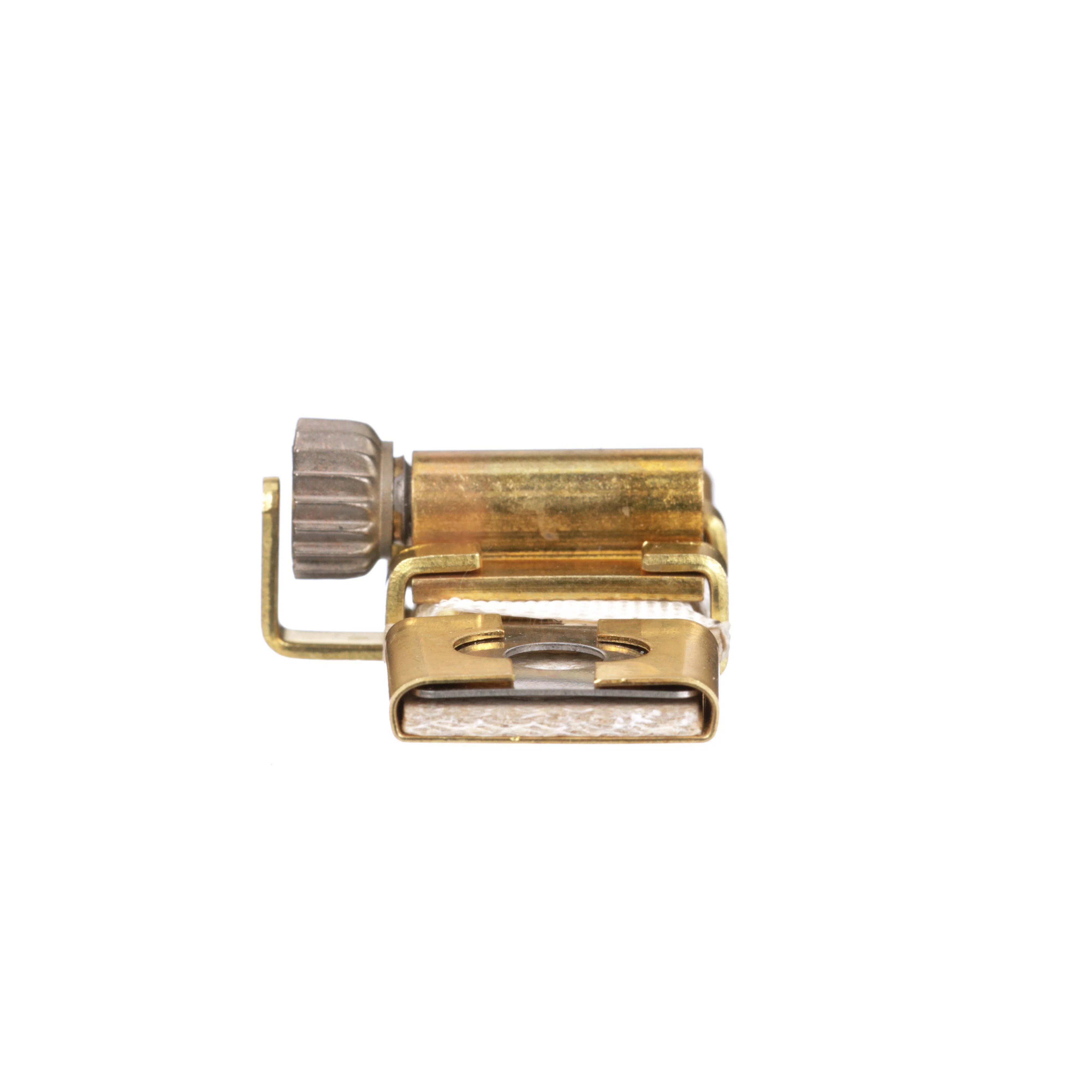

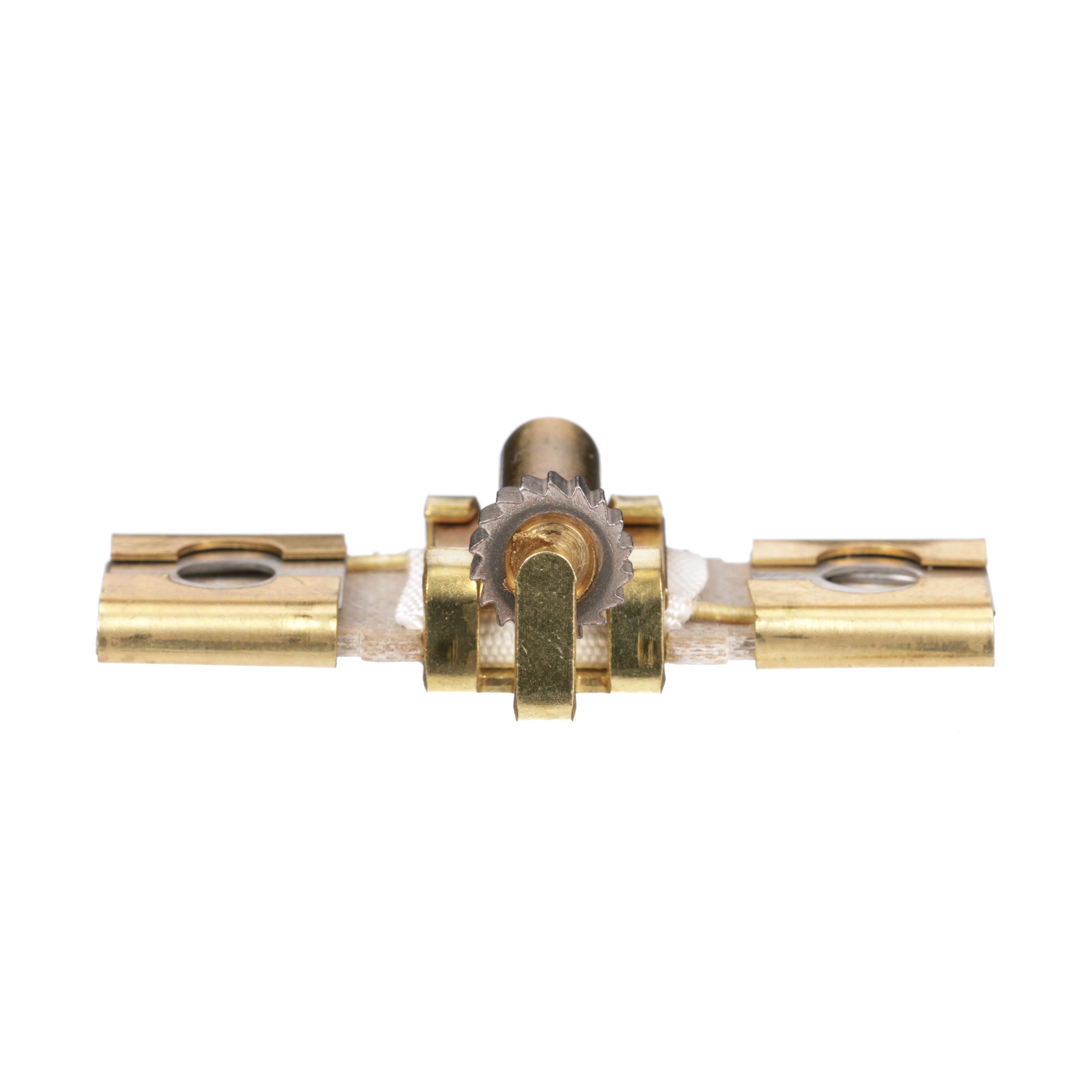

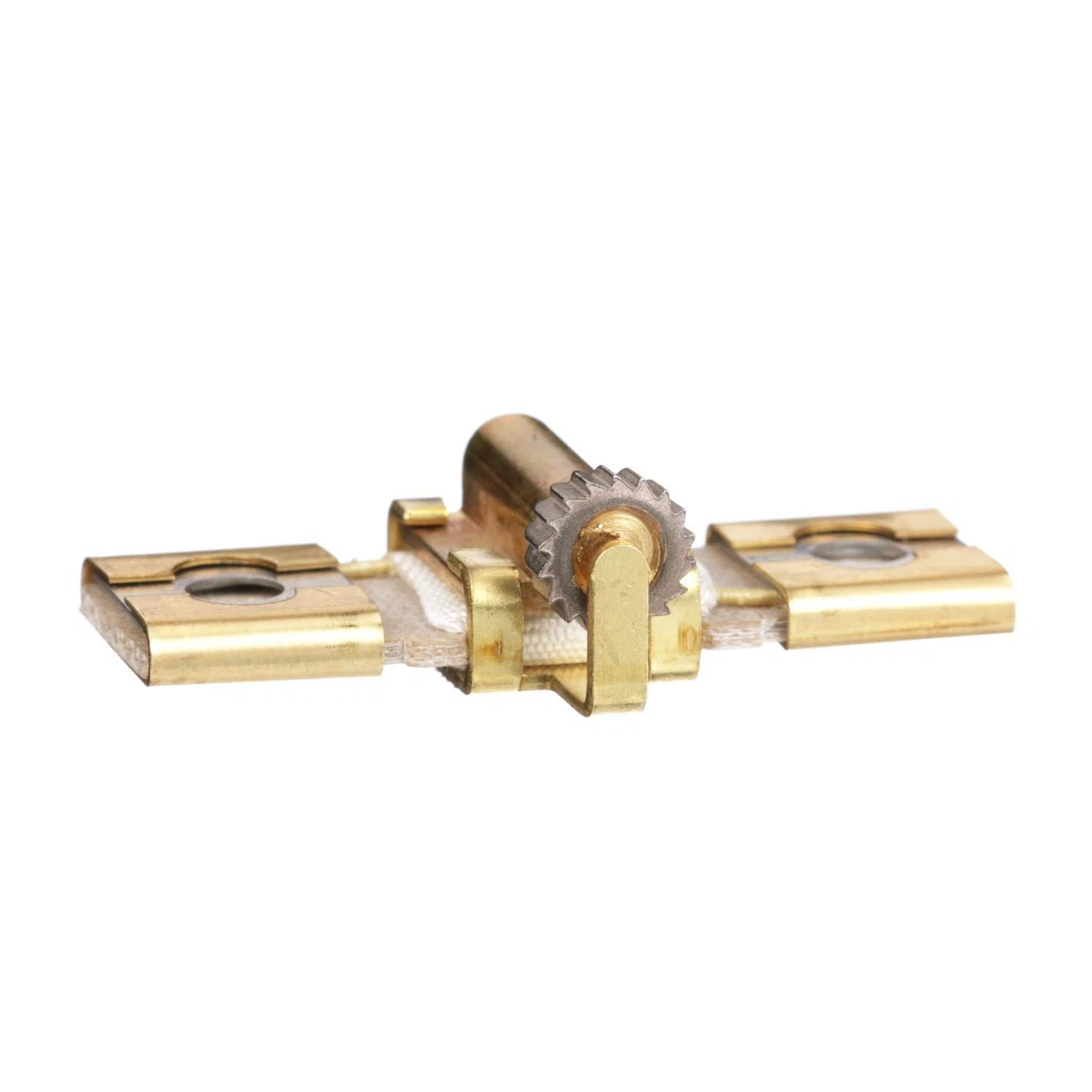

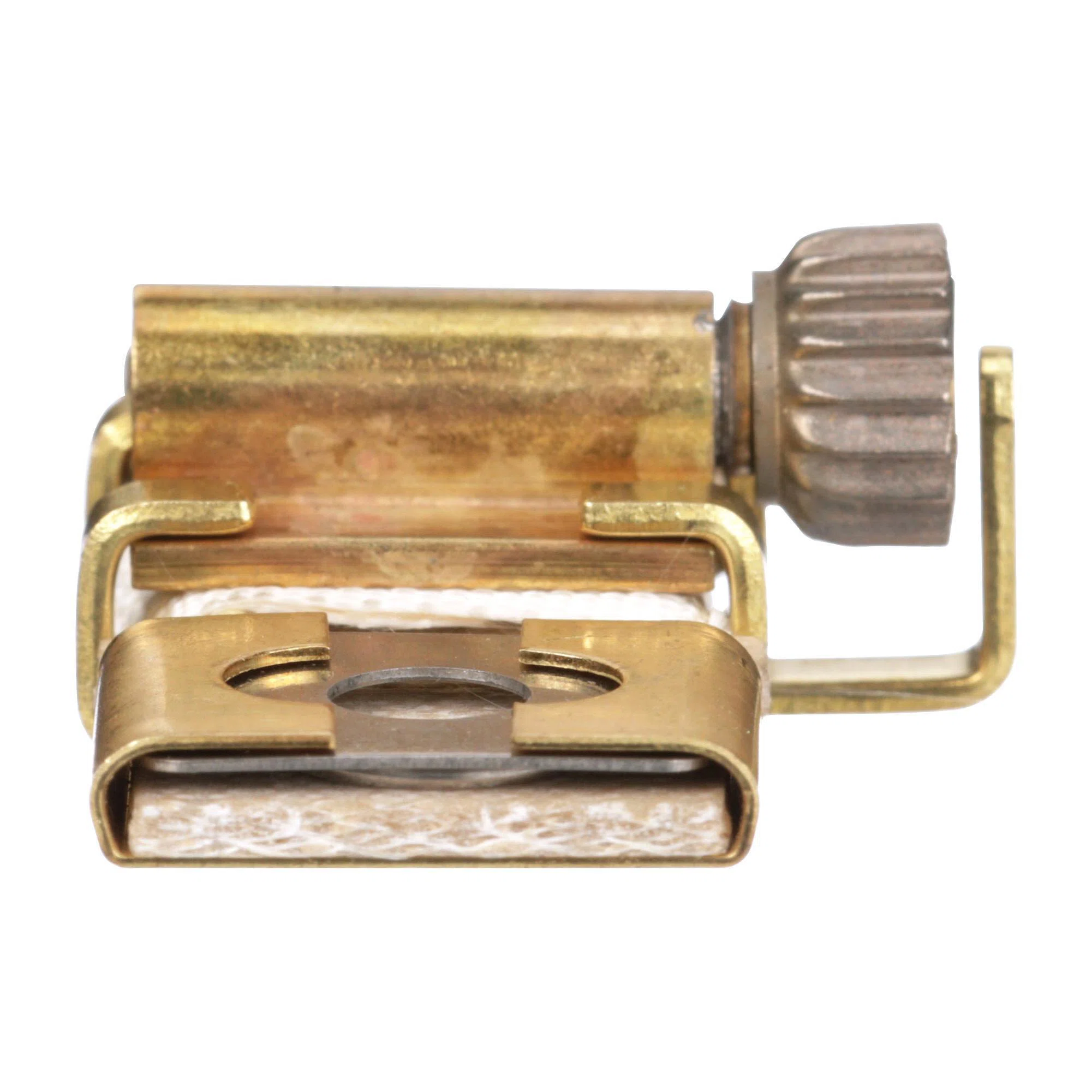

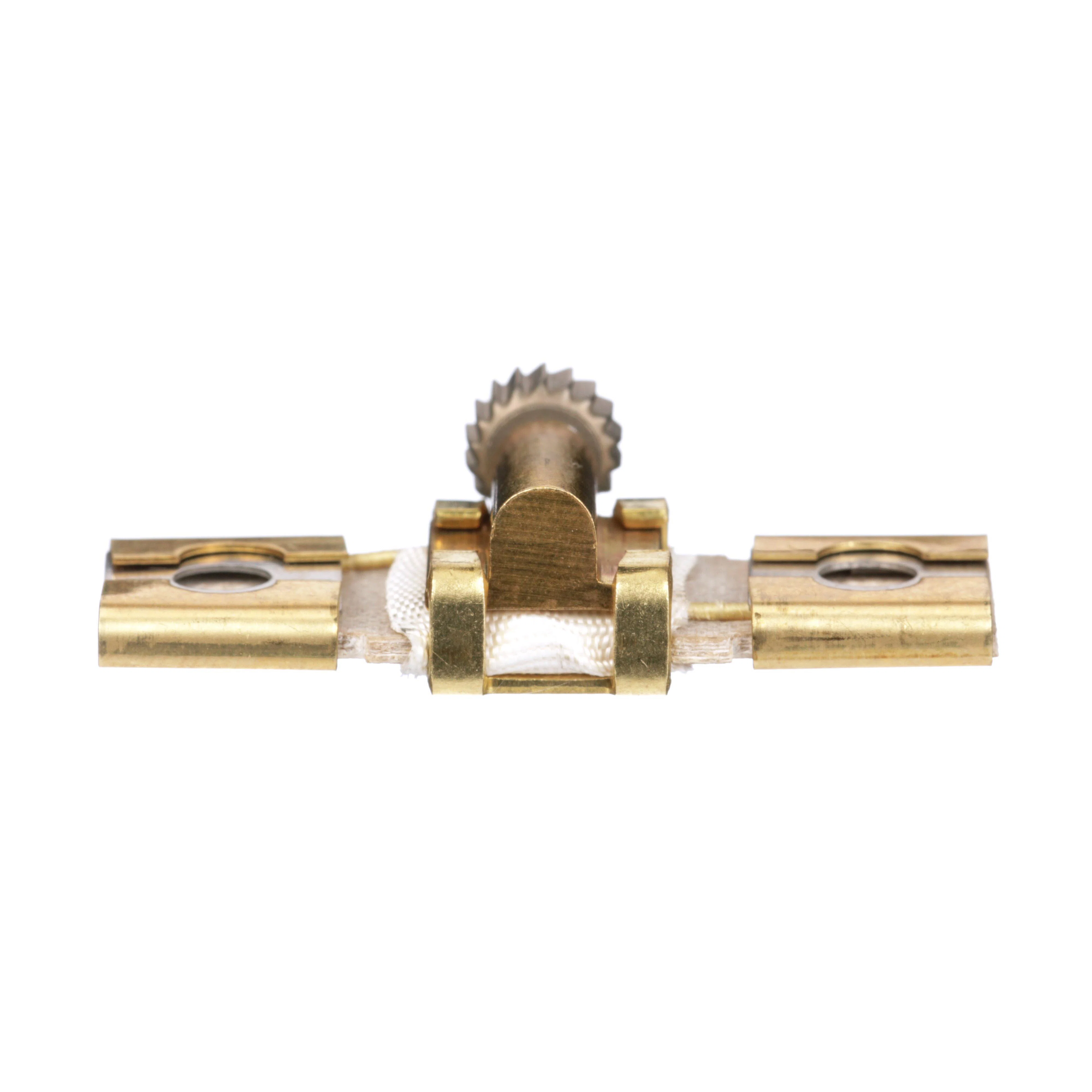

Schneider Electric one-piece thermal unit construction provides overload protection for the majority of motors. Repeated tripping does not affect the original calibration. Melting alloy thermal units are available in three designs: Standard Trip (Class 20), Slow Trip (Class 30) and Quick Trip (Class 10). This is a Type B, Class 20 thermal unit. This thermal unit shall be installed such that its catalog number is visible. Thermal unit selection charts are provided with all devices that require the selection of thermal units. This thermal unit is UL and CSA rated.

Manuals & Documentation

Features

  • Switch electric motors with variety of overload relays
  • 600V maximum
  • Simple catalog number for easy and fast ordering
Manufacturer Part Number B0.71
Brand Square D™
Manufacturer Schneider Electric
UPC 785901587248
EAN 0785901587248
Country Of Origin US
Mounting Type Plug-In
Temperature Rating 40 deg C
Voltage Rating 600 V AC
Size 4.8 in L x 3.5 in W x 0.8 in H
Alternative Part Number 8104209
Manufacturer Item Status Active
Country USA
Warranty 18 Months
Standards Approvals PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Application Thermal Overload Relays, Magnetic Motor Starters and Motor Controls Applications
Full Load Current 0.46 to 0.63 A
Trip Type Melting Alloy/Standard Class 40
