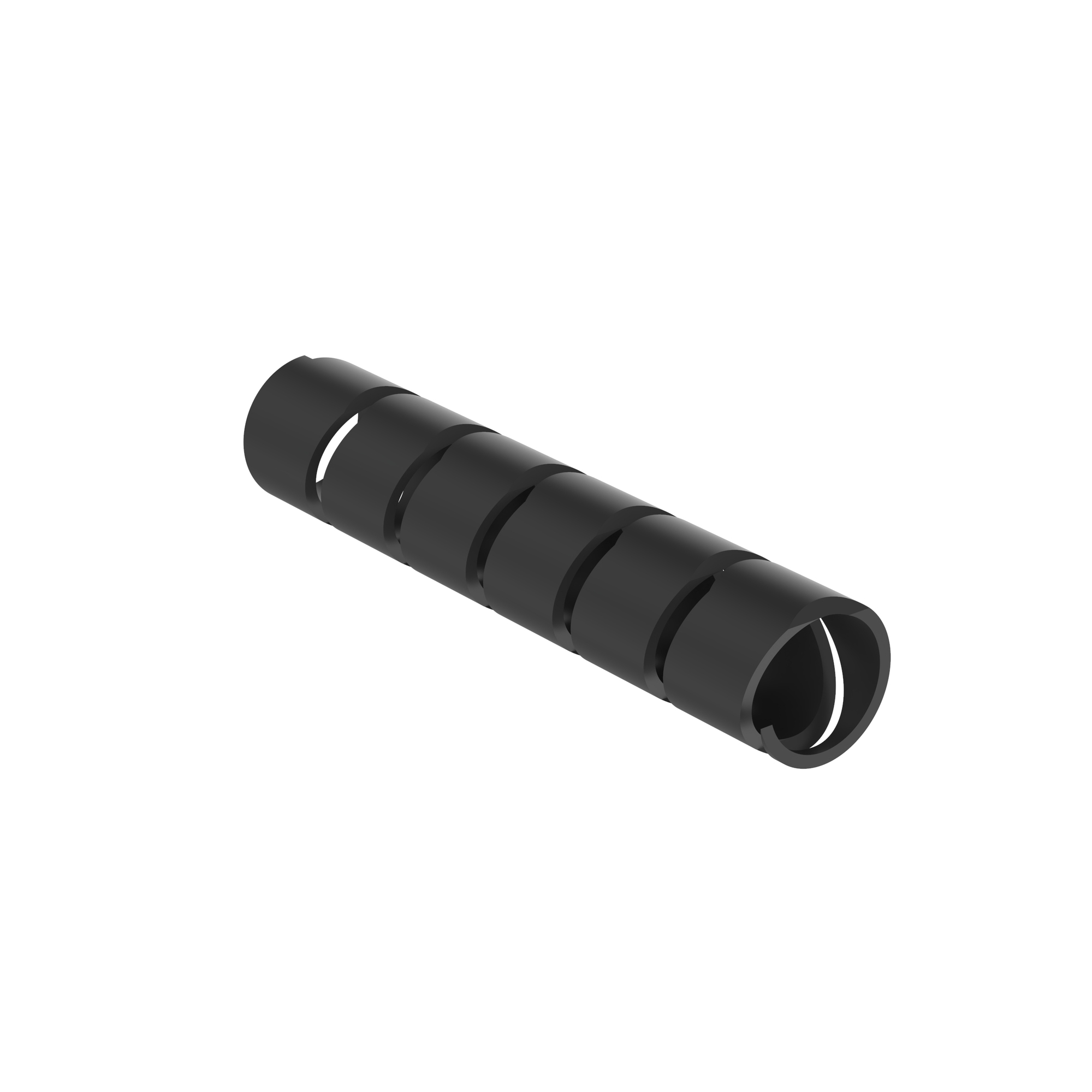

The T38F-C0 Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122F (50C). 0.38 (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125 to 3 (7.9 mm to 76.2 mm). Color Black.
Manuals & Documentation
| Catalog Number | T38F-C0 |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Black |
| Material | Polyethylene |
| Maximum Bundle Diameter | 3 IN |
| Standard | UL Recognized - E141152; UL94HB |
| UPC | 074983706068 |
| GTIN | 00074983706068 |
| Item Type | Spiral Wrap |
| Length | 100 |
| Minimum Bundle Diameter | 0.3125 IN |
| Outside Diameter | 0.38 |
| Temperature Rating | 122 °F |
| Wall Thickness | 0.055 IN |
| Cross Reference Products | ABBInstall SRPE-500-0-C|Morris 22114|Nsi SRPE-5000|Panduit T38F-C0|Panduit T38F-CO|ThomasBett SRPE-500-0-C |
