BURNDY

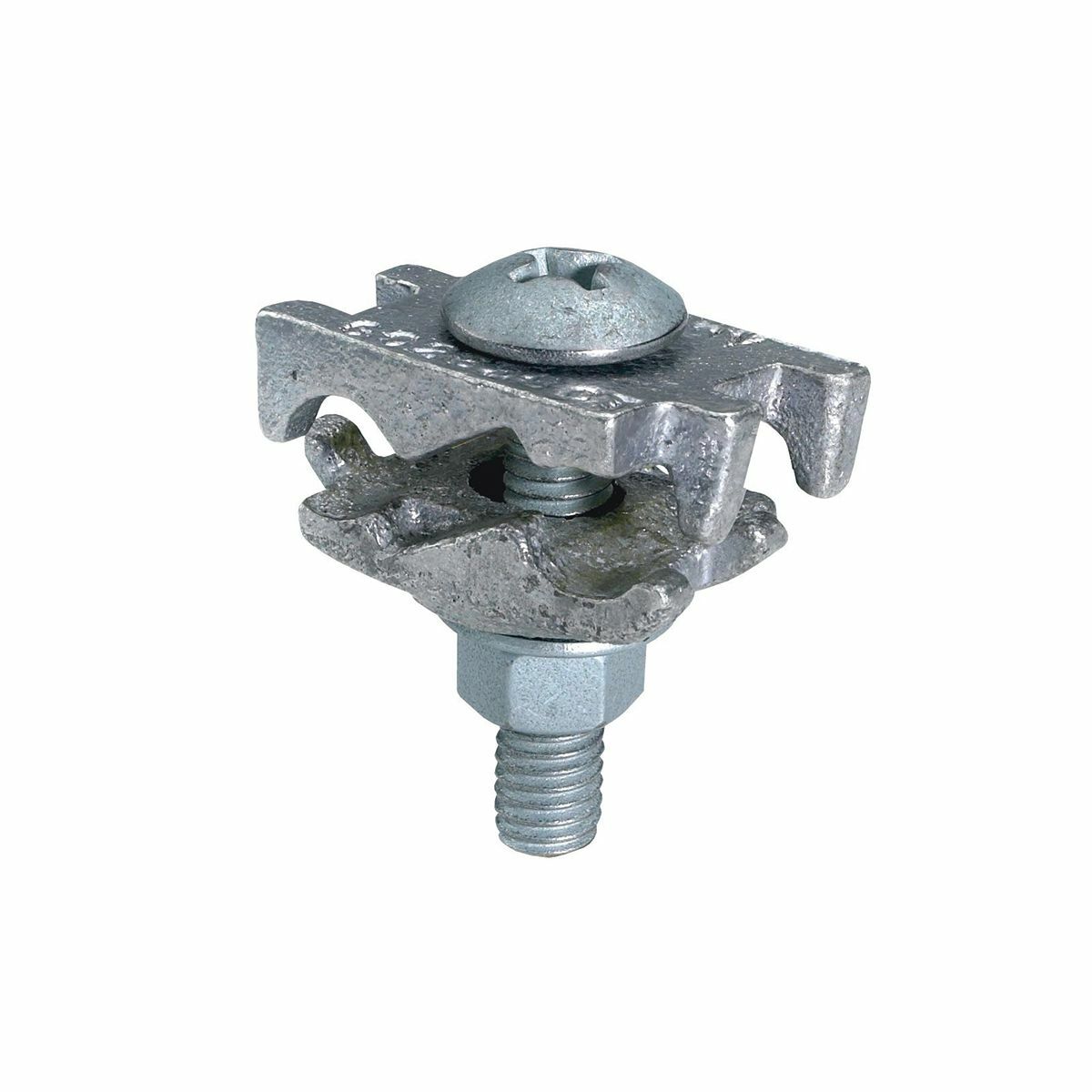

GC2929CT GC-CT Cable Tray Ground Clamp, 2/0 AWG to 250 kcmil Solid/Stranded Aluminum/Copper Conductor, Cast Copper Alloy, Tin Coated

MFR:
Burndy, a Hubbell affiliate
MFR #:
GC2929CT
UPC:
781810220580
Item #:
100768
Manuals & Documentation
Catalog Number GC2929CT
Manufacturer Burndy, a Hubbell affiliate
Brand BURNDY
Country of Origin Mexico
Made in USA No
Application For Direct Burial Applications In Concrete Or Earth And For Used With Aluminum Or Galvanized Steel Cable Tray
Material Copper Alloy
Special Features Features: Made Of Tin-Plated Cast Copper Alloy, It Accommodates Either One Or Two Conductors, Copper Or Aluminum Cable, In Addition To A Low Profile Head With A Deep Phillips Recess, The Galvanized Steel Bolt Has A Ribbed Neck Which Prevents Rotation During Installation When Installed In A 0.44 Diameter Hole, When Used On Aluminum Conductor, The Cable Must Be Scratch Brushed And PENETROX A Joint Compound Must Be Used On Cable And Connector, UL467 Listed For Copper Conductor Only, Suitable For Direct Burial In Concrete Or Earth, The Bolt Head Is Mounted On The Inside Wall Of Cable Tray To Avoid Damage To The Cable Insulation, May Be Used With Aluminum Or Galvanized Steel Cable Tray, Stud/bolt Size: 3/8-16, Installation Torque: 240 IN-LB, Width: 1.98 IN, Cross Flats: 0.56 IN, Height: 2.2 IN, Dimension B: 1.12 IN
Standard UL467
UPC 781810220580
GTIN 00781810220580
Item Type GC-CT
