SQUARE D

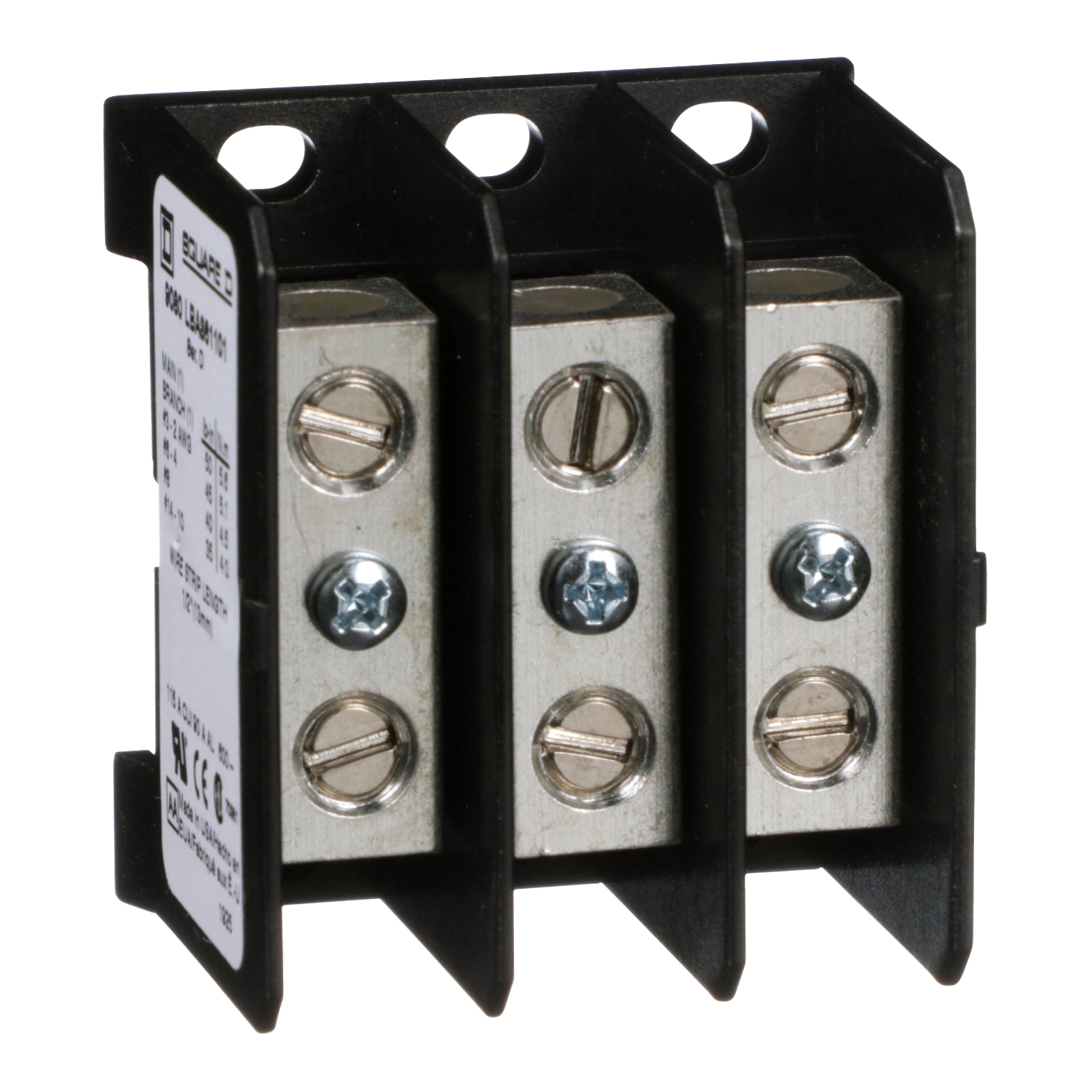

9080LBA361101 TeSys Linergy Linergy Miniature Multi-Pole Power Distribution Block, 600 V AC/DC, 90/115 A, 3 Poles, 14 to 2 AWG Wire, Thermoplastic

MFR:
Schneider Electric
MFR #:
9080LBA361101
UPC:
785901097426
Item #:
100729

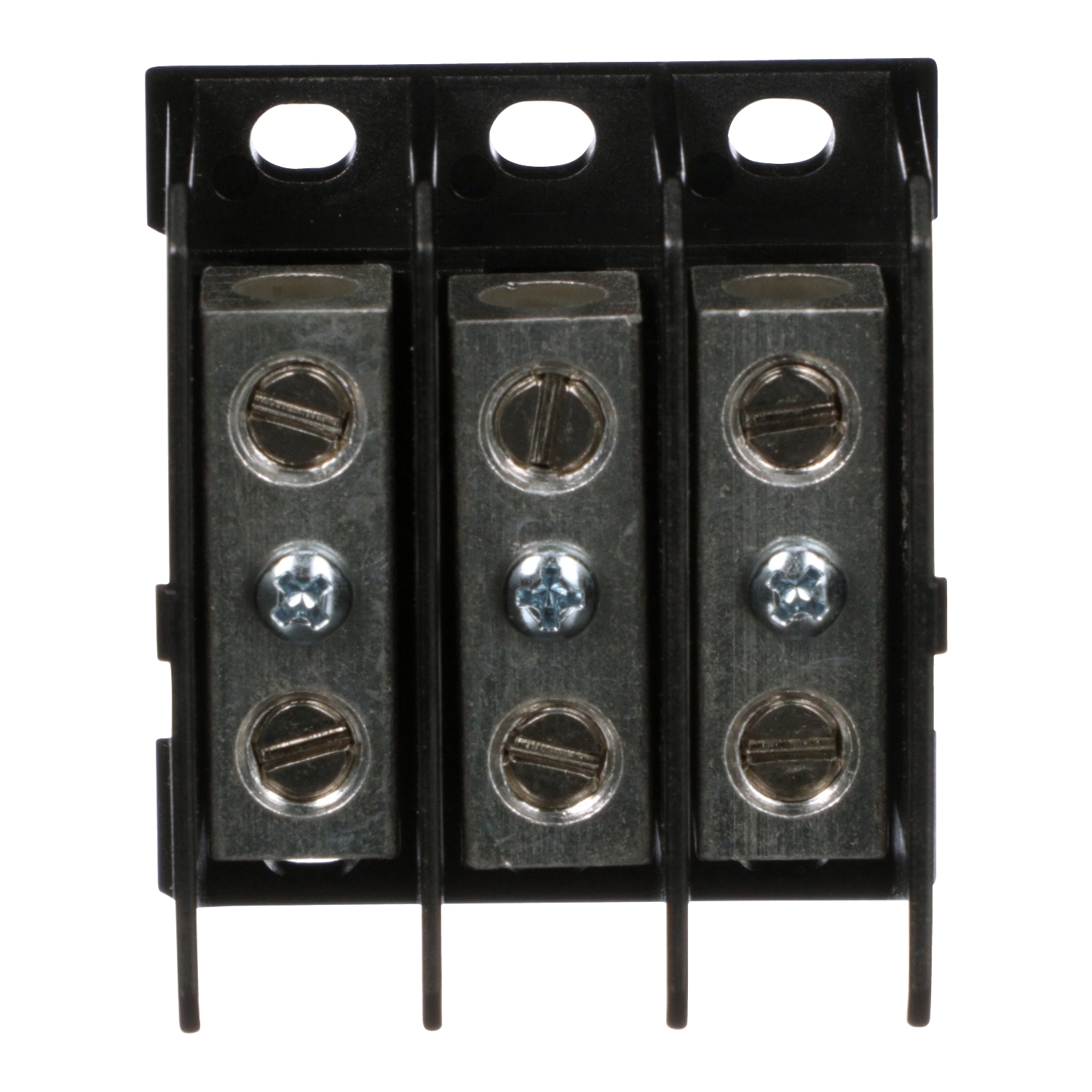

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #14 to #2 copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wires. The lugs are made of aluminum. The lugs are rated for 115 amperes with copper wire and 90 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBA361101
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes

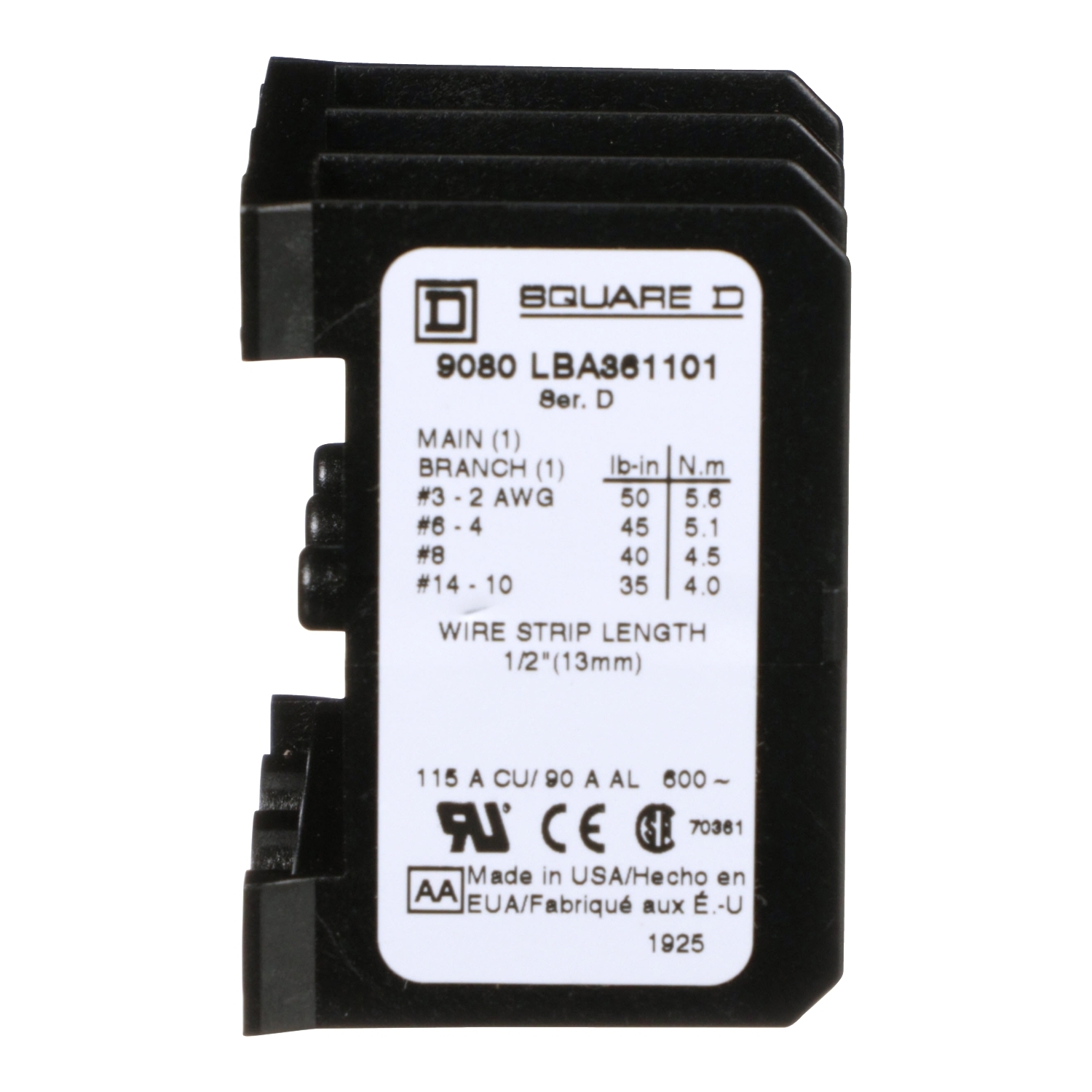

Connection Tin plated aluminium lugs;Line lug 50 lbf.in AWG 3...AWG 2 copper or aluminium;load lug 35 lbf.in AWG 14 copper;line lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;line lug 40 lbf.in AWG 8 copper or aluminium;line lug 35 lbf.in AWG 12...AWG 10 copper or aluminium;line lug 35 lbf.in AWG 14 copper;load lug 50 lbf.in AWG 3...AWG 2 copper or aluminium;load lug 45 lbf.in AWG 6...AWG 4 copper or aluminium;load lug 40 lbf.in AWG 8 copper or aluminium;load lug 35 lbf.in AWG 12...AWG 10 copper or aluminium
Material Thermoplastic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372979&lang=en-us
UPC 785901097426
GTIN 00785901097426
Item Type Miniature Power Distribution Block;9080LB13
Width 2.12
Width UOM Inch
Height 2.29
Height UOM Inch
Depth 1.62 IN
